B-63874EN-1/02 2.MEASUREMENT CYCLE

- 165 -

2.5 MEASURE (PROBE Z-AXIS DIRECTION)

2.5.1 End Face (X-axis Direction) Measurement

The position of an end face in the X-axis direction is measured.

When you select "X-AXIS DIRECTION MEASUREMENT (PROBE

Z-AXIS) on the post-machining inspection menu selection screen of

the measurement cycle, the following screen appears:

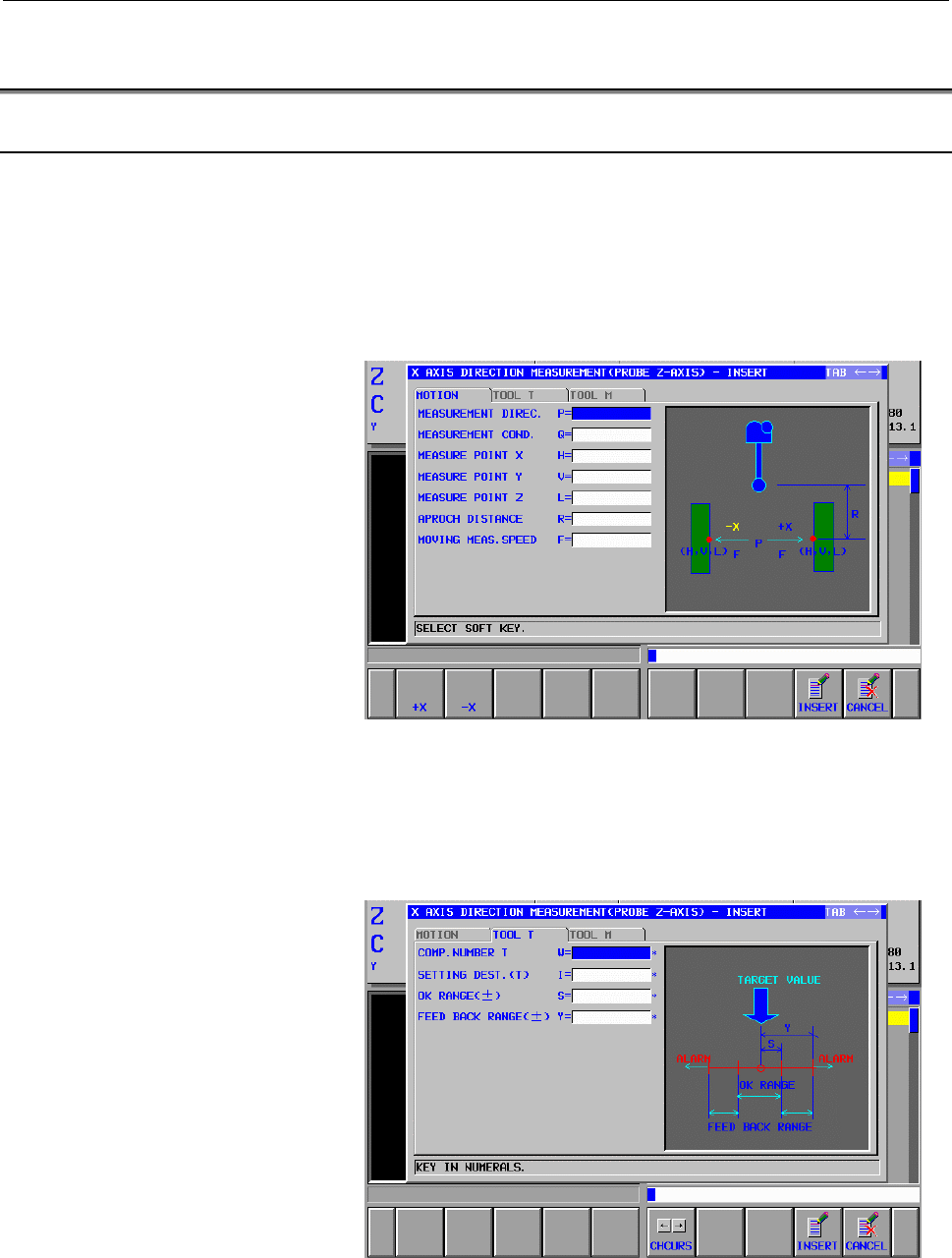

Measurement motion screen

The detailed descriptions of the input items are the same as for "X-

AXIS DIRECTION WORK SETUP (PROBE Z-AXIS)".

Input screen for automatic tool offset value setting (turning side)

This screen enables specification for setting a measured value as a

tool offset value on the turning side.
