2.MEASUREMENT CYCLE B-63874EN-1/02

- 192 -

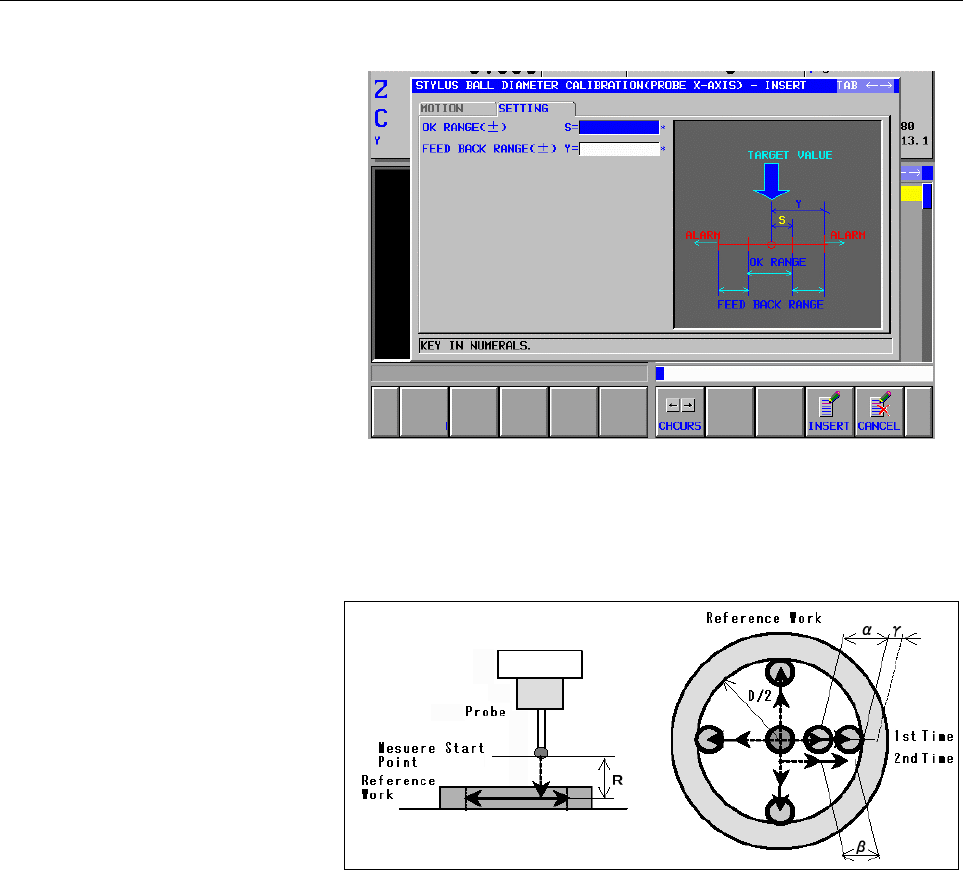

Setting screen

The displayed items are the same as for "Stylus Ball Diameter

Measurement" of "CALIBRATION (PROBE Z-AXIS DIRECTION)".

Measurement motion

Measurement motion is described below.

<1> The reference workpiece is placed on the table, then this

measurement cycle is executed.

<2> When this measurement cycle is executed, a rapid movement is

first made from the current position to the point specified by

("APROCH CENTER PT.Y" + ("BASE WORK RADIUS D"/2 -

α - stylus radius r)) in the Y-axis direction and by "APROCH

CENTER PT.Z" in the Z-axis direction.

<3> A rapid movement is made in the -X-axis direction to the point

("HEIGHT OF MEAS. PT." + "APROCH DISTANCE").

<4> A movement is made in the -X-axis direction to a point of

"HEIGHT OF MEAS. PT." at feedrate fb.

<5> In the range (α + γ), a movement is made in the +Y-axis

direction at feedrate f. (First measurement)

<6> After a rapid return movement is made by β, a rapid movement

is made to the Y coordinate specified by "APROCH CENTER

PT.Y", then a movement is made at feedrate fa in the -Y-axis

direction by the distance ("BASE WORK RADIUS D"/2 - α -

stylus radius r).
