B-63874EN-1/02 2.MEASUREMENT CYCLE

- 121 -

2.3.2 Turning Tool Measurement

When the turning tool is oriented in the Z-axis direction, its figures in

the Z-axis and X-axis directions are measured.

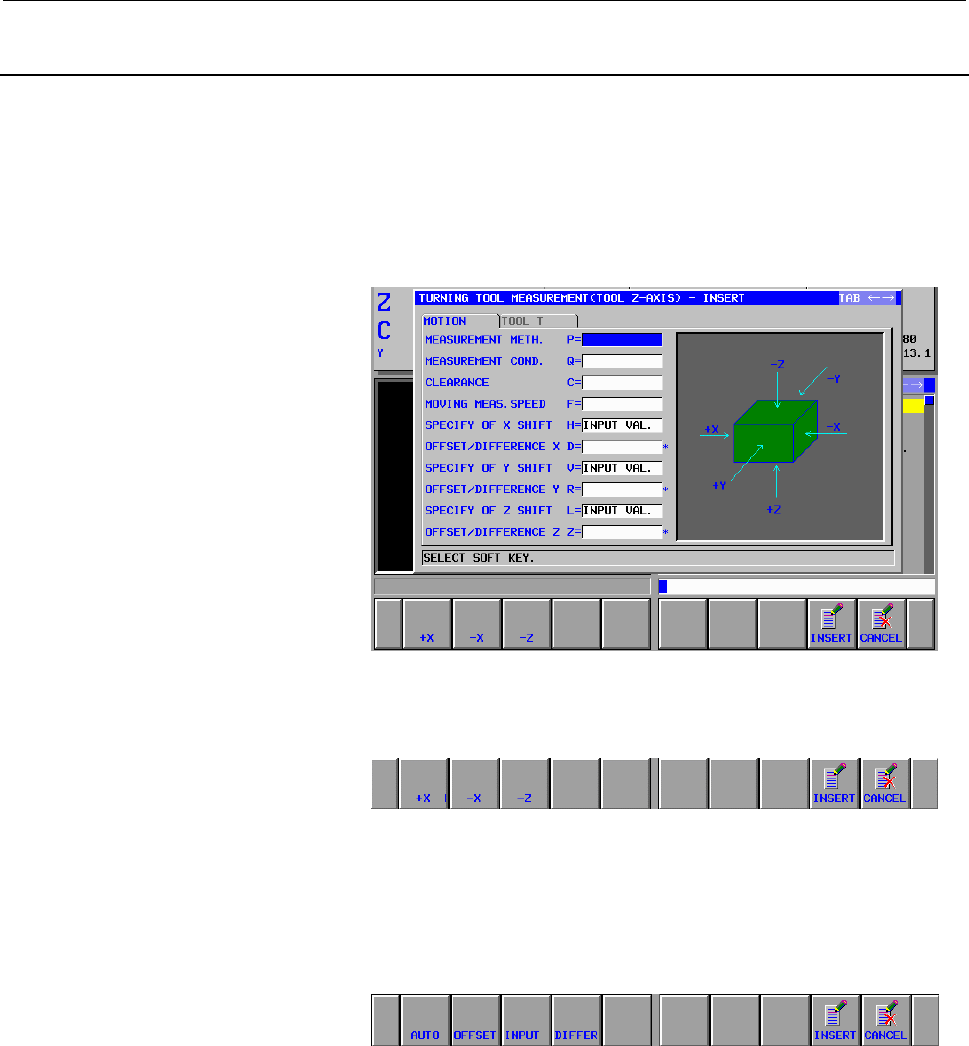

Measurement motion screen

When you select "TURNING TOOL MEASUREMENT (TOOL Z-

AXIS)" on the tool measurement menu selection screen of the

measurement cycle, the following screen appears:

- MEASUREMENT METH.

Specify an axis direction for measurement.

Select a desired axis direction from the following soft keys:

- SPECIFY OF X SHIFT

Select a method of specifying the shift amount from the X coordinate

of the touch sensor position for tool measurement to the X coordinate

of the tool measurement position.

By default, [AUTO] is selected.

Choose from the soft keys.

When [AUTO] is selected, the approach position in the X-axis

direction at the time of tool measurement is automatically determined

by referencing the tool offset value. (For details, see "Measurement

motion" described later.)

When [OFSET] is selected, the tool to be measured is approached at

the position shifted by the specified tool offset value from the X

coordinate of the touch sensor position.

When [INPUT] is selected, the tool is approached at the position

shifted by the value input in the next item "OFFSET/DIFFERENCE

X" from the X coordinate of the touch sensor position.

When [DIFFER] is selected, the tool is approached at the position

shifted by the specified tool offset value added to the value specified
