2.MEASUREMENT CYCLE B-63874EN-1/02

- 150 -

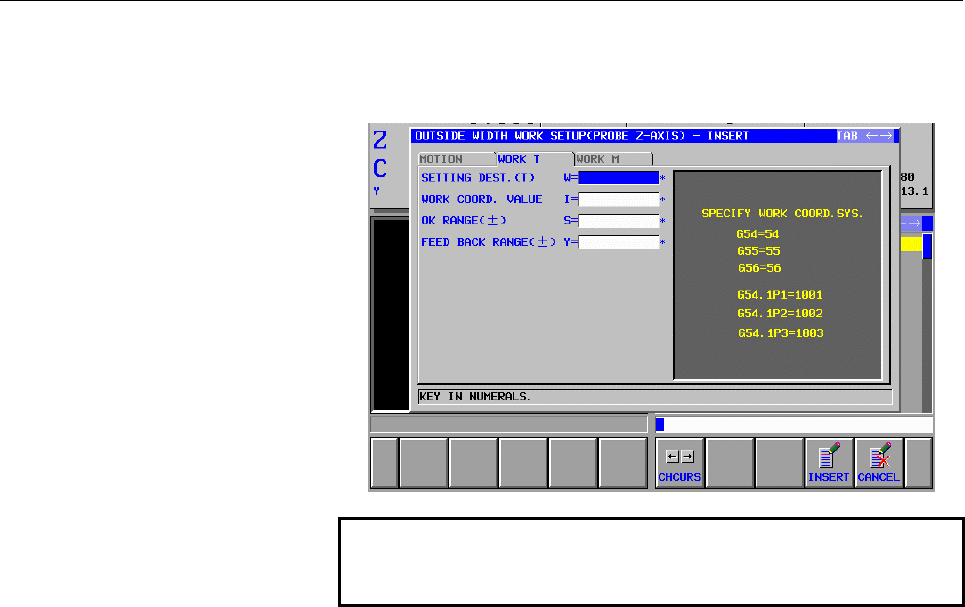

Input screen for automatic workpiece offset value setting (turning side)

This screen enables specification for setting a measured value as a

workpiece origin offset value on the turning side.

NOTE

With the CNC for a machining center, the "WORK

T" screen is not displayed.

- OK RANGE (±)

Specify an allowable range of errors obtained from measurement.

If the difference between the center coordinate obtained from

measurement and the correct value (input value "CENTER POINT X"

or "CENTER POINT Y") is within this allowable range, the absence

of errors is assumed, and no setting is performed as a workpiece

origin offset value.

Enter a numeric value.

- FEED BACK RANGE (±)

If an error obtained from measurement is not within the OK range but

is within this feedback range, the measured value is set in the setting

destination.

If an error obtained from measurement exceeds the feedback range, an

alarm is issued.

Enter a numeric value.

The descriptions of the other items are the same as for "X-AXIS

DIRECTION WORK SETUP (PROBE Z-AXIS)".

Processing when the OK range and the feedback range are 0

The same processing as for "X-AXIS DIRECTION WORK SETUP

(PROBE Z-AXIS)" is performed.
