5.SUPPORTING TOOL MANAGEMENT B-63874EN-1/02

- 278 -

5.1 TOOL MEASUREMENT (MANUAL MEASUREMENT)

When a tool measurement result is fed back to a toll offset value,

specifying either of the following items enables the measurement

result to be fed back.

- Offset number

- Offset type

5.1.1 Selecting the TOOL MEASUREMENT Screen

<1> When the machine is in the manual mode, press the [MESURE]

soft key.

<2> On the "MEASURE" tab, select TOOL MEASUREMENT.

5.1.2 Displays on the Screen

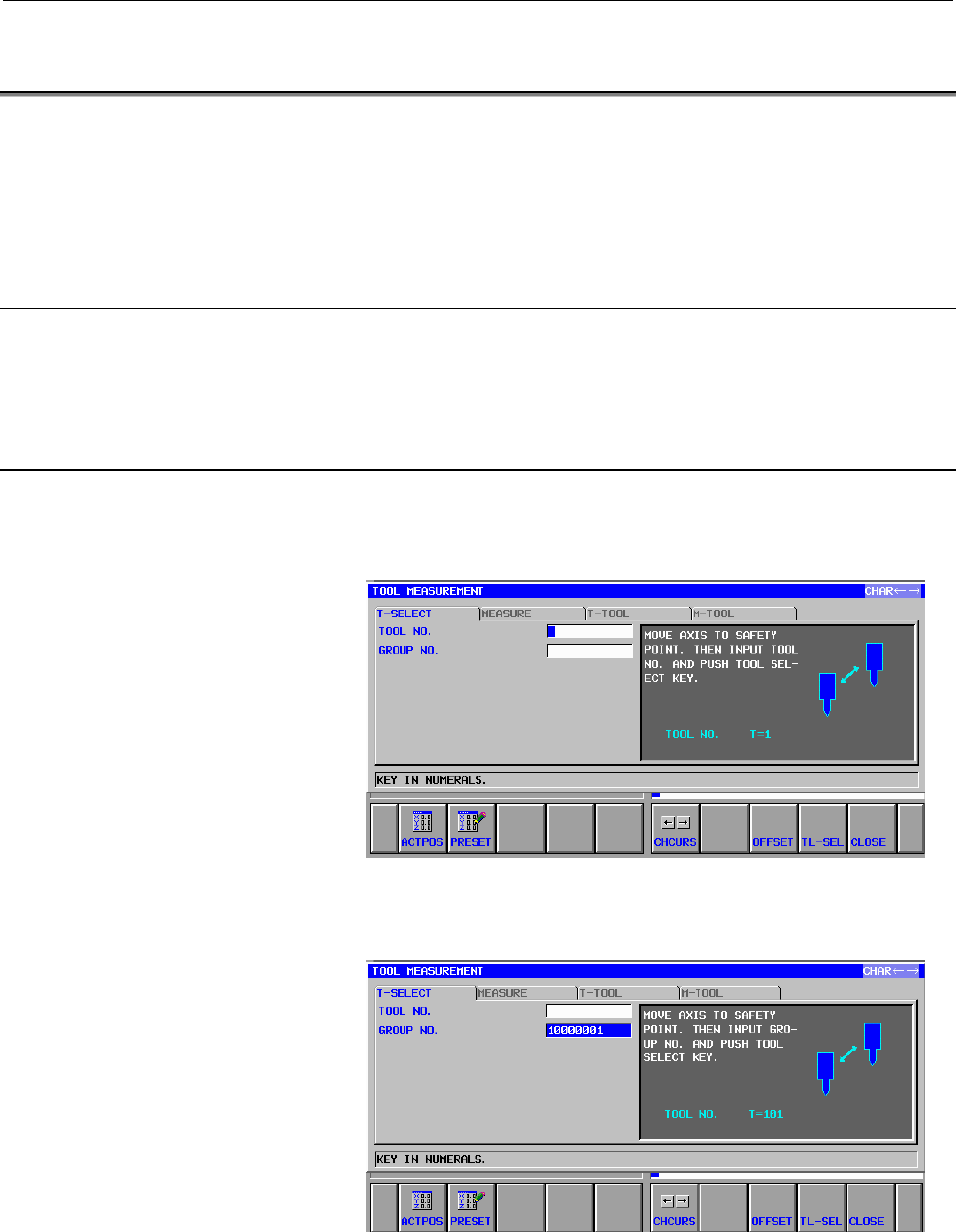

T-SELECT screen

The tool number corresponding to the current spindle position is

displayed on the guide chart.

Specify "GROUP NO." and press the [TL-SEL] soft key. The tool is

exchanged, and the tool number of the newly selected tool is

displayed.

- TOOL NO.

The function of this item is the same as when tool management is

disabled.
