B-63874EN-1/02 2.MEASUREMENT CYCLE

- 203 -

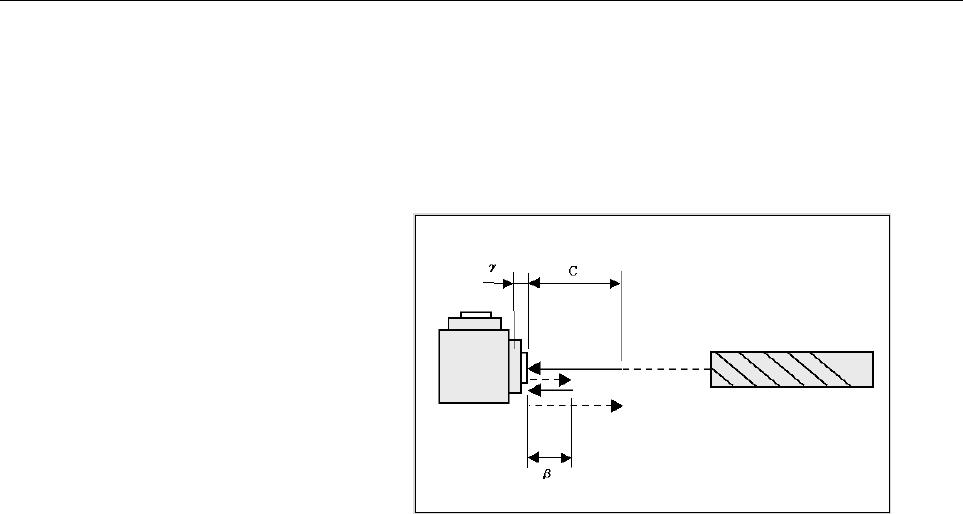

Measurement motion

Measurement motion is described below.

- Measurement of an offset value in the -X-axis direction (measurement of an offset

value in the tool length direction) - When [AUTO] is selected in "SPECIFY OF X, Y,

and Z SHIFT"

The measurement motion described below is made when [AUTO] is

selected in all input items of “SPECIFY OF X SHIFT”, “SPECIFY

OF Y SHIFT”, and “SPECIFY OF Z SHIFT”.

<1> A rapid movement is made from the current position to the

approach point (Y coordinate,Z coordinate).

Here, the approach point (Y coordinate,Z coordinate) represents

the Y and Z coordinates of the "sensor position for measurement

in the -X direction" of the touch sensor position in the specified

measurement condition.

<2> In the -X-axis direction, a rapid movement is made to the

approach point (X coordinate).

Here, the approach point (X coordinate) represents (the X

coordinate of the "sensor position for measurement in the -X

direction" of the touch sensor position in the specified

measurement condition + "CLEARANCE" + OFS

<3> In the range from the approach point to ("CLEARANCE" + γ), a

measurement is made at feedrate f. (First measurement)

<4> Next, a rapid return movement is made by β, and a measurement

is made in the range from that position to (β + γ) at the specified

feedrate F. (Second measurement)

<5> Then, a rapid return movement is made by ε in the +X-axis

direction.
