B-63874EN-1/02 2.MEASUREMENT CYCLE

- 149 -

2.4.6 Outside Width Measurement

When the probe is oriented in the Z-axis direction, the center position

of a projection width is measured.

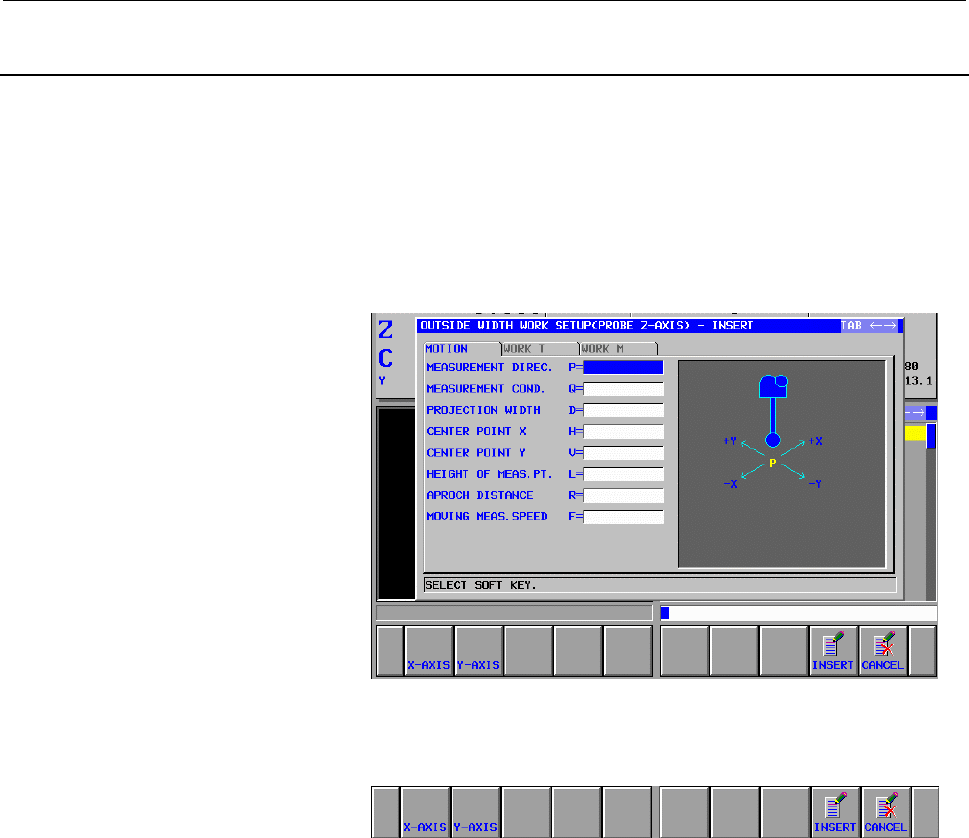

When you select "OUTSIDE WIDTH WORK SETUP (PROBE Z-

AXIS)" on the centering menu selection screen of the measurement

cycle, the following screen appears:

Measurement motion screen

- MEASUREMENT DIREC.

Specify an axis direction for measurement.

Select a desired axis direction from the following soft keys:

- PROJECTION WIDTH

Enter the correct dimension of the projection width.

Enter a numeric value.

- CENTER POINT X, Y

Enter the correct center coordinate of the projection.

For the direction other than the measurement direction, enter the

coordinate of a measurement point.

Enter numeric values.

The descriptions of the other input items are the same as for

"OUTSIDE DIAMETER WORK SETUP (PROBE Z-AXIS)".
