Measurement Screen

Set the item below in order.

Operating Measurement

Input Item Meanings

Measure Plane Plane to measure.

Select from [X-Y] and [Y-Z] soft key.

Measure Condition Measurement condition (Group number of setup

measurement condition)

Measurement

Direction

Measurement direction of 1

measurement.

When selecting X-Y by “measurement direction”, only

[+X][-X][+Y][-Y] soft keys are displayed to select.

When selecting Y-Z by “measurement direction”

[+Y][-Y][+Z][-Z] soft keys are displayed to select.

Measurement

Direction

Measurement direction of 2

point measurement.

A same value of 1

measurement direction is

displayed.

Measurement

Direction

Measurement direction of 3

point measurement.

Measurement

Direction

Measurement direction of 4

point measurement.

A same value of 3

measurement direction is

displayed.

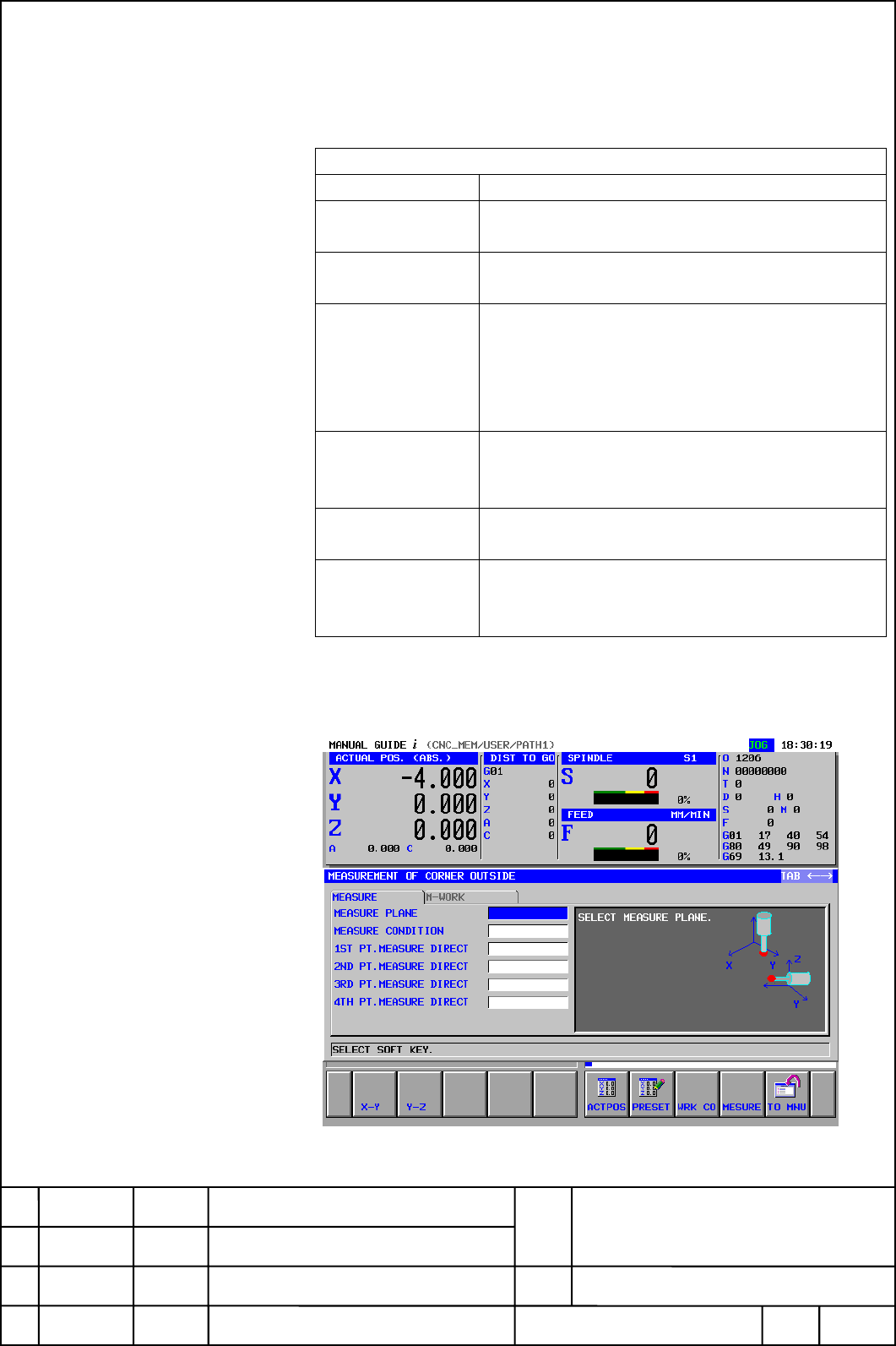

<1> Selecting [MEASUREMENT OF CORNER OUTSIDE] at selection

screen of setup menu to display a below screen.

At this input item, plane to measure is selected by a soft key.
