With a manual measurement completed, measured result is cleared

when enter the measure plane by pressing a soft key.

Press [MEASURE] soft key with a cursor pointing a measure plane, the

following warning is displayed in a red.

English：「MOVE CURSOR TO “MEASURE DIRECT” OF MEASURE

POINT.」

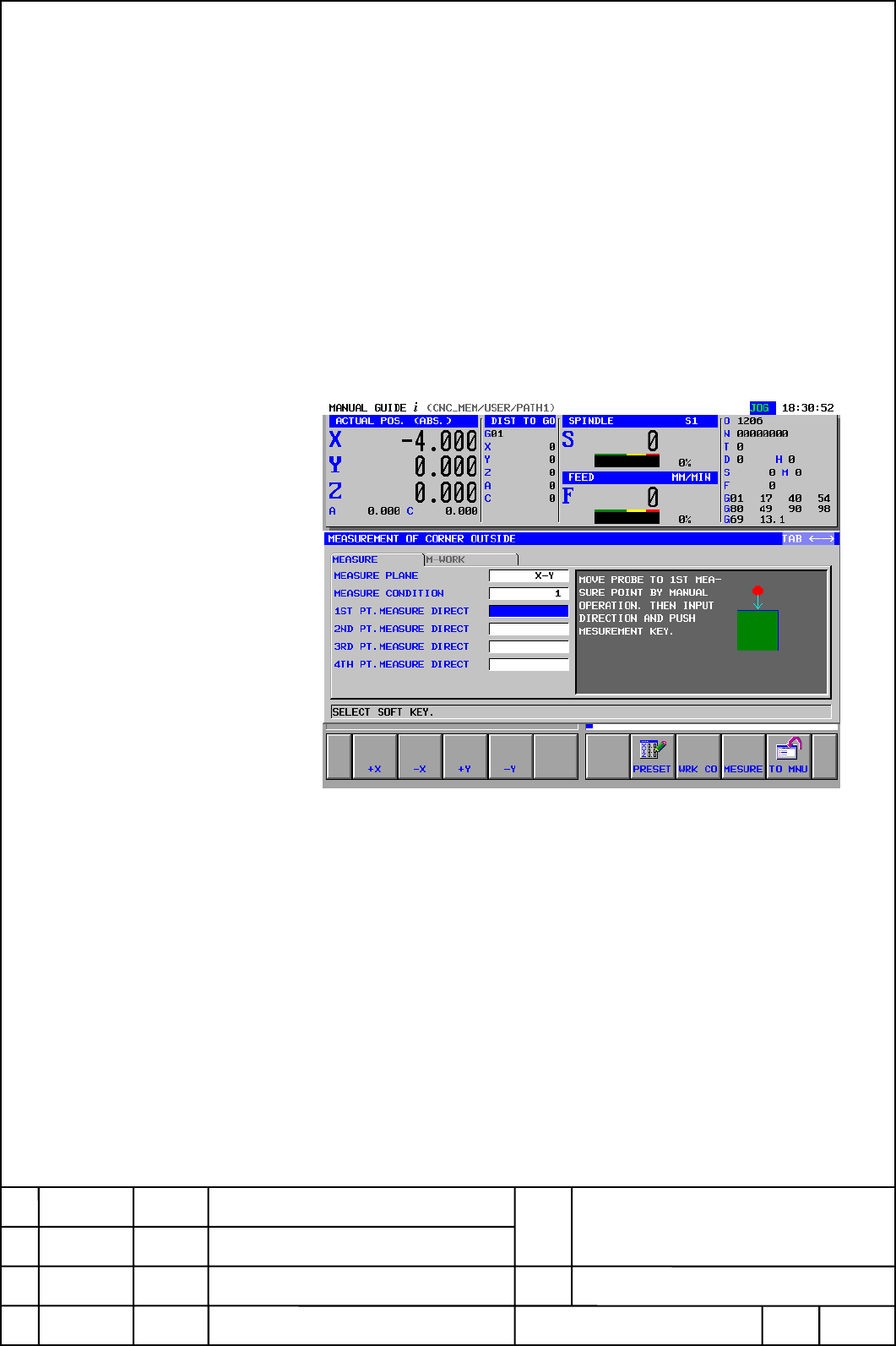

<2> Input a measurement condition by numeral with MDI key to

display the screen as below.

At this input screen, 1

point and 3

point of measurement are to be

set by a soft key.

Measurement direction of 2

point is set the same value as 1

point

measurement direction.

Measurement direction of 4th point is set the same value as 3

point

measurement direction.

When 2

point measurement direction is set with leaving 1

point

blank, 1

point measurement direction is set the same value as 2

point.

When 4

point measurement direction is set with leaving 3

point

blank, 4

point measurement direction is set the same value as 3

point.
