<2> Set a highest possible velocity loop gain according to Subsec.

3.3.1, "Gain Adjustment Procedure."

TCMD

ERR

TCMD fluctuation

is eliminated.

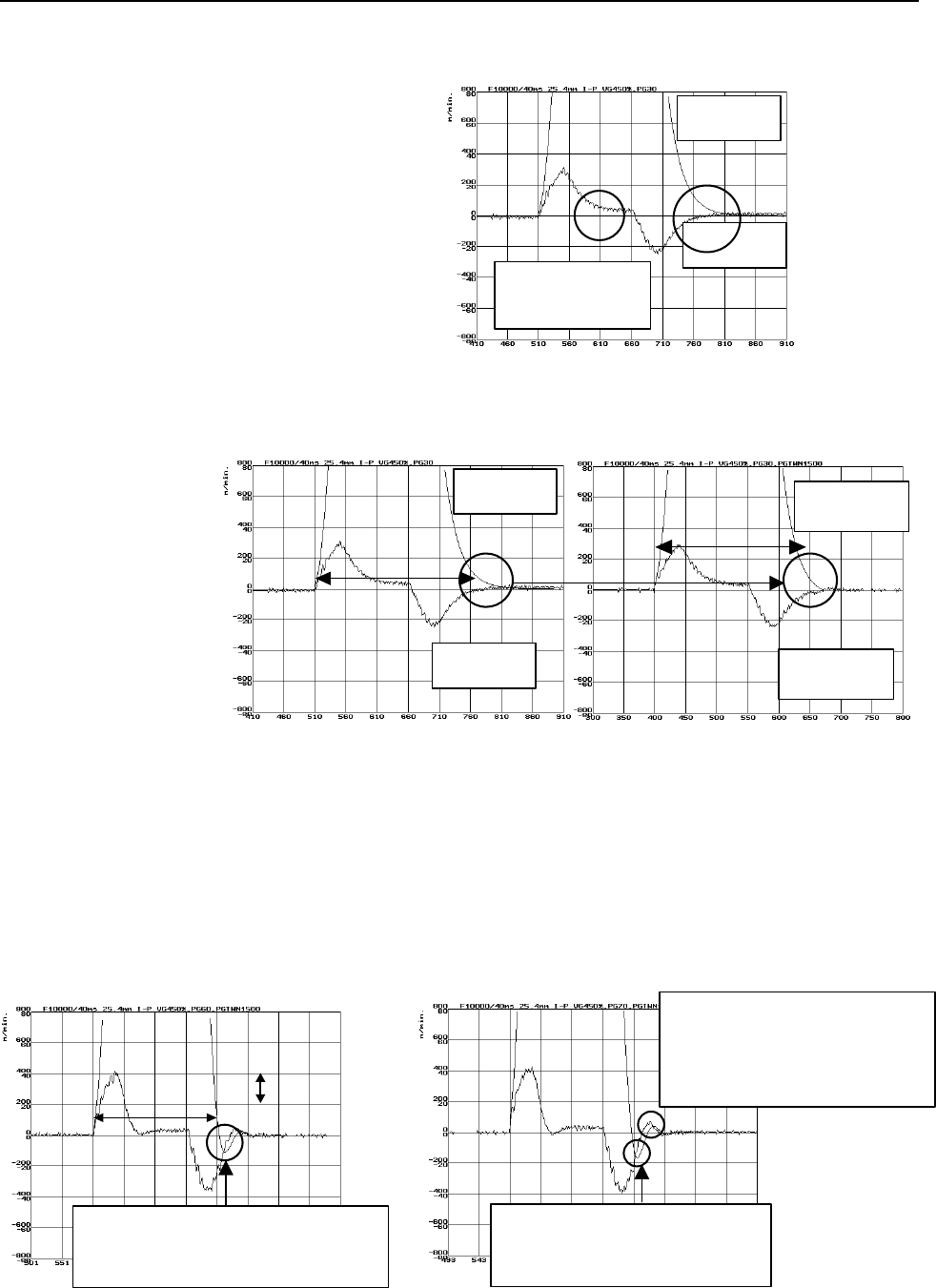

Fig. 3.3.2(c) After velocity loop gain adjustment

<3> Set a switch speed of 1500 (15 min

-1

) with the position gain

switch function (see Subsec. 4.8.1).

TCMD

ERR

240 ms

TCMD

ERR

270 ms

Fig. 3.3.2(d) Position gain switch function

<4> Set a highest possible position gain. While viewing the ERR

waveform (VCMD waveform), make an adjustment so that the

overshoot value lies within a requested precision. After setting a

position gain, perform rapid traverse for a long distance to check

that low-frequency vibration due to an excessively increased

position gain does not occur. If the set position gain is too high,

vibration after an overshoot exceeds a requested precision. An

overshoot itself can be suppressed to some extent by adjustment

of <5>.

TCMD

ERR

200 ms

When a precision of 10 µm is

requested, adjust the overshoot value

to within 10 µm.

If the position gain is too high,

the requested precision 10 µm is

exceeded.

large vibration occurs in a

return movement. Suppress the

vibration to within 50% of the

requested precision.

Fig. 3.3.2(e) Adequate position gain Fig. 3.3.2(f) Excessively high position gain
