4.SERVO FUNCTION DETAILS B-65270EN/05

- 362 -

(b) Graph window

• Data measurement and display

- Horizontal axis time mode

Ordinary mode, first-order differential mode, second-order

differential mode (YT mode)

Feed smoothness measurement mode (DXDY mode)

Tangential velocity display mode (XTVT mode)

Synchronization error measurement mode (Synchro mode)

- XY mode (also XYR mode for polar coordinate conversion)

- Arc path error expansion mode (Circle mode)

- Arbitrary figure path error expansion mode (Contour mode)

- Frequency spectrum analysis mode (Fourier mode)

- Velocity loop frequency characteristic measurement mode

(Bode mode)

Data can be measured on both servo and spindle sections (even if

mixed)

* For non-αi series spindles, restrictions are placed on

measured data.

Simultaneous measurement is possible on up to six channels.

The fastest sampling period coincides with the current control

period. (For servo axes only)

Displayed data can be printed. Bit maps can also be acquired via

the clip board.

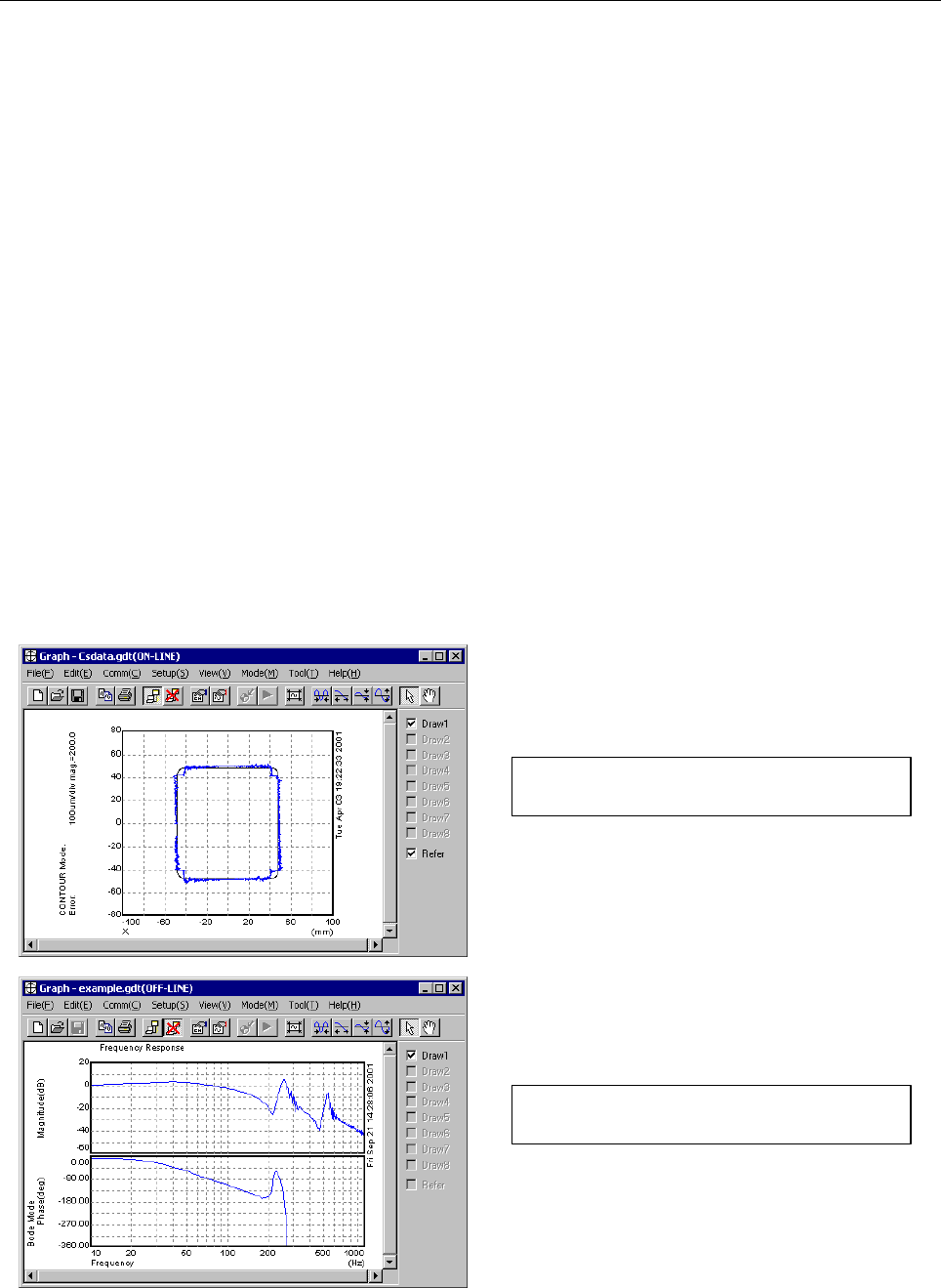

Example of measuring contour errors under Cs

contour axis control

Example of measuring velocity loop frequency

characteristics

Graph window (example)
