B-65270EN/05 4.SERVO FUNCTION DETAILS

- 335 -

1721 (FS15i)

Damping compensation gain Kc (ABPGL)

2036 (FS30i, 16i)

Set this parameter for the main axis only.

[Valid data range] 0 to 32767

[Setting method] Kc × 32768 (0 ≤ Kc < 0.5)

A function bit is not supported for the damping compensation

function; the damping compensation function is enabled at all times.

When 0 is set in this parameter, the damping compensation function is

ineffective.

1721 (FS15i)

Damping compensation phase coefficient

α (ABPHL)

2036 (FS30i, 16i)

Set this parameter for the sub-axis only.

[Valid data range] 51 to 512

[Setting method] α × 512 (0.1 ≤ α ≤ 1.0)

When 0 is set in this parameter, this setting is internally handled as

512 (α = 1), When α = 1, phase compensation is not performed.

Instead, the set value is output to Kc as is.

(Example of adjustment) The speeds of the motors are checked using the check board (when the

motors rotate in the same direction).

This function may be useful when the oscillation frequencies (several

Hz to 30 or 40 Hz) are the same, and the phases are opposite as shown

below.

NOTE

1 When the directions of rotation of the main motor

and sub-motor are different, the phase relationship

is reversed.

2 When the phase difference is not 180°, the phase

coefficient α must be adjusted. Start with 512, then

decrease the value gradually.

sec

00.5 1

Motor speed (sub)

Motor speed (main)

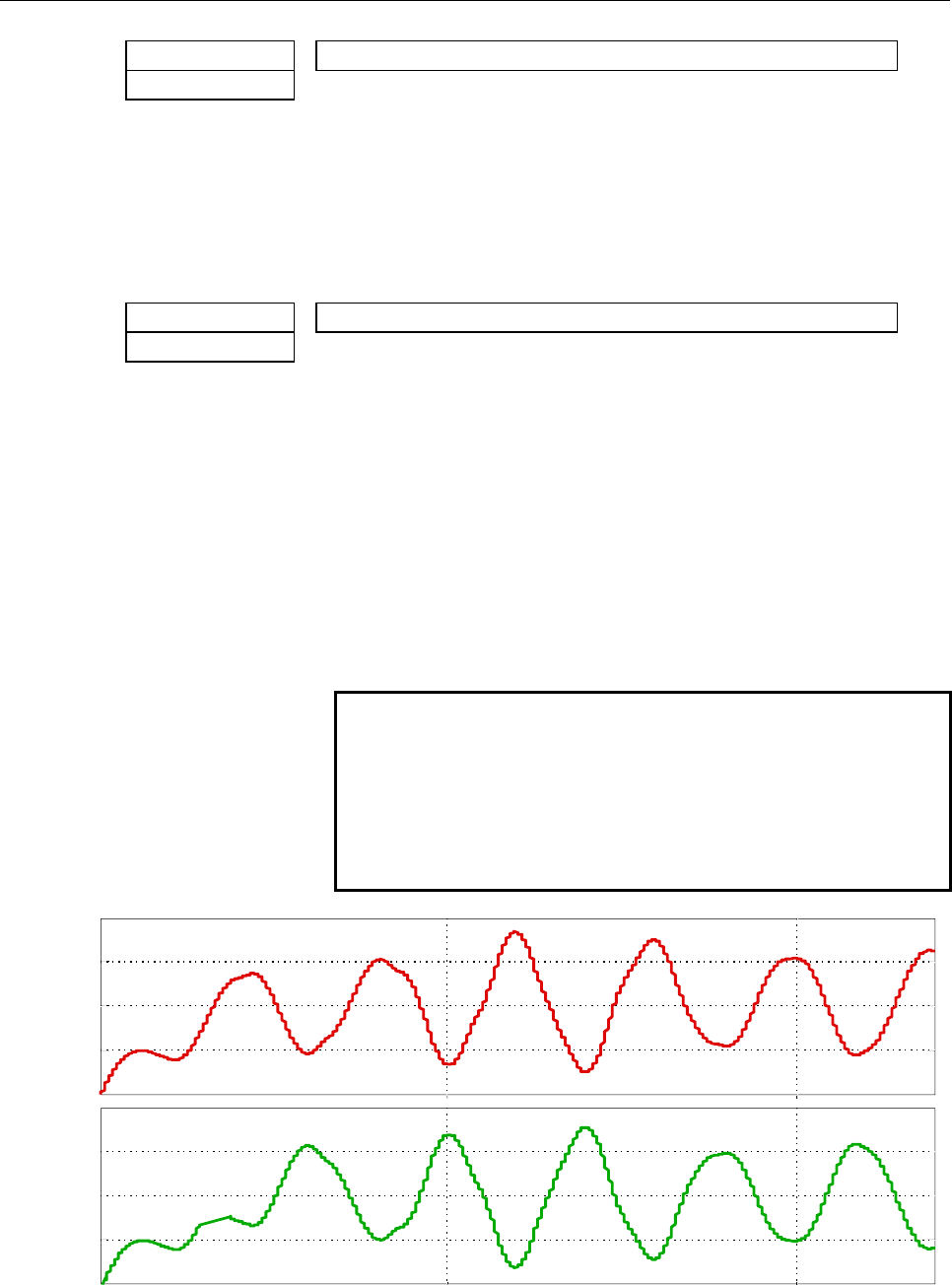

Fig. 4.18.2 (b) Motor speed vibration
