B-65270EN/05 3. αiS/αiF/βiS SERIES PARAMETER ADJUSTMENT

- 75 -

(a) Adjusting the velocity loop gain and the resonance elimination filter (when

Tuning Navigator is used)

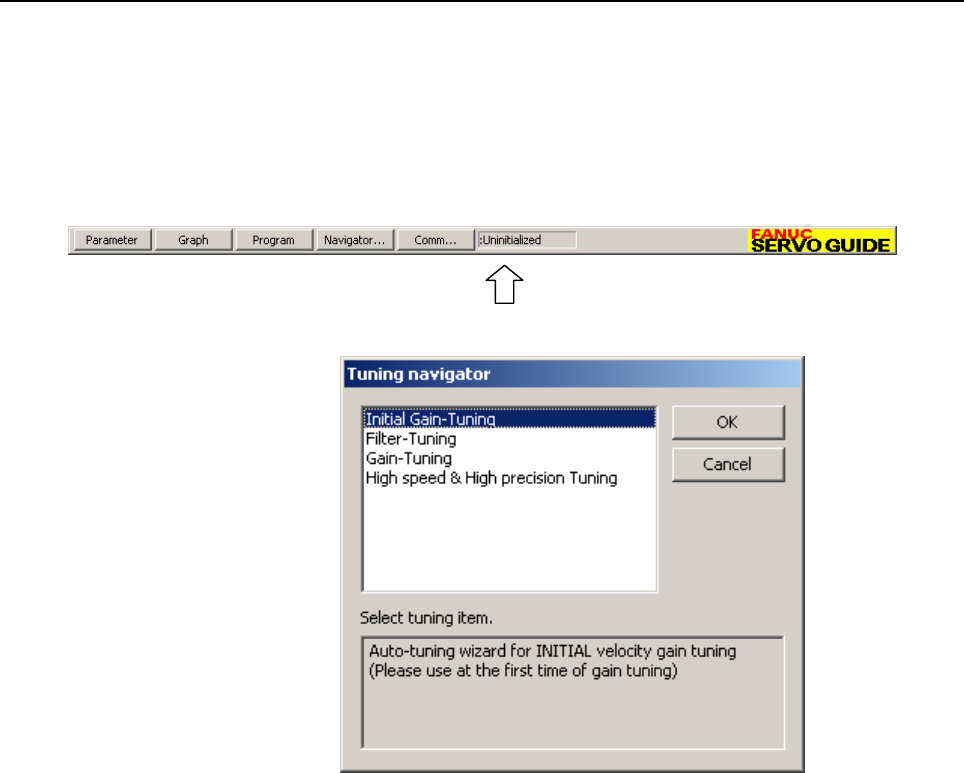

For adjustment of the resonance elimination filter, Tuning Navigator

of SERVO GUIDE can be used. On the main bar of SERVO GUIDE,

press the [Tuning Navi] button.

[Starting Tuning Navigator]

(Procedure for adjusting the velocity loop gain and the resonance

elimination filter)

In the adjustment of the velocity loop gain and the resonance

elimination filter, use <1> through <3> in the above figure. Make

adjustments in order from <1>.

<1> Initial Gain Tuning

Initial Gain Tuning determines the velocity loop gain value with

a margin for the oscillation limit. By making this adjustment, a

higher velocity gain than the initial value is set, so the frequency

of machine resonance can be determined clearly.

First, select Initial Gain Tuning from the dialog box of Tuning

Navigator.

Clicking this button displays the menu as shown below.

<1>

<2>

<3>
