4.SERVO FUNCTION DETAILS B-65270EN/05

- 340 -

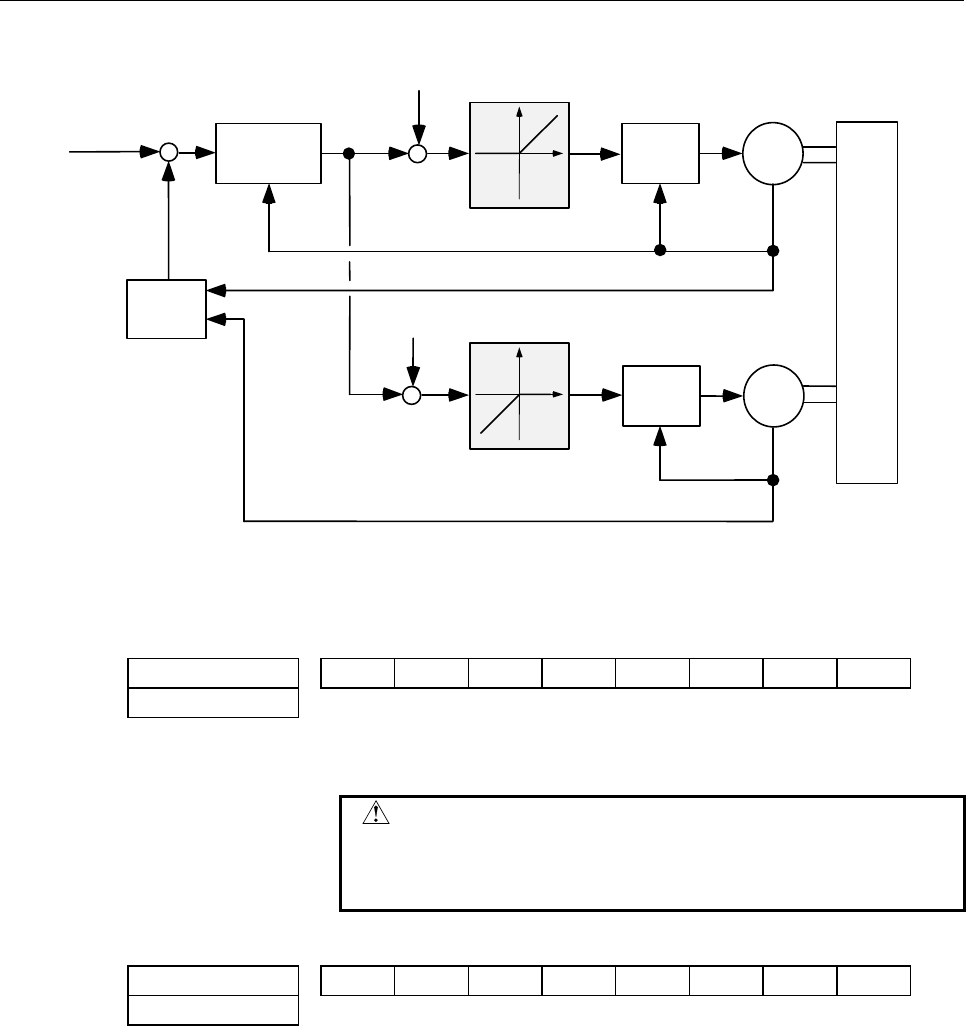

- Servo block diagram (full preload function)

Position and

velocity control

Position

command

Torque

command

−

Preload (main) > 0

Current

control

Motor

Machine

Position

feedback

switching

Rotor

position

Motor position feedback

Preload (sub) < 0

Current

control

Rotor

position

Position

feedback

Motor

Sub

Main

Velocity feedback

Motor position feedback

Fig. 4.18.6 (c) Servo block diagram (full preload function)

(2) Parameters for the full preload function

#7 #6 #5 #4 #3 #2 #1 #0

1952 (FS15i)

SPPRLD

2008 (FS30i, 16i)

SPPRLD (#3) 1: Enables the full preload function.

(Set this parameter for the main axis only.)

CAUTION

Always set this bit while the system is in the

emergency stop state. After rewriting this bit,

always turn the power to the NC off, then back on.

#7 #6 #5 #4 #3 #2 #1 #0

1952 (FS15i)

SPPCHG

2008 (FS30i, 16i)

SPPCHG (#4) Specifies the motor output torque polarities:

1: Outputs only the negative polarity to the main axis, and only the

positive polarity to the sub-axis.

0: Outputs only the positive polarity to the main axis, and only the

negative polarity to the sub-axis.

(Set this parameter for the main axis only.)

* A motor torque with a positive polarity is a torque that is

produced counter clockwise as viewed from the shaft.

See Fig. 4.18.6 (d).
