B-65270EN/05 4.SERVO FUNCTION DETAILS

- 347 -

4.18.8 Adjustment

(1) Examples of parameter setting

This section gives examples of parameter setting.

<1> Full-closed loop system using a 1-µm increment system,

8080P/motor revolution for scale feedback, a scale detection unit

of 0.5 µm/P, and an α1000i Pulsecoder (conventional tandem)

Position command

Position

control

Machine

Motor position feedback

Machine position feedback

Sub

Main

i Pulsecoder

1000000P/rev

Motor

⋅

CMR

4040P/rev 8080P/rev

−

DMR

Reference

counter

capacity

8080P/rev

Position

control

αi Pulsecoder

1000000P/rev

Motor

101

12500

⋅

8080P/rev

−

DMR

Reference

counter

capacity

8080P/rev

Motor position feedback

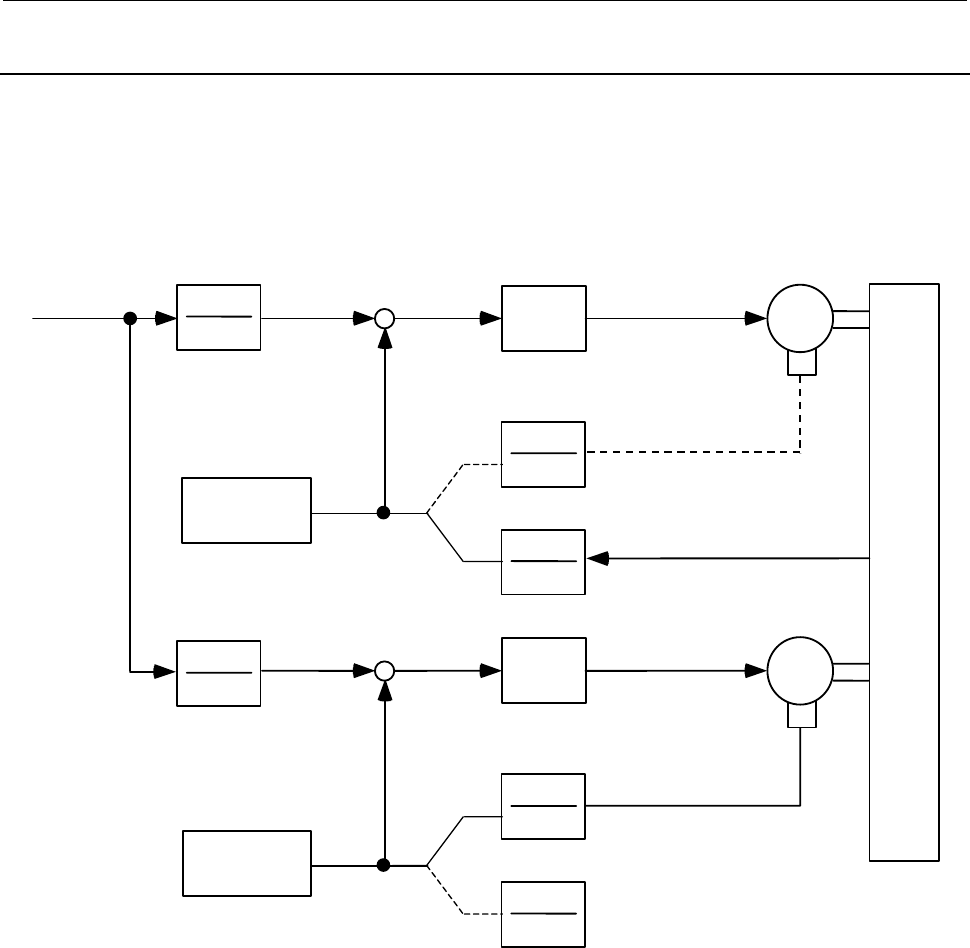

Fig. 4.18.8 (a) Example of position feedback setting

Series 30i, 16i, and so on Series 15i

Main Sub

•

Tandem axis No. 1817#6 No. 1817#1 1 1

• Full-closed loop No. 1815#1 No. 1815#1 1 0

No. 1807#3 1 0

• CMR No. 1820 No. 1820 4 4

• Reference counter capacity No. 1821 No. 1896 8080 8080

• High-resolution Pulsecoder No. 2000#0 No. 1804#0 0 0

• Number of velocity detection pulses No. 2023 No. 1876 8192 8192

• Number of position detection pulses No. 2024 No. 1891 8080 12500

• Flexible feed gear No. 2084 No. 1977 0 101

• Flexible feed gear No. 2085 No. 1978 0 12500
