B-65270EN/05 4.SERVO FUNCTION DETAILS

- 285 -

(3) Detach the linear motor power line from the servo amplifier, then

connect the power line to the DC power supply.

Connect the + terminal of the DC power supply to phase U of the

power line, and connect the - terminal of the DC power supply to

phase V and phase W of the power line.

DC power

Coil slider

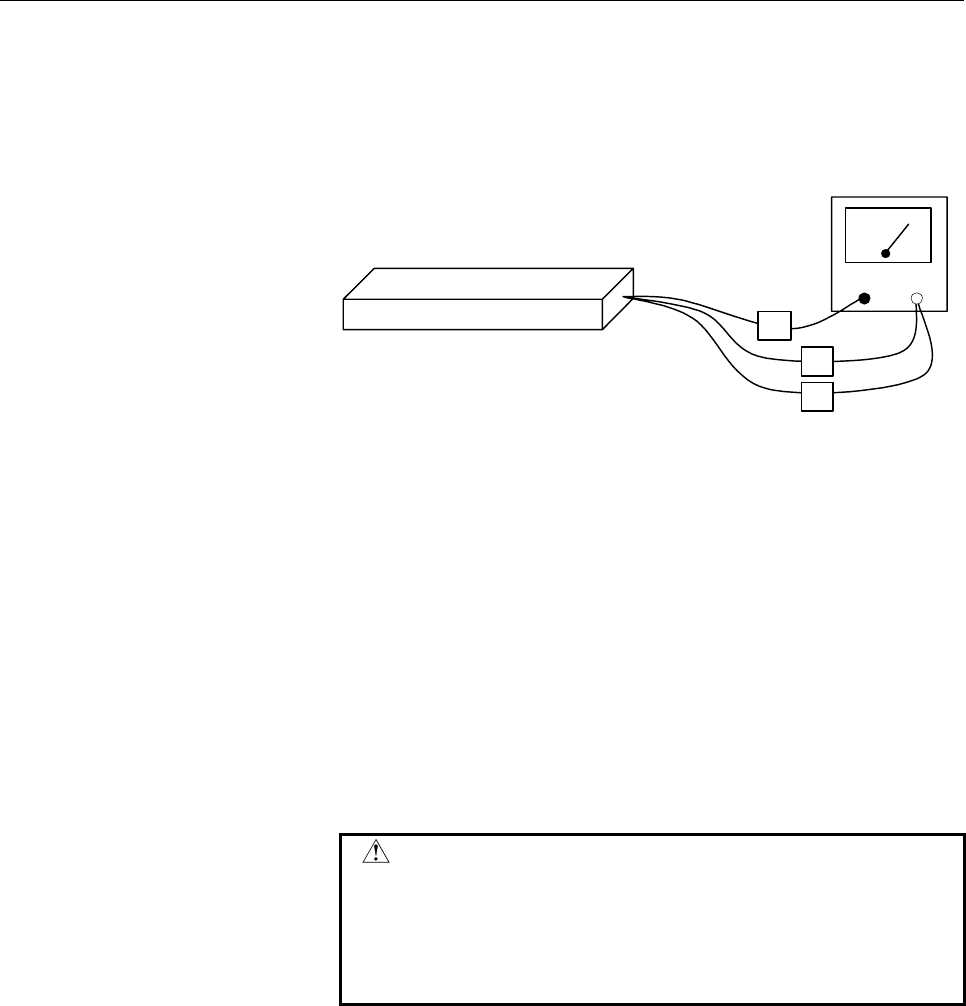

Fig. 4.14.1(e) Connection of DC power suppl

(4) In the emergency stop state, turn on the power to the CNC and

servo amplifier.

(5) Display No. 353 on the CNC diagnosis screen, and turn on the

power to the DC power supply. Next, increase the current

gradually (DC activation).

When the force of the linear motor produced by current supplied

from the DC power supply exceeds static friction, the linear

motor starts moving, and the linear motor automatically stops at a

position where activation phase = 0.

A position where activating phase = 0 is present at intervals of 60

mm with medium-size and large linear motors, or at intervals of

30 mm with small linear motors.

WARNING

If a large current flows abruptly, the motor

produces a large force, resulting in a very

dangerous situation. When making this adjustment,

be sure to increase the current value gradually

starting from current value = 0 [Ap].

(6) When the linear motor is at rest, read the value of No. 353 on the

CNC diagnosis screen. Turn off the power to the DC power

supply immediately after reading the value of No. 353.

* Make measurements of (5) and (6) several times by changing the

DC activation start position within one pole (medium-size, large

linear motor = 60 mm, small linear motor = 30 mm) to fine

average activating phase data (value of DGN No. 353).
