B-65270EN/05 4.SERVO FUNCTION DETAILS

- 195 -

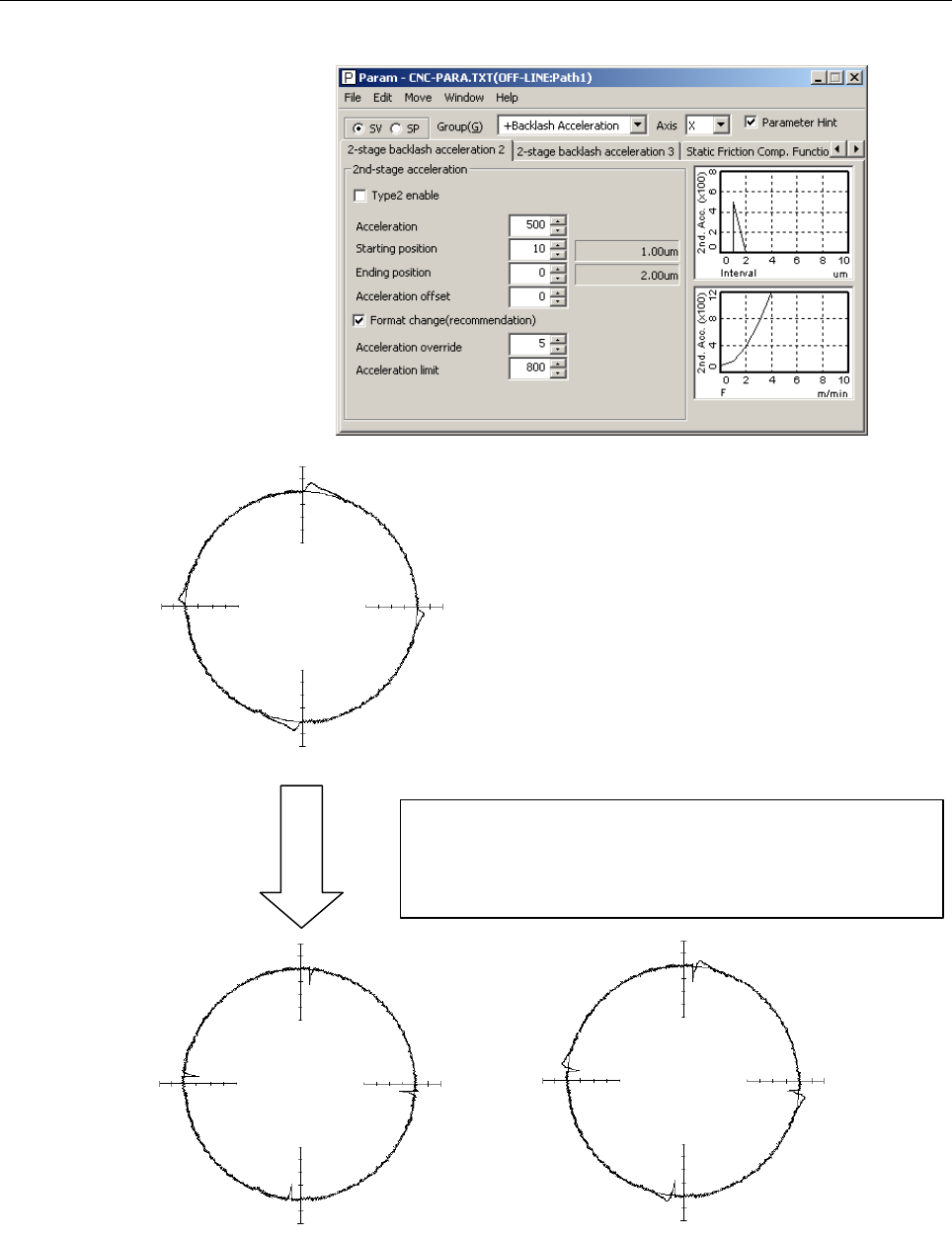

(Second stage acceleration setting in the parameter window)

Set the following:

Start/end parameter = Value of [Typical setting]

Second stage acceleration amount = 500

Then, adjust the start/end parameter while viewing the timing of

second stage acceleration from the arc figure.

Start/end paramete

(insufficient)

(The time for second stage acceleration is too

short, so that second stage protrusions are not

fully eliminated.)

Before start/end parameter adjustment

Start/end paramete

(adequate)

(A larger second stage acceleration amount is set

to view the timing of second stage acceleration, so

that cuts occur. This is corrected later.)

Fig. 4.6.7 (d) Two-stage backlash acceleration (adjustment of start position and end scale factor)
