3. αiS/αiF/βiS SERIES PARAMETER ADJUSTMENT B-65270EN/05

- 82 -

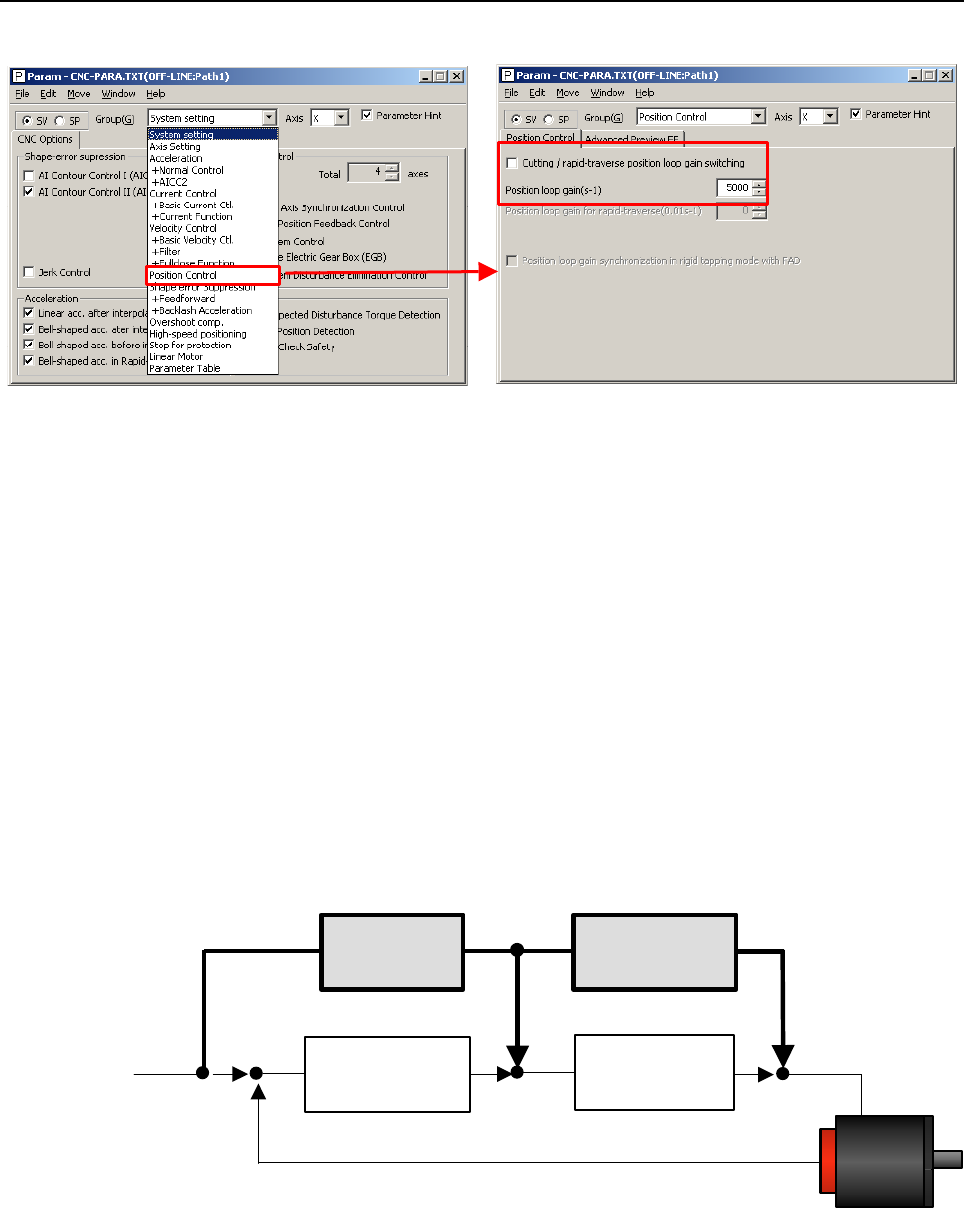

[Parameter window main screen] [Position control]

(8) Adjustment by using an arc (adjustment of the feed-forward coefficient

and adjustment of the servo function)

(a) Feed-forward function

For higher precision (higher performance) with small servo follow-up

delay, the feed-forward function is used. When the feed-forward

coefficient is set to 100%, the positional deviation can be almost

eliminated.

(Feed-forward)

By adding to a velocity command value the velocity

compensation value equivalent to the position command issued

from the CNC, the contour error due to position loop response

delay can be reduced.

(Velocity feed-forward)

The torque compensation amount equivalent to the amount of

change in velocity command (acceleration) is added to a

specified torque value so that the contour error due to velocity

loop response delay can be reduced.

Velocity control

Position feedback

Velocity

feed-forward

Feed-forward

Position control

Current

command

Velocity

command

Position

command

Velocity compensation

amount

Torque

compensation
