4.SERVO FUNCTION DETAILS B-65270EN/05

- 332 -

Required

torque

+preload

−preload

Torque command

Required torque =

(drive torque)/2

+preload

Torque limit

Sub-motor

Main motor

(Drive torque)/2 = (main + sub)/2

− Torque limit

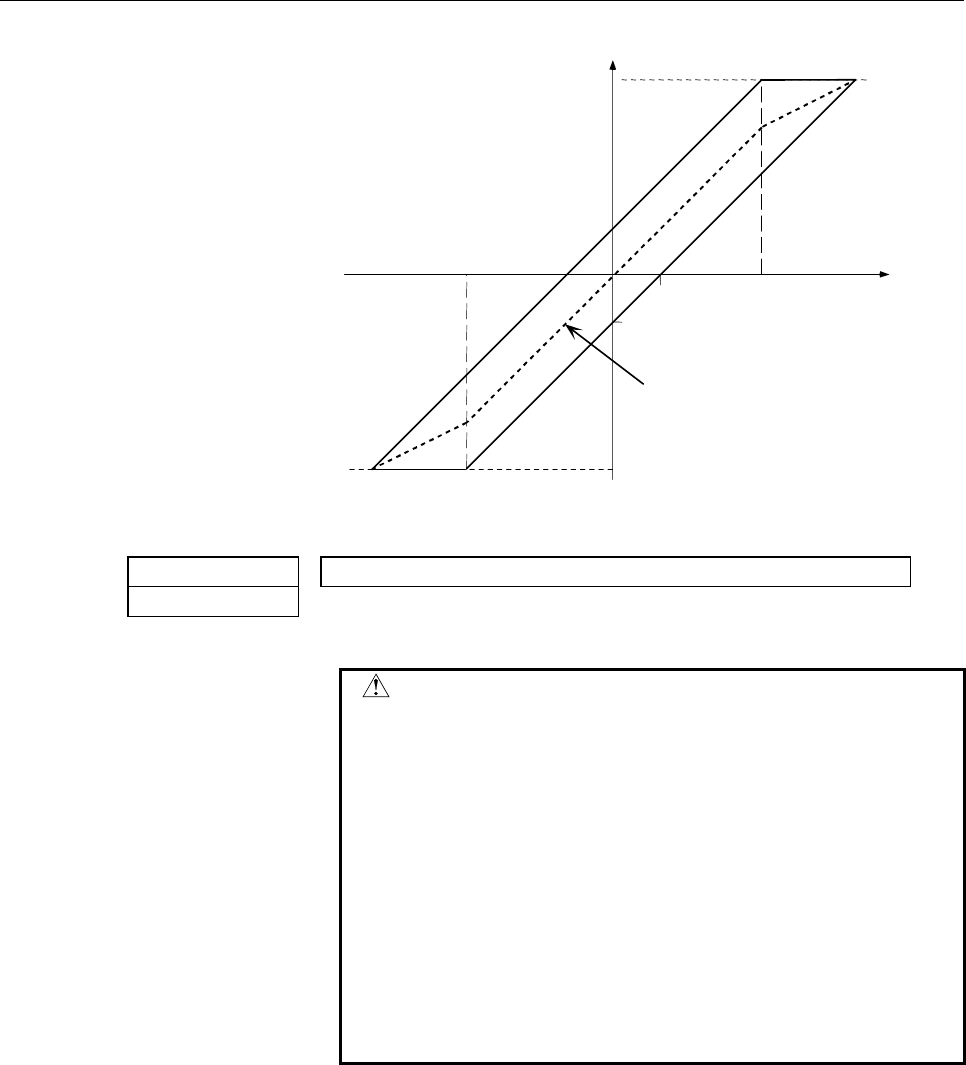

Fig. 4.18.1 (b) Relationship between required torque and torque

command for each motor

1980 (FS15i)

Preload value (PRLOAD)

2087 (FS30i, 16i)

Set this parameter for the main- and sub-axes.

CAUTION

Set a value that is as small as possible but greater

than the static friction torque. A set preload torque

is applied to each motor at all times. So, set a

value that does not exceed the rated static torque

of each motor. As a guideline, specify a value

equal to one-third of the rated static torque.

As shown in Fig. 4.18.11 (a) in Subsec. 4.18.11, a

preload torque is added in any case. So, set the

preload torque directions as follows:

• When the rotation directions of the main axis

and sub-axis are the same: Different signs

• When the rotation directions of the main axis

and sub-axis are different: Same sign

Example of setting For the αiF4/4000 (Servo amplifier αi SV 40)

When a preload torque of 1 N⋅m is to be applied, the torque constant is

0.52 N⋅m/Arms according to the specifications of the servo motor.

So, the peak value is 0.368 N⋅m/Ap. The torque is converted to a

current value as follows:

1/0.368 = 2.72 Ap.

The amplifier limit is 40 Ap, so that the value to be set is:

2.72/40 × 7282 = 495

So, set 495 for the main axis, and -495 for the sub-axis (when the

directions of rotation of the two motors are the same).
