4.SERVO FUNCTION DETAILS B-65270EN/05

- 258 -

(3) Parameter adjustment methods

<1> Use SERVO GUIDE to observe the motor speed (SPEED) and

estimated disturbance torque (DTRQ).

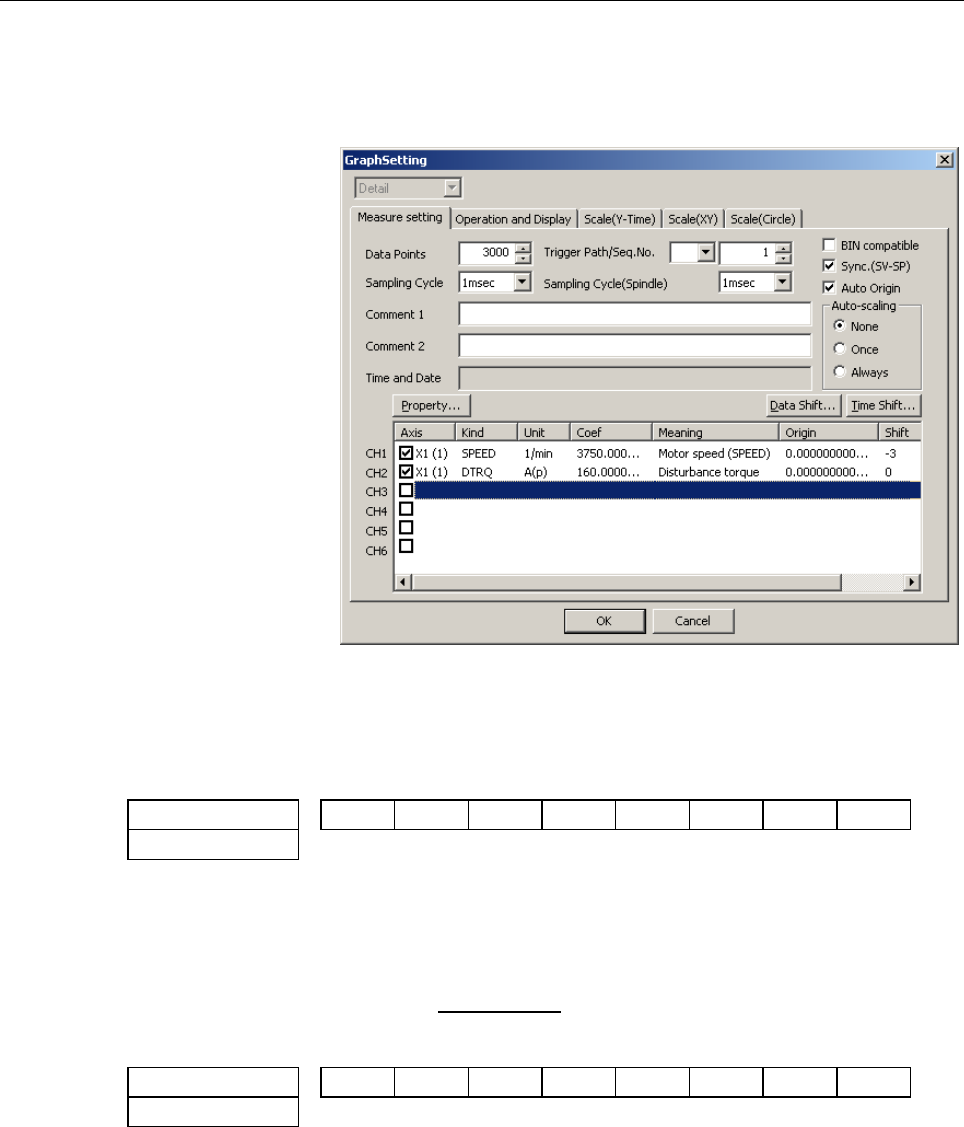

(Example of channel settings on SERVO GUIDE)

(See Sec. 4.19 for detailed descriptions about how to use the

SERVO GUIDE.)

<2> Switch on the CNC.

<3> Enable the unexpected disturbance torque detection function

#7 #6 #5 #4 #3 #2 #1 #0

1958 (FS15i)

ABNT

2016 (FS30i, 16i)

ABNT (#0) Specifies whether to enable the unexpected disturbance torque

detection function as follows:

1: To enable

0: To disable

Moreover, be sure to set

also the following parameters.

#7 #6 #5 #4 #3 #2 #1 #0

1740 (FS15i)

IQOB

2200 (FS30i, 16i)

IQOB Specifies whether to eliminate influence of control voltage saturation

when estimating disturbance, as follows:

1: To eliminate influence of control voltage saturation when

estimating disturbance

0: Not to take influence of control voltage saturation when estimating

disturbance into consideration
