(3) Features of servo HRV control

(a) Servo HRV2 control

Servo HRV control is a total control technology implemented by a

servo motor, servo amplifier, and control systems as shown in the

figure below. Servo HRV2 control has the following features:

(1) HRV filters for eliminating vibration components of the machine

system can be used.

The HRV filters include the following filters to cover a wide

range of vibration from low frequency vibration to high

frequency vibration:

TCMD filter (a filter for eliminating middle frequency vibration)

Resonance elimination filter (a filter for eliminating high

frequency vibration)

Disturbance elimination filter (a filter for eliminating low

frequency vibration)

(2) Use of a α

iS/αiF/βiS series motor and a αi/βi servo amplifier

enables high-speed, high-precision, and smooth feed.

(3) Use of a precise pulse coder improves control performance.

With Series 90B0, 90B1, 90B6, and 90B5, it is recommended that

servo HRV2 control be used for the current loop.

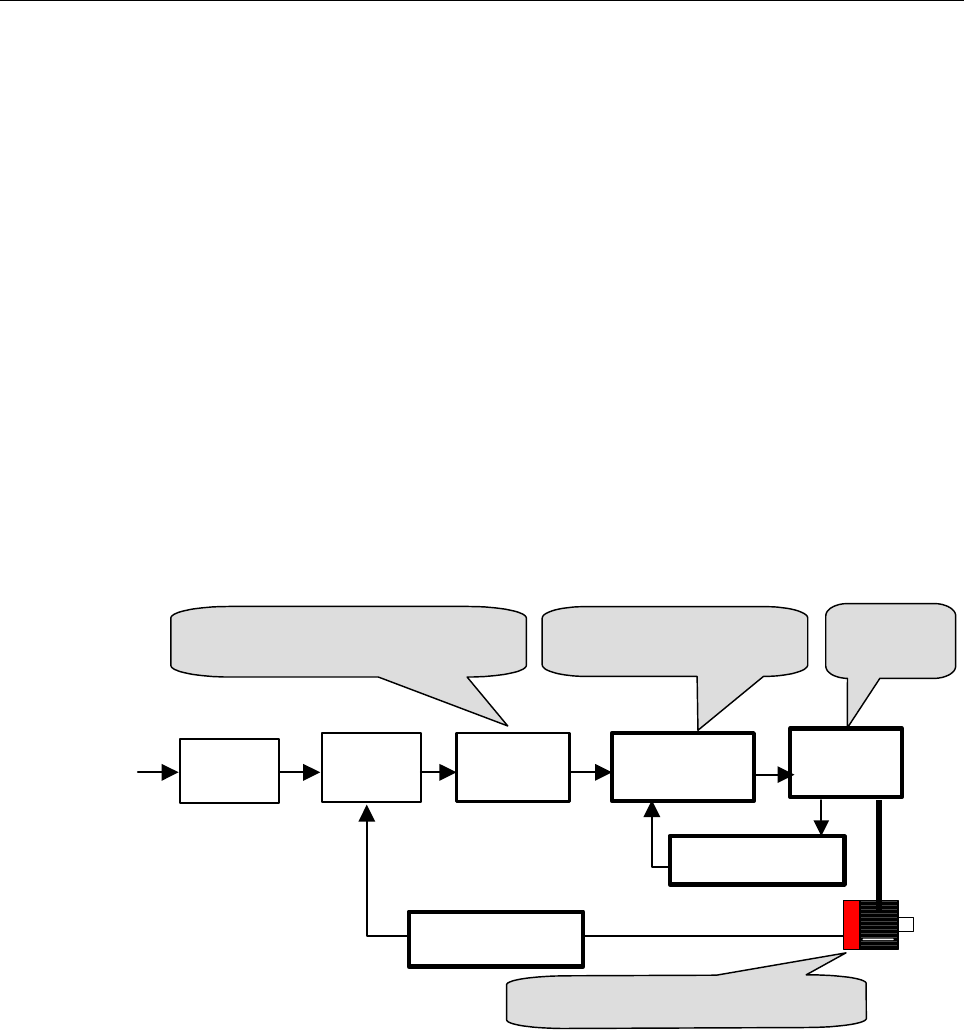

HRV current

control

Position

control

Velocity

control

elocity feedback

Current feedback

HRV filte

Servo

amplifier

Detects

current with

h precision.

High-response, high-precision detecto

Capable of handling low-frequency

vibration to high-frequency vibration

Exercises current control

at high speed.

(b) Servo HRV3 control

In addition to the features of HRV2 control, servo HRV3 control has

the following features:

(1) Use of high-speed DSP enables high-speed HRV current control,

therefore improving the response performance of the current

loop.

(2) When a linear motor or an α

iS series servo motor are used, both

high acceleration, high speed and high precision can be provided

at the same time.

With Series 90D0 and 90E0, use of servo HRV3 control is

recommended.
