B-65270EN/05 4.SERVO FUNCTION DETAILS

- 139 -

4.4.4 N Pulses Suppression Function

(1) Overview

Even a very small movement of the motor in the stop state may be

amplified by a proportional element of the velocity loop, thus

resulting in vibration. The N pulse suppression function suppresses

this vibration in the stop state.

When vibration occurs as shown in Fig. 4.4.4 (a), the velocity

feedback at point B generates an upward torque command to cause a

return to point A. A downward torque command, generated by the

velocity feedback at point A is greater than the friction of the machine,

causing another return to point B. This cycle repeats itself, thus

causing the vibration.

Motor position

Stop position

Point A

Point B

Torque by

proportional

element

1 pulse

grid

Time

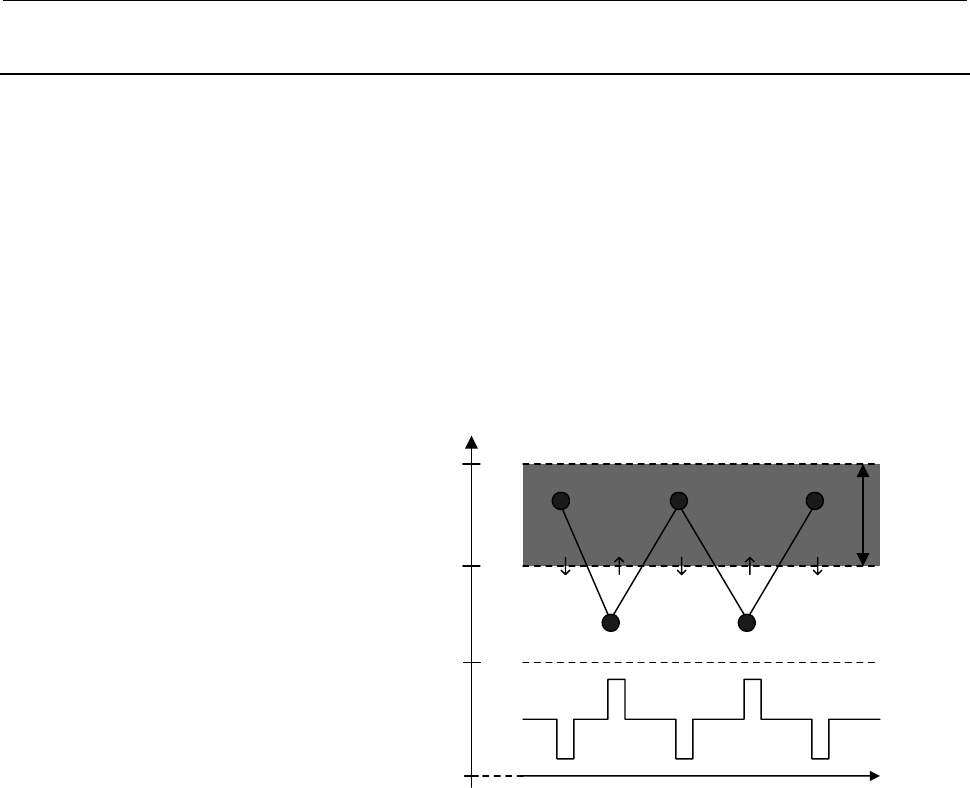

Fig.4.4.4 (a) N pulse suppression function disabled (Torque due to the

proportional term keeps up, leading to vibration.)

To suppress such vibration, it is necessary to exclude from the

velocity loop proportional term the speed feedback pulses generated

when the motor returns from point B to point A.

If the N pulse suppression function is enabled as shown in Fig. 4.4.4

(b), the feedback pulses generated when the motor returns from point

B to point A are excluded from the velocity loop proportional term.

The standard setting of the grid width at point A is 1 µm. It can be

changed by specifying the level parameter.
