H.DETAILS OF HIGH-SPEED AND HIGH-PRECISION ADJUSTMENT APPENDIX B-65270EN/05

- 496 -

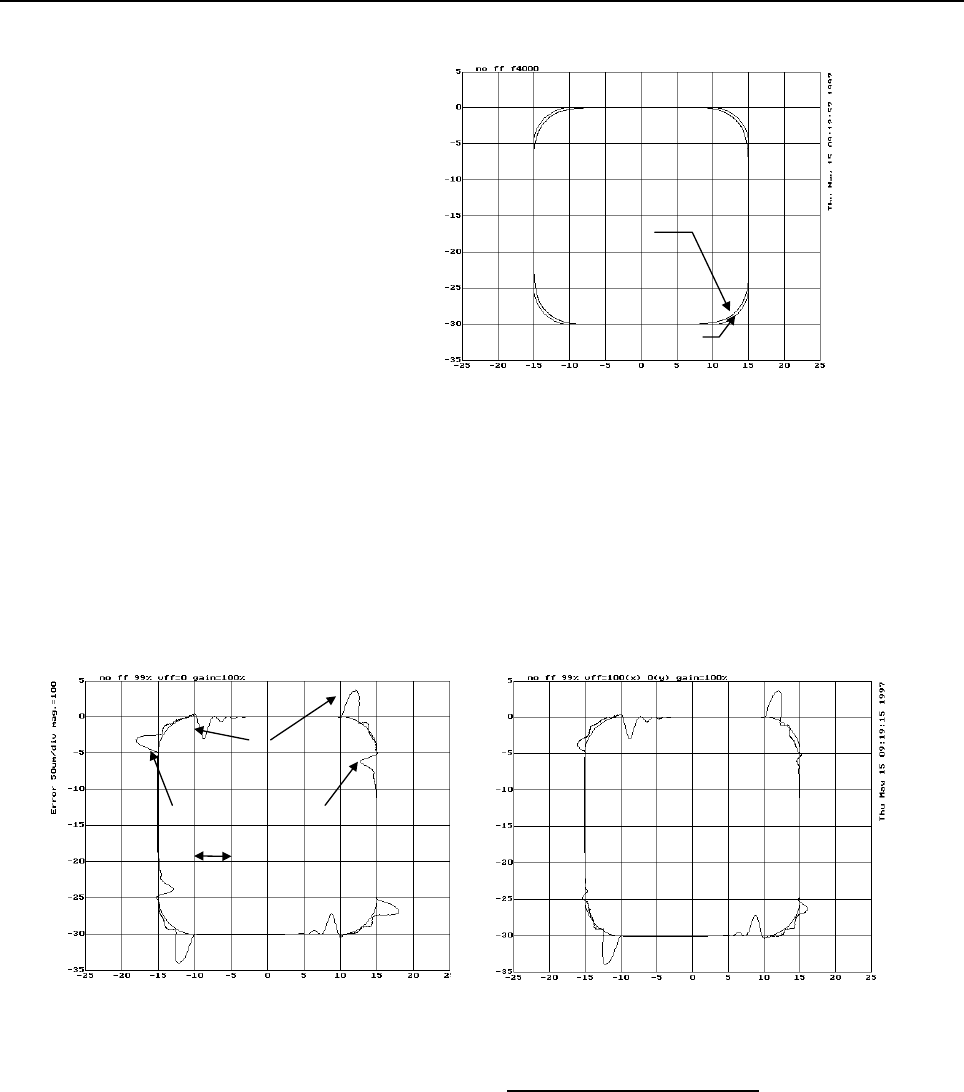

Fig. H (f) Specified path and actual path

ctual path

Specified path

When advanced preview feed-forward is disabled, a figure error of

hundreds µm occurs as shown in Fig. H (f), and therefore can be

viewed even in the XY mode. However, if advanced preview

feed-forward is enabled for figure error reduction, it is difficult to

evaluate a figure error correctly unless the error is enlarged.

In such a case, use the figure comparison mode (contour mode) for

enlarging errors only for display (Ctrl O).

In addition, set an error display magnification with F3 (scale change).

For Fig. H (g), a display magnification of 100 is set.

The figure display is 5 mm wide.

The error is 50 µm in size.

Protrusion and cut due to

a delay on the Y-axis

Protrusion and cut due to a

delay on the X-axis

Fig. H (g)

elocity feed-forward adjustment

Velocity loop gain: 100%

Advanced preview feed-forward coefficient: 99%

FAD time constant: 24 ms (linear type)

Velocity feed-forward: 0%

Fig. H (h)

elocity feed-forward adjustment

Velocity loop gain: 100%

Advanced preview feed-forward coefficient: 99%

FAD time constant: 24 ms (linear type)

elocit

feed-forward: X100%

In Fig. H (g), the velocity feed-forward coefficient is not specified, so

that the movement along each axis delays where acceleration changes

to a large extent. As the result, a protrusion occurs at the joint of a

straight line with an arc, and a cut occurs at the joint of an arc with a

straight line. In Fig. H (h), a velocity feed-forward coefficient is set

for the X-axis only. The response of the X-axis has improved, so that

a figure improvement can be seen in the areas where acceleration

changes to a large extent along the X-axis.
