3. αiS/αiF/βiS SERIES PARAMETER ADJUSTMENT B-65270EN/05

- 76 -

Wide

Under 10dB

Under -20dB

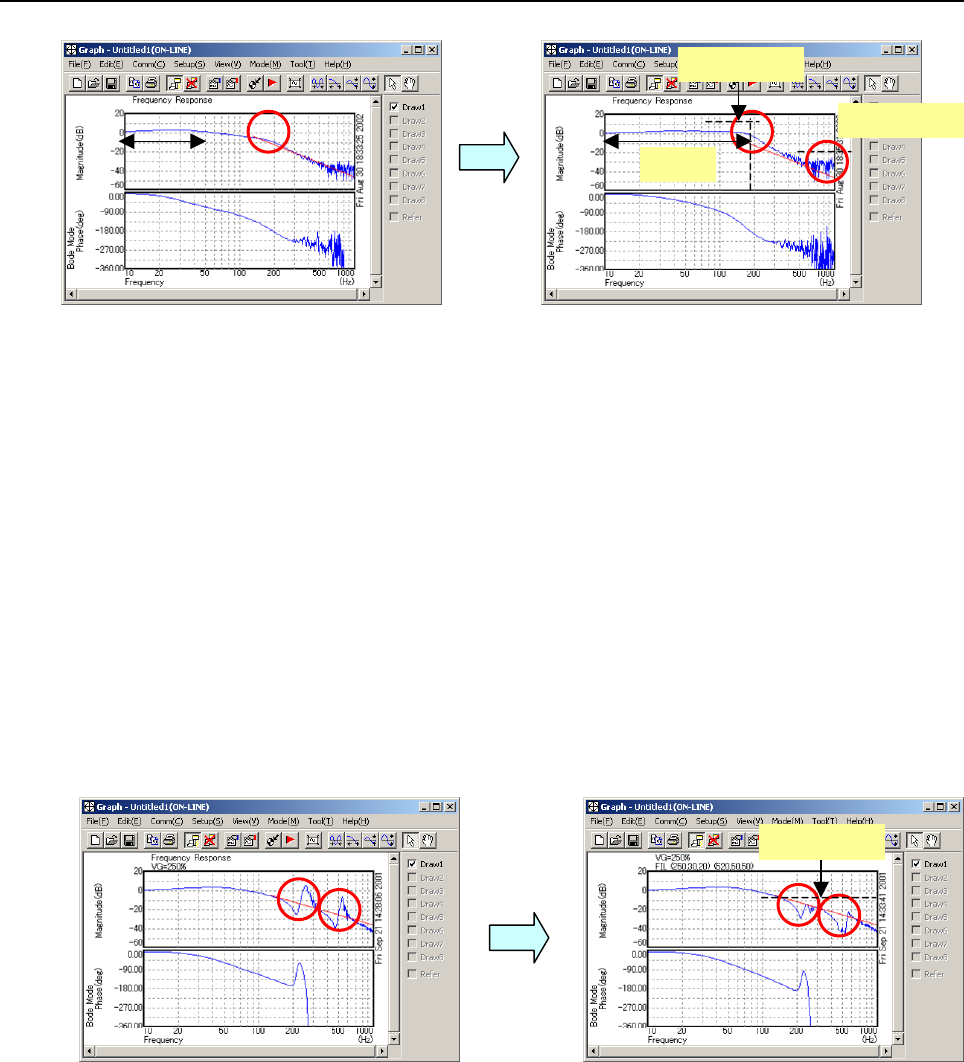

Tuning Navigator shows bode-plot of velocity loop and you can

check the performance of velocity loop.

Upper line in bode-plot shows gain characteristic and lower line

shows phase characteristic. Important points of this figure that

you should note are as follows. (About the details of bode-plot,

please refer to several books of basic control method)

• The width of 0dB level of gain line is important. By setting

higher velocity loop gain, it becomes wide.

• Gain level of resonance frequency has to be suppressed at

least under -10dB.

• Gain level around cut-off frequency is less than 10dB.

• Gain level near 1000Hz has to be lower than -20dB.

<2> Filter Tuning

Next, select Filter Tuning from Tuning Navigator to adjust the

resonance elimination filter to suppress machine resonance.

Following example shows that gain line at two resonance

frequencies (250Hz and 530Hz) are suppressed by Filter Tuning.

Under -10dB

<3> Gain Tuning

Finally, select "Gain Tuning". Tuning Navigator decides the final

result of gain tuning. By adjusting the resonance elimination

filter, the influence of machine resonance can be eliminated, so a

high velocity loop gain can be set.
