B-65270EN/05 APPENDIX H.DETAILS OF HIGH-SPEED AND HIGH-PRECISION ADJUSTMENT

- 513 -

No.2048

cceleration

Backlash acceleration

amount

No.2338

No.2114

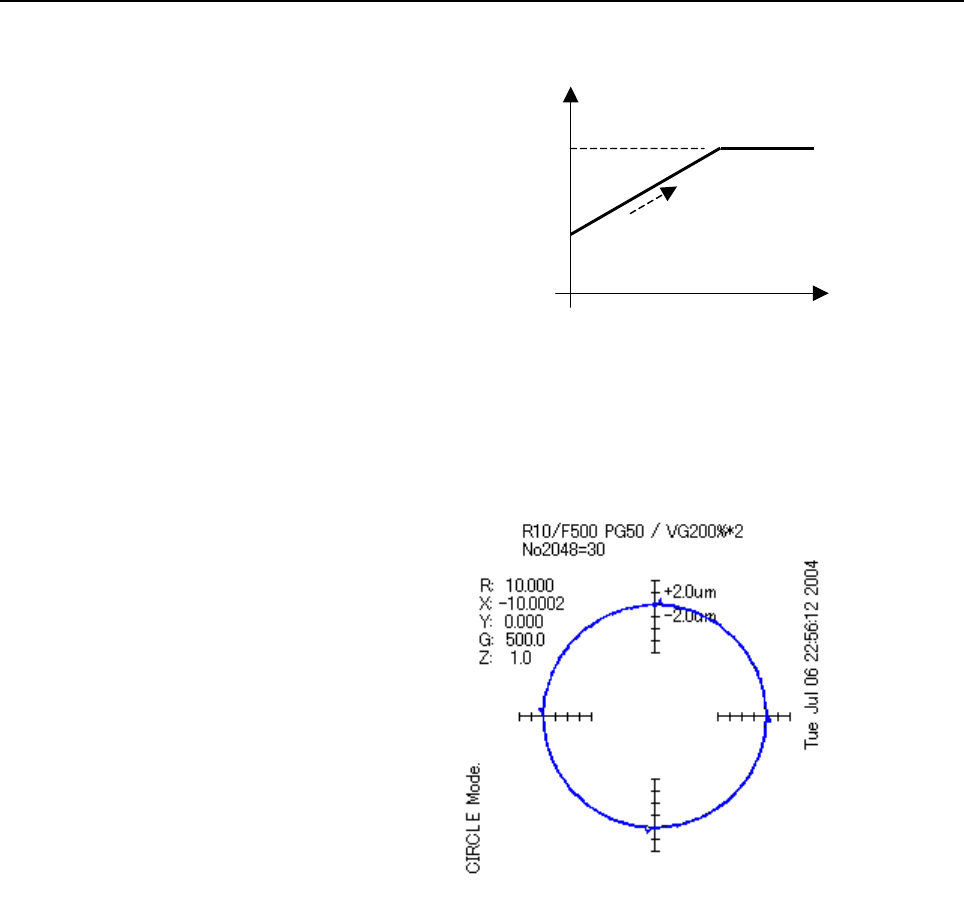

(1) Determining parameter No. 2048

To determine parameter No. 2048, an adjustment must be made at low

feedrate. This example assumes a feedrate of F500 mm/min and a

radius of 10 mm. Adjust an optimum value at a low feedrate, and set it

in parameter No. 2048. The figure below shows the result of setting 30

in parameter No. 2048. Here, this value is set in parameter No. 2048.

(2) Determining parameter No. 2114

Parameter No. 2114 must be set after the adjustment of parameter No.

2048. About a half of the maximum cutting feedrate is used to

determine the value to be set in parameter No. 2114. In this example,

F2500 mm/min is used. By increasing the value in parameter No. 2114,

determine an optimum value that does not cause undercuts. Increasing

the value in parameter No. 2114 increases the actual acceleration

amount.

The following figure shows the result of the adjustment of parameter

No. 2114. Quadrant protrusions can be suppressed satisfactory.
