C. Ma

Newly designed

Notice of the update of Digital Servo

Software 90B1 series

B-65270EN/05-005

FANUC LTD

Attached 1. Smoothing Compensation for Synchronous Built-in Servo Motor

(1) Overview

Smoothing compensation for synchronous built-in servo motor improves the

smoothness in feed of a synchronous built-in servo motor by producing a

sinusoidal compensation torque with a cycle of 1.5 and 3 times per pole pair

produced by servo software and by applying such a torque to the current

command. Compensation torque can be generated for each motor by setting

gain and phase for each component. The parameters for synchronous built-in

servo motor smoothing compensation can be automatically calculated by

“SERVO GUIDE”.

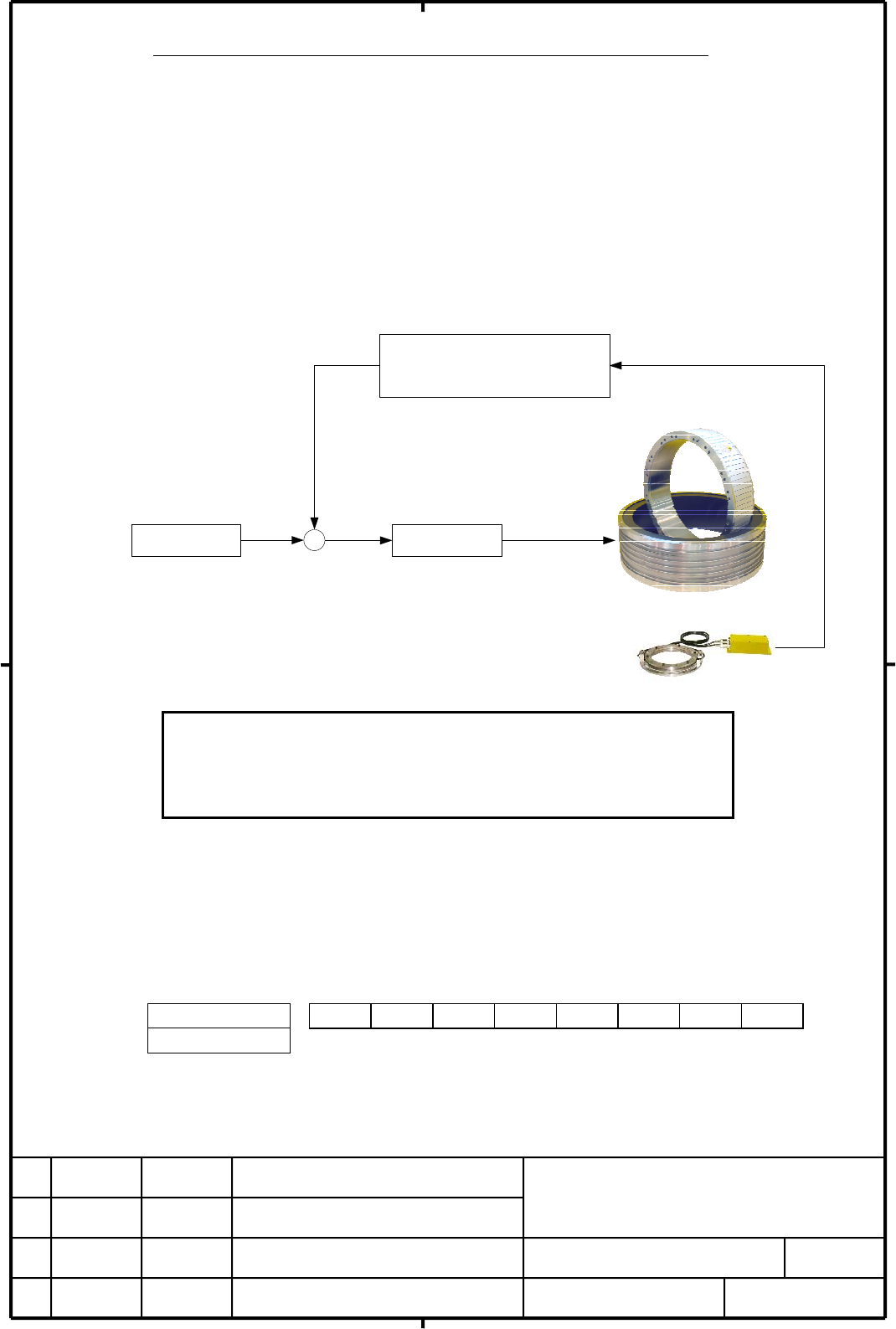

Torque com m and for com pensation

1sin(1.5θ+P 1)

+ A

2sin(3θ+P2)

C u rre n t loopVelocity loop

synchronous built- in

se rv o m o to r

iCZ sensor

A 1, A 2: m a g n itu d e fo r 1 .5 and 3 times per

p o le pare com pensation torque

1, P 2: p h a s e fo r 1 .5 and 3 tim es per pole

p a re c o m p e n s a tion torque

NOTE

This function can only be used for synchronous built-in servo motor with

encoder whose minimum resolution is smaller than or equal to 2

pulse/rev

（EX. HEIDENHAIN RCN223）.

(2) Series and editions of applicable servo software

(Series 15i-B,16i-B,18i-B,21i-B,Power Mate i)

Series 90B1/E(05) and subsequent editions

(3) Setting parameters

#7 #6 #5 #4 #3 #2 #1 #0

2300(FS16i) DD

2713 (FS15i)

DD(#2) Synchronous Built-in Servo Motor

0: Invalid

1: Valid （Smoothing compensation for synchronous built-in servo motor also

becomes valid）
