B-65270EN/05 2. SETTING αiS/αiF/βiS SERIES SERVO PARAMETERS

- 35 -

• Calculate the reference counter capacity.

Reference counter capacity = 360 degrees/0.0001 degrees =

3,600,000

(About speed limit)

When the RCN223, RCN723, or RCN727 is used as a separate

detector, the maximum permissible speed that can be controlled is 938

min

-1

(*)

(See Appendix E.)

(*) The above maximum speed does not include hardware

limitations. For the maximum permissible speed of the detector

itself, refer to the specifications of the detector.

Setting the signal direction of the separate detector

When a serial type separate detector is used with its signals connected

in reverse directions, the following parameter must be used:

#7 #6 #5 #4 #3 #2 #1 #0

1960 (FS15i)

RVRSE

2018 (FS30i, 16i)

RVRSE (#0) The signal direction of the separate detector is:

1: Reversed.

0: Not reversed.

(5) Reference position return when a serial type separate detector is used as

an absolute-position detector

When a serial type separate detector is used as an absolute-position

detector, the phase-Z position must be passed once before a reference

position return is performed. Then, turn the CNC off then back on to

allow reference position return.

(This description does not apply if a detector that does not require

battery backup is in use.)

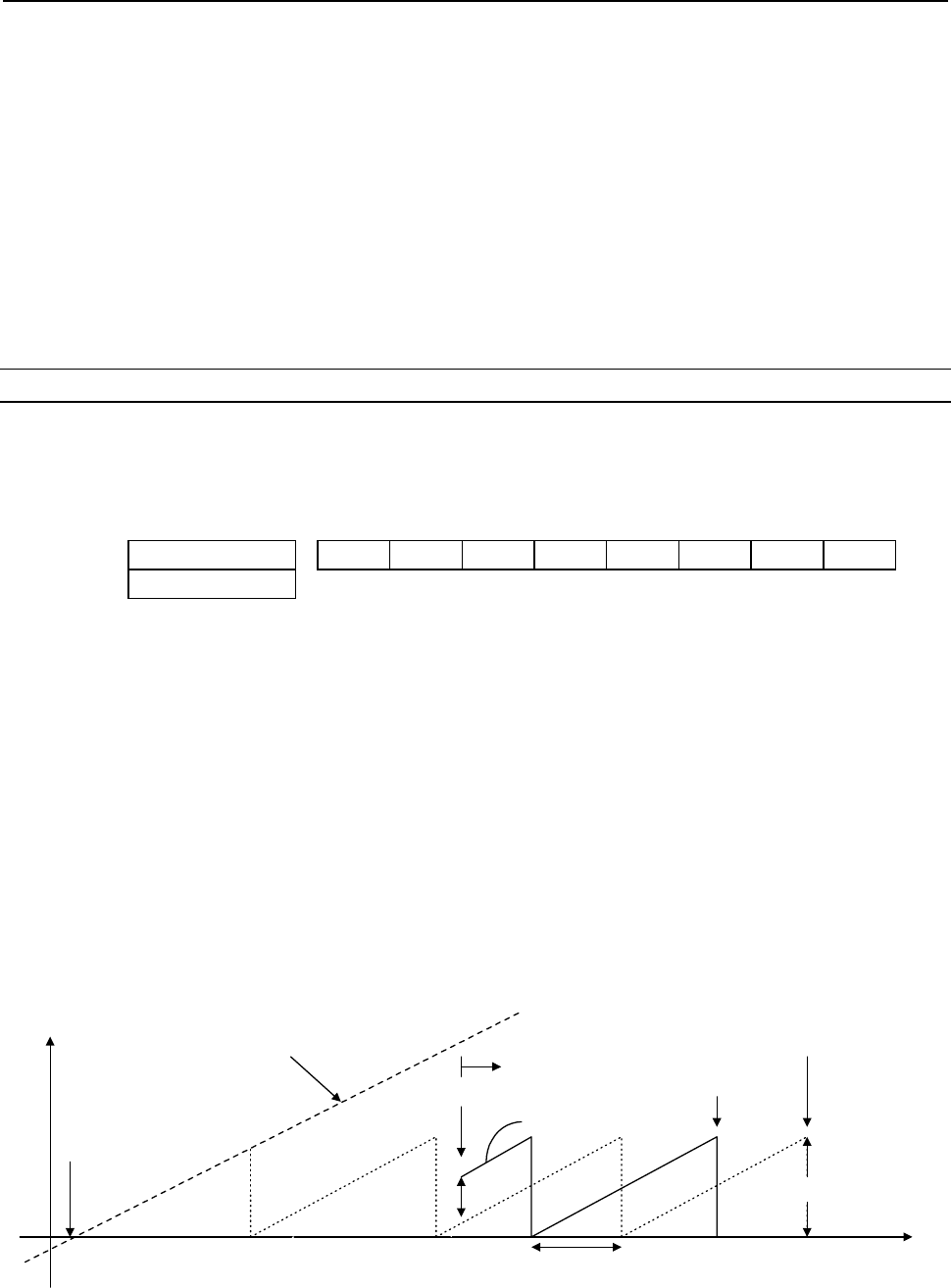

When reference position return is performed, adjust the deceleration

dog so that the grid-shifted reference position is not too near the

deceleration dog.

Encoder position

Reference position data

of the detector = 0

Position data from

the encoder

Start position of

reference position return

Direction of reference

position return

Deceleration dog

To be adjusted so that the grid-shifted reference

position is not too near the deceleration dog.

Reference counter capacity

Grid-shifted reference

position

Reference position not grid-shifted

Machine position

Grid shift amount

Reference counter
