B-65270EN/05 3. αiS/αiF/βiS SERIES PARAMETER ADJUSTMENT

- 69 -

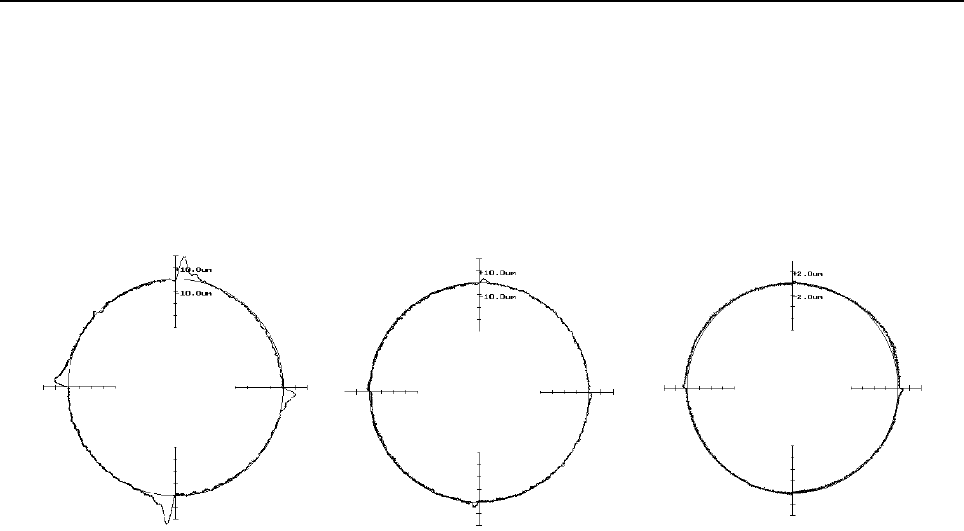

The figure below shows the results of a gain adjustment for each servo

HRV control type. The figure indicates that improvement in response

speed of the current loop by servo HRV control further improves the

response speed of velocity control and position control, and therefore

quadrant protrusions can be reduced without the backlash acceleration

function.

Servo HRV1 control Servo HRV2 control Servo HRV3 control

R100mm 10000mm/min without backlash acceleration function

This manual explains the servo adjustment procedure in the following

order:

• Initialization of parameters related to high-speed and

high-precision machining

Before starting the servo adjustment for high-speed and

high-precision machining, set minimum required parameters.

• Servo HRV control setting

Select the servo HRV control type. Select suitable servo HRV

control from servo HRV2, HRV3, and HRV4.

• Adjustment of high-speed velocity control

Adjust the velocity loop gain and filter by using SERVO

GUIDE.

• Adjustment of acc./dec. in rapid traverse

Adjust the time constant for rapid traverse. In position gain

setting made in the next step, the limit is confirmed by checking

stability during rapid traverse.

• Position gain adjustment

Adjust the position gain while observing the TCMD and motor

speed in rapid traverse and cutting feed.

• Adjustment by using an arc

Adjust the feed-forward and backlash acceleration while

measuring an arc figure.

• Adjustment by using a square figure

Adjust the reduced feedrate and the acceleration for deceleration

at a corner while measuring the corner figure.

• Adjustment by using a square figure with 1/4 arcs

Adjust the velocity in the round corners while measuring the

contour error in the round corners.
