B-65270EN/05 4.SERVO FUNCTION DETAILS

- 301 -

Setting the correction gain of the following parameters with a nonzero

value can switch between the negative direction smoothing

compensation and the positive direction smoothing compensation. In

this case, the smoothing compensation parameter explained above

applies only to feeding in the positive direction.

(Series 9096 and Series 90B0/M(13) and earlier editions are not

supported.)

2782 (FS15i)

Smoothing compensation performed twice per pole pair (negative direction)

2369 (FS30i, 16i)

Correction gain (high-order 8 bits) Correction phase (low-order 8 bits)

2783 (FS15i)

Smoothing compensation performed four times per pole pair (negative direction)

2370 (FS30i, 16i)

Correction gain (high-order 8 bits) Correction phase (low-order 8 bits)

2784 (FS15i)

Smoothing compensation performed six times per pole pair (negative direction)

2371 (FS30i, 16i)

Correction gain (high-order 8 bits) Correction phase (low-order 8 bits)

Since the compensation parameters differ from motor to motor

(depending on the motor rather than the model), these parameters must

be determined for each motor assembled.

In principle, variation in torque command that is generated when the

motor is fed at a low speed depends on the position. The application of

smoothing compensation cancels this position-dependent

characteristic, allowing the motor to move smoothly.

The measuring instruments that can be used to determine these

parameters include "SERVO GUIDE" (Ver. 2.00 or later) and "SD"

(servo tuning software).

If using SERVO GUIDE (Ver. 2.00 or later)

By using SERVO GUIDE (Ver. 2.00 or later), these parameters can be

determined easily. Follow the procedure below to measure the

activating phase and torque command, which are required to

determine the compensation parameters.

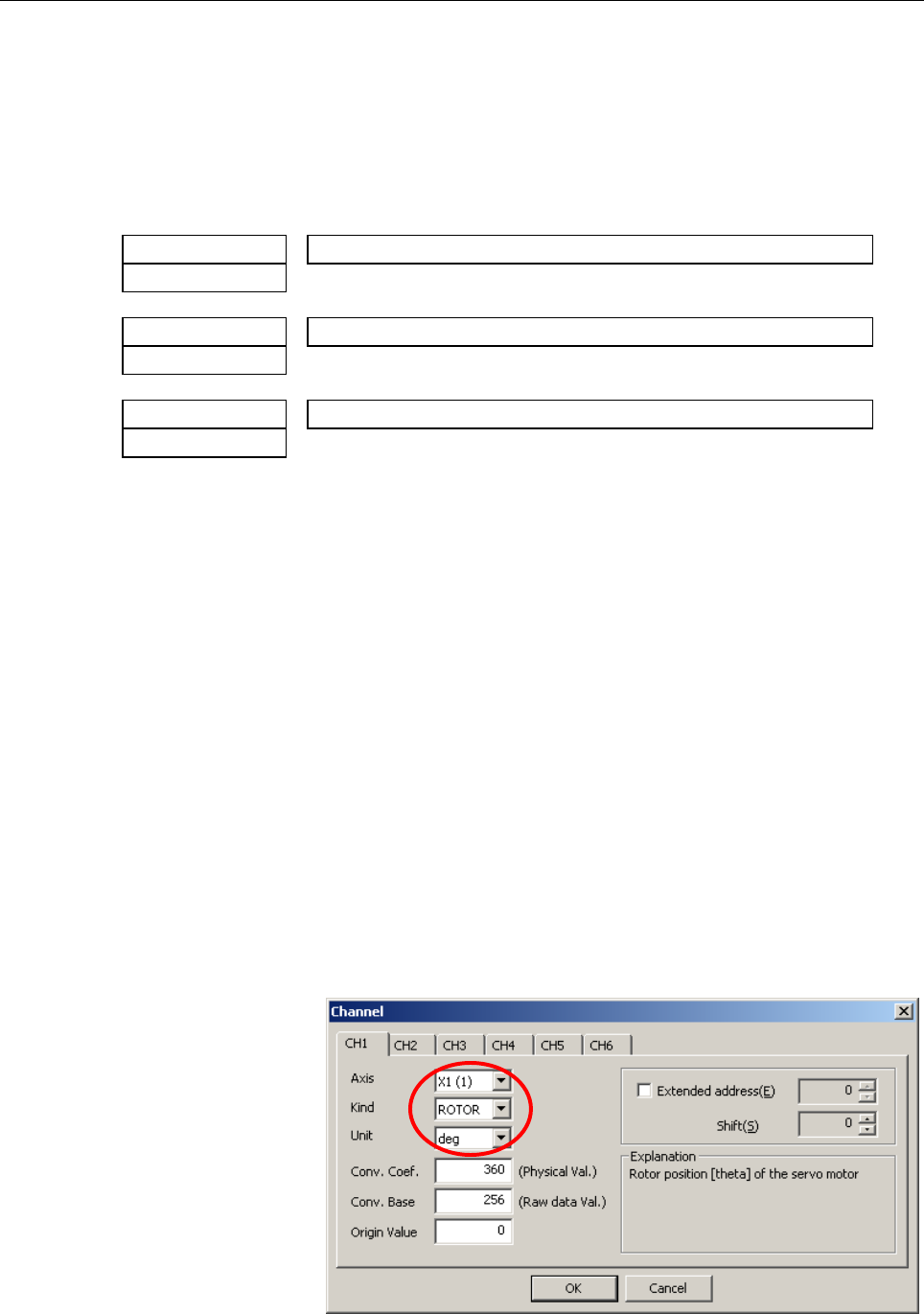

<1> Set channels as follows:

Channel 1: Activating phase

Select the target axis for measurement, and set "ROTOR" as the

data type.
