B-65270EN/05 4.SERVO FUNCTION DETAILS

- 307 -

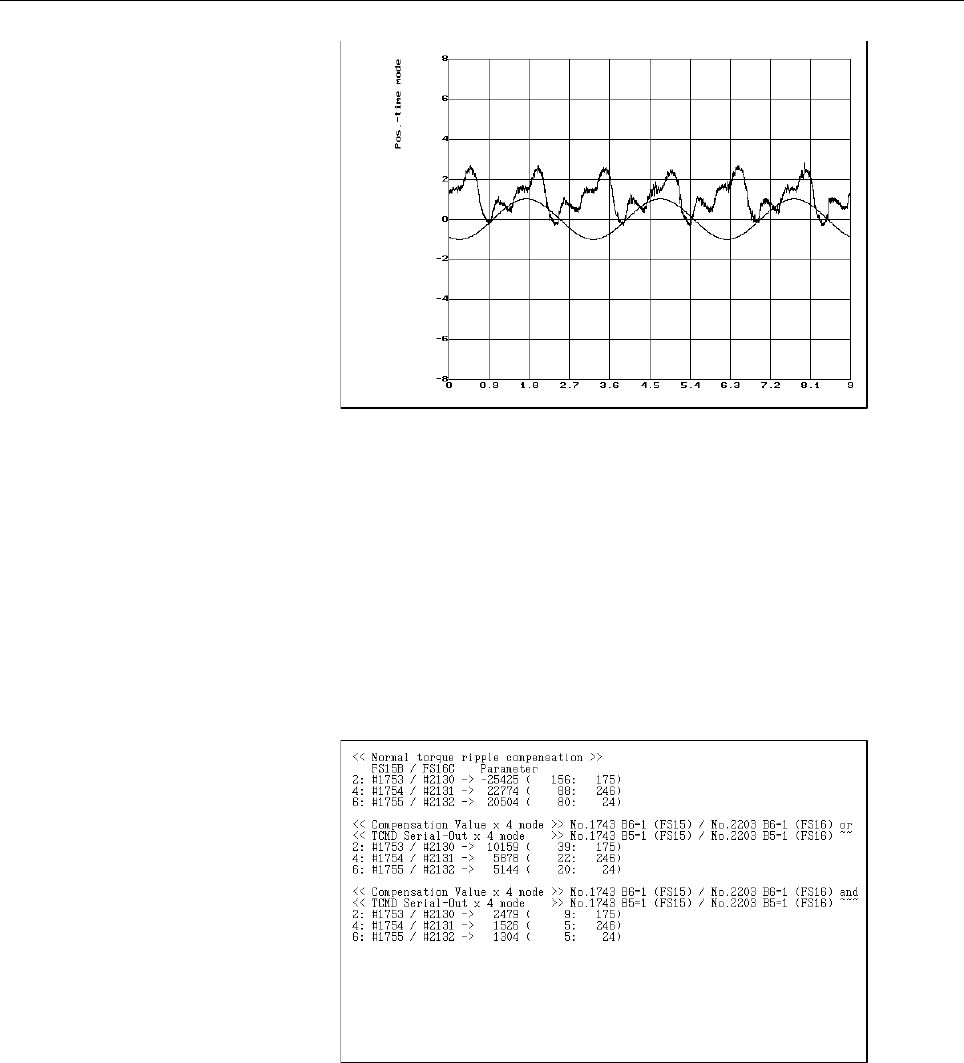

TCMD

Activating phase angle

<8> Pressing [CTRL]+[L] causes the correction parameter values to

be calculated as shown below. Enter the displayed parameter

values. Usually, use the correction parameter values displayed on

the top row.

The parameter values displayed on the middle and bottom rows

are used for special parameter setting.

Middle row: To be used when either quadruple smoothing

compensation or quadruple TCMD output is

selected.

Bottom row: To be used when both quadruple smoothing

compensation and quadruple TCMD output are

selected.

Parameter settings are displayed in a form of, for example:

-25425 ( 156: 175)

This format means that the correction gain (parameter high byte)

and correction phase (parameter low byte) are, respectively, 156

and 175.

Because 156 = 9Ch and 175 = AFh, parameter setting = 9CAFh

= -25425.
