4.SERVO FUNCTION DETAILS B-65270EN/05

- 360 -

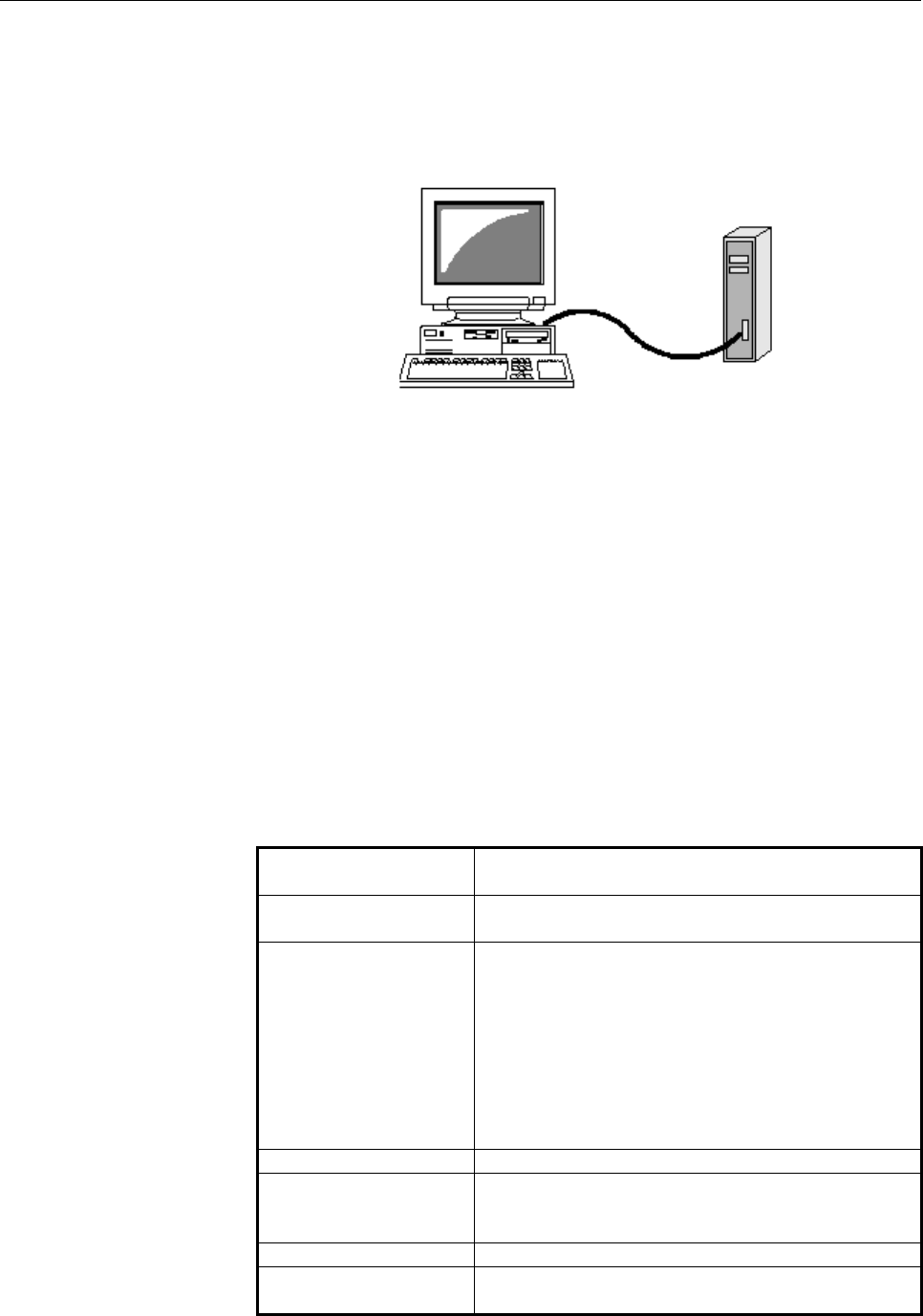

If you are using an HSSB, you may probably use an optical

cable to connect between the CNC and PC as shown below.

Using SERVO GUIDE does not require any additional

connection.

* Even if you are using a CNC display unit with PC functions,

such as the 160i, no additional connection is needed.

Optical cable

(3) Software specification overview

The servo tuning tool SERVO GUIDE has four windows ("parameter

window," "graph window," "program window," and "tuning

navigator"). The software specification overview of each window

follows.

(a) Parameter window

• Collects parameters from the NC, categorizes them by function,

and displays them.

• Supports servo and spindle parameters.

• Supports the automatic acc./dec. function for high speed and high

precision.

• Lets you modify NC parameters on the PC.

* The multipath system is supported by Version 3.00 and later

versions.

(Details of supported functions)

System setting

Extracting and displaying information related to servo

sections from CNC options.

Servo axis setting

Whether there is a separate detector, rotary/linear

motor, CMR, flexible feed gear, etc.

Acceleration/deceleration

Time constants for acc./dec. before interpolation and

acc./dec. after interpolation, speed difference related to

automatic deceleration at corner, arc radius-based

feedrate clamp setting, and acceleration-based

deceleration setting (ordinary control, advanced preview

control, AI advanced preview control, AI contour control,

AI nano-contour control, high-precision contour control,

Ai nano high-precision contour control, AI contour

control I/II)

Current control HRV, HRV2, HRV3, or HRV4 control

Velocity control

Velocity loop gain setting, setting related to filters for

measures for vibration in machine sections, vibration

control, and dual position feedback

Position control Setting of position gain

Contour error

suppression

Setting related to feed-forward, backlash acceleration,

and fine acc./dec. (for Series 16i and so on)
