4.SERVO FUNCTION DETAILS B-65270EN/05

- 250 -

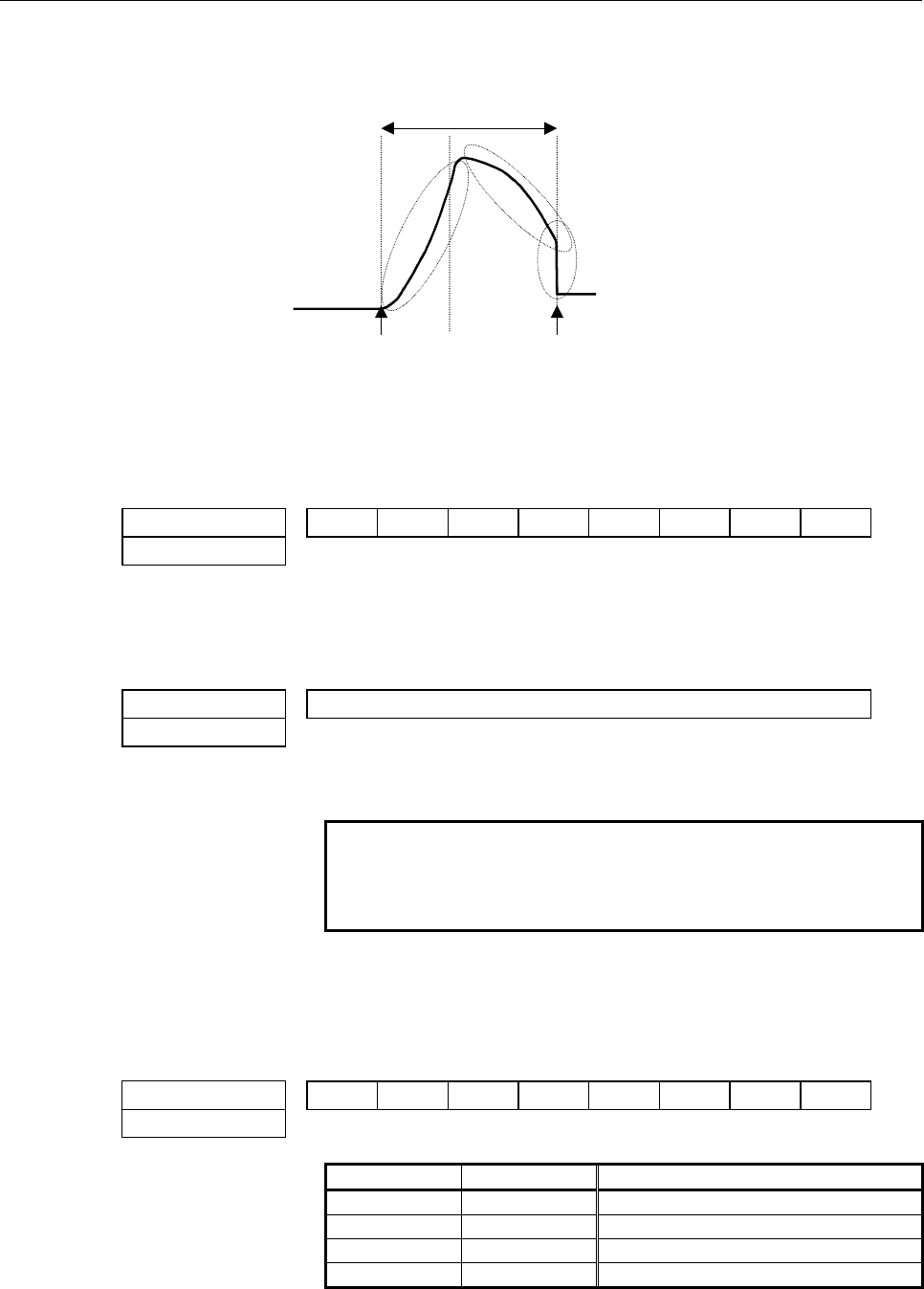

• Motor position waveform

he vertical axis is lifted.

Distortion easing function: Decreases

the machine elastic strain that increases

when the vertical axis is lifted.

The distortion easing function

decreases the shock that may occur

when the servo motor is de-energized.

Time specified in the brake control timer

Energizing by the amplifier is turned off.

Emergency stop input

Fig. 4.11.3 (b) Motor position waveform

Using this function requires specifying the following brake control

parameters.

Brake control function bit

#7 #6 #5 #4 #3 #2 #1 #0

1883 (FS15i)

BRKC

2005 (FS30i, 16i)

BRKC(#6) The brake control function is:

1 : Enabled ← Use this setting.

0 : Disabled.

Energizing delay time

1976 (FS15i)

Brake control timer

2083 (FS30i, 16i)

[Unit of data] ms

[Recommended value] 100ms

NOTE

If the Z-axis is connected to a multiaxis amplifier, it

is necessary to enable the brake control function

for all the axes connected to the multiaxis amplifier.

Set the time from the instant when an emergency stop signal is input

to PSM to the instant when the emergency stop function works in the

servo amplifier.

#7 #6 #5 #4 #3 #2 #1 #0

1750 (FS15i)

ESPTM1 ESPTM0

2210 (FS30i, 16i)

ESPTM1 ESPTM0 Delay time

0 0 50ms (default value)

0 1 100ms

1 0 200ms

1 1 400ms
