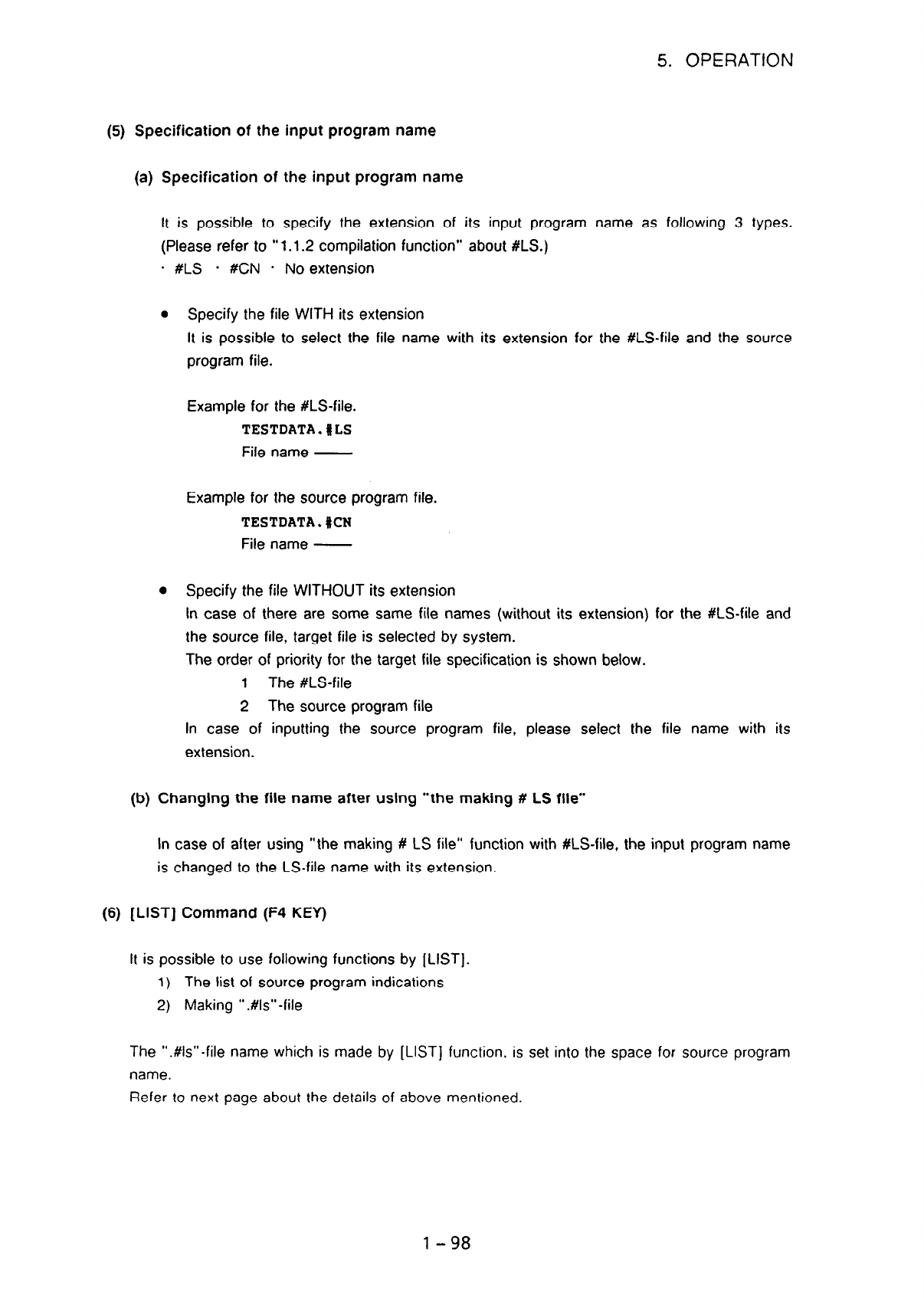

5. OPERATION

(5) Specification of the input program name

(a) Specification of the input program name

It is possible to specify the extension of its input program name as following 3 types.

(Please refer to “1.1.2 compilation function” about #LS.)

* #LS

* #CN * No extension

l Specify the file WITH its extension

It is possible to select the file name with its extension for the #LS-file and the source

program file.

Example for the #LS-file.

TESTDATA.#LS

File name -

Example for the source program file.

TESTDATA.#CN

File name -

l Specify the file WITHOUT its extension

In case of there are some same file names (without its extension) for the #LS-file and

the source file, target file is selected by system.

The order of priority for the target file specification is shown below.

1 The #LS-file

2 The source program file

In case of inputting the source program file, please select the file name with its

extension.

(b) Changing the file name after using “the making # LS file”

In case of after using “the making # LS file” function with #LS-file, the input program name

is changed to the LS-file name with its extension.

(6) [LIST] Command (F4 KEY)

It is possible to use following functions by [LIST].

1) The list of source program indications

2) Making “.#ls”-file

The “.#ls”-file name which is made by [LIST] function. is set into the space for source program

name.

Refer to next page about the details of above mentioned.

l-98
