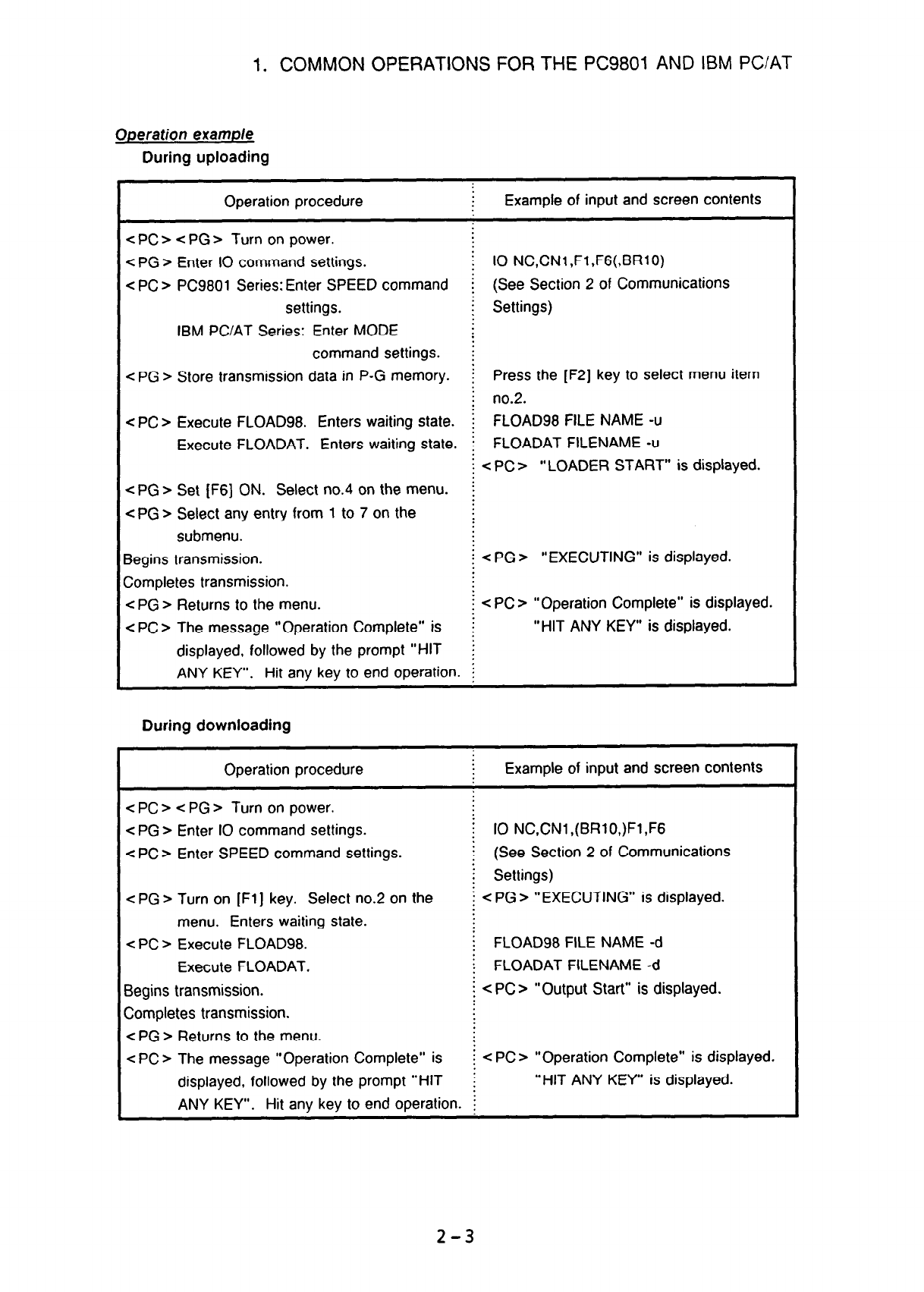

FAPT Ladder for PC Operators manual Page 182

Operators manual

Page of 311

/ 311

1. COMMON OPERATIONS FOR THE PC9801 AND IBM PC/AT

Operation examde

During uploading

Operation procedure

c PC > < PG > Turn on power.

Example of input and screen contents

< PG > Enter IO command settings.

; IO NC,CNl ,Fl ,FG(,BRlO)

c PC > PC9801 Series: Enter SPEED command

; (See Section 2 of Communications

settings.

i Settings)

IBM PC/AT Series: Enter MODE

command settings. i

< PG > Store transmission data in P-G memory.

: Press the [F2] key to select menu item

i no.2.

< PC > Execute FLOAD98. Enters waiting state.

i FLOAD98 FILE NAME -u

Execute FLOADAT. Enters waiting state. i FLOADAT FILENAME -u

i < PC > “LOADER START” is displayed.

< PG > Set [F6] ON. Select no.4 on the menu.

c PG > Select any entry from 1 to 7 on the

submenu.

3egins transmission.

i c PG > “EXECUTING” is displayed.

Completes transmission.

e PG > Returns to the menu.

i =z PC > “Operation Complete” is displayed.

( PC > The message “Operation Complete” is

“HIT ANY KEY” is displayed.

displayed, followed by the prompt “HIT

;

ANY KEY”. Hit any key to end operation. i

During downloading

Operation procedure

Example of input and screen contents

< PC > < PG > Turn on power.

< PG > Enter IO command settings.

< PC > Enter SPEED command settings.

; IO NC,CNl,(BRlO,)Fl,FG

i (See Section 2 of Communications

i Settings)

< PG > Turn on [Fl] key. Select no.2 on the

menu. Enters waiting state.

< PC > Execute FLOAD98.

Execute FLOADAT.

Begins transmission.

Completes transmission.

<PG> Returns to the menu.

! =z PG > “EXECUTING” is displayed.

; FLOAD98 FILE NAME -d

; FLOADAT FILENAME -d

i <PC> “Output Start” is displayed.

< PC > The message “Operation Complete” is

: < PC > “Operation Complete” is displayed.

displayed, followed by the prompt “HIT

“HIT ANY KEY” is displayed.

ANY KEY”. Hit any key to end operation. i
