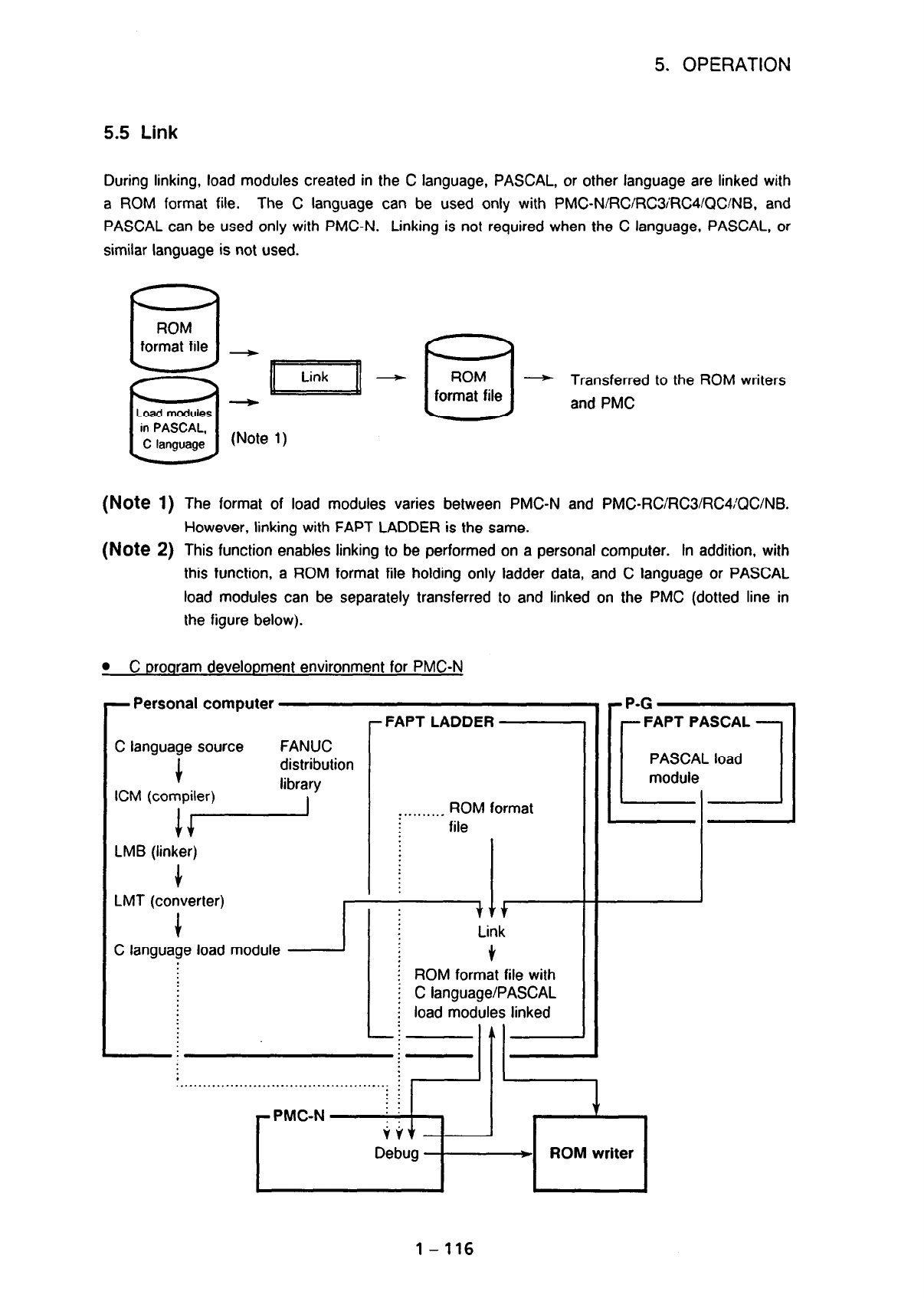

5. OPERATION

5.5 Link

During linking, load modules created in the C language, PASCAL, or other language are linked with

a ROM format file. The C language can be used only with PMCNIRCIRC3iRC4/QCINB. and

PASCAL can be used only with PMC-N. Linking is not required when the C language, PASCAL, or

similar language is not used.

Transferred to the ROM writers

and PMC

(Note 1) The format of load modules varies between PMC-N and PMCRC/RC3/RC4:QC/NB.

However, linking with FAPT LADDER is the same.

(Note 2) This function enables linking to be performed on a personal computer. In addition, with

this function, a ROM format file holding only ladder data, and C language or PASCAL

load modules can be separately transferred to and linked on the PMC (dotted line in

the figure below).

l C prooram development environment for PMC-N

- Personal computer

C language source

FANUC

distribution

ICM (compiler)

library

LMB (linker)

LMT (converter)

C language load module

ttt

Link

ROM format file with

C language/PASCAL

load modules linked

- FAPT LADDER

. . . . . . . . . _ ROM format

file

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . .

PMC-N

l P-G

FAPT PASCAL

PASCAL load

Debug

1-116
