COMMON OPERATIONS FOR THE PC9801 AND IBM PC/AT

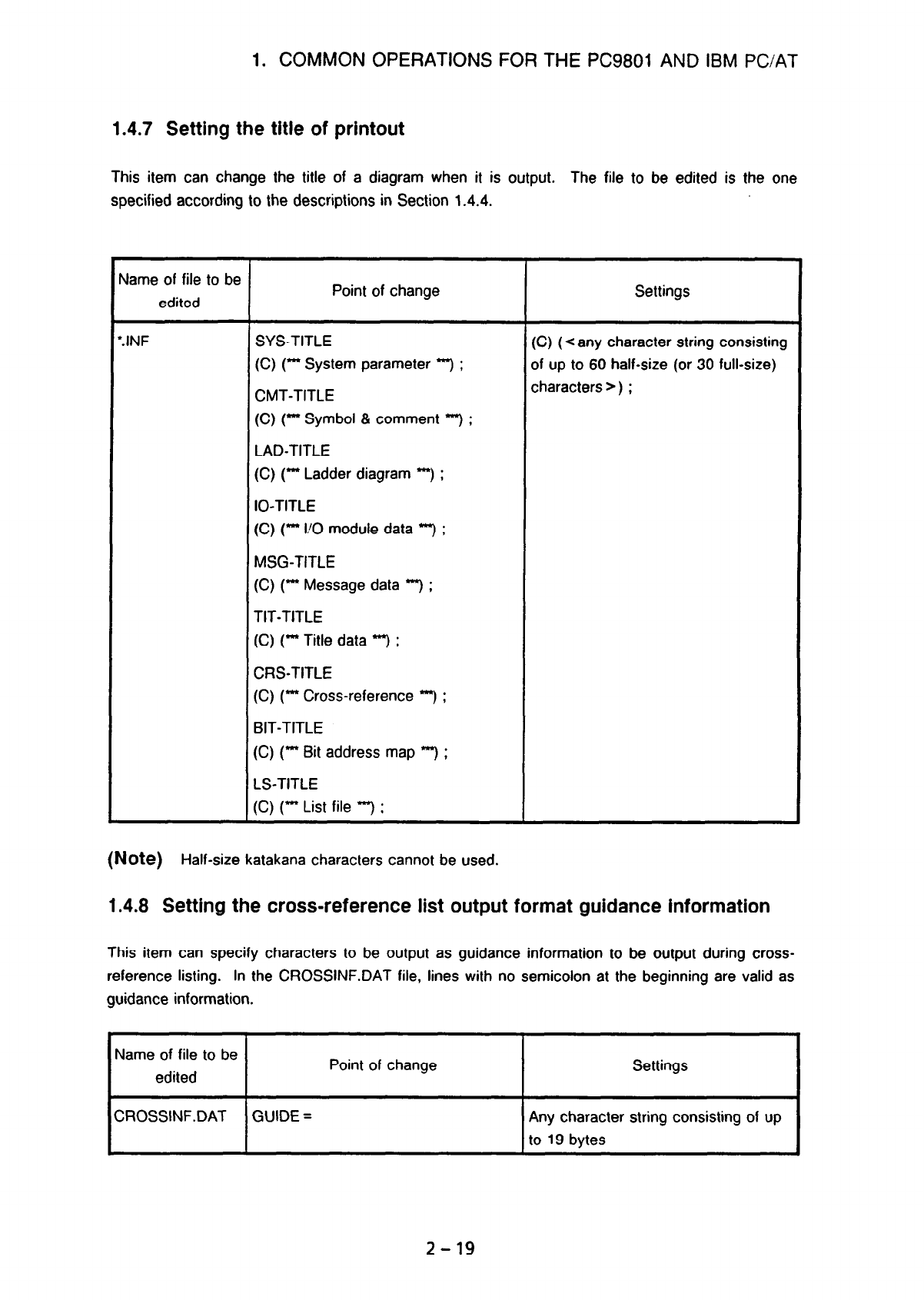

1.4.7 Setting the

title of printout

This item can change

the title of a diagram when it is output. The file to be edited is the one

specified according to the descriptions in Section 1.4.4.

Vame of file to be

edited

:INF

Point of change

~~ -T

Settings

SYS-TITLE

CMT-TITLE

LAD-TITLE

IO-TITLE

MSG-TITLE

TIT-TITLE

CRS-TITLE

BIT-TITLE

LS-TITLE

of up to 60 half-size (or 30 full-size)

characters > ) ;

(Note) Half-size katakana characters cannot be used.

1.4.8 Setting the cross-reference list output format guidance information

This item can specify characters to be output as guidance information to be output during cross-

reference listing. In the CROSSINF.DAT file, lines with no semicolon at the beginning are valid as

guidance information.

Name of file to be

edited

Point of change Settings

CROSSINF.DAT GUIDE = Any character string consisting of up

to 19 bytes

2-19
