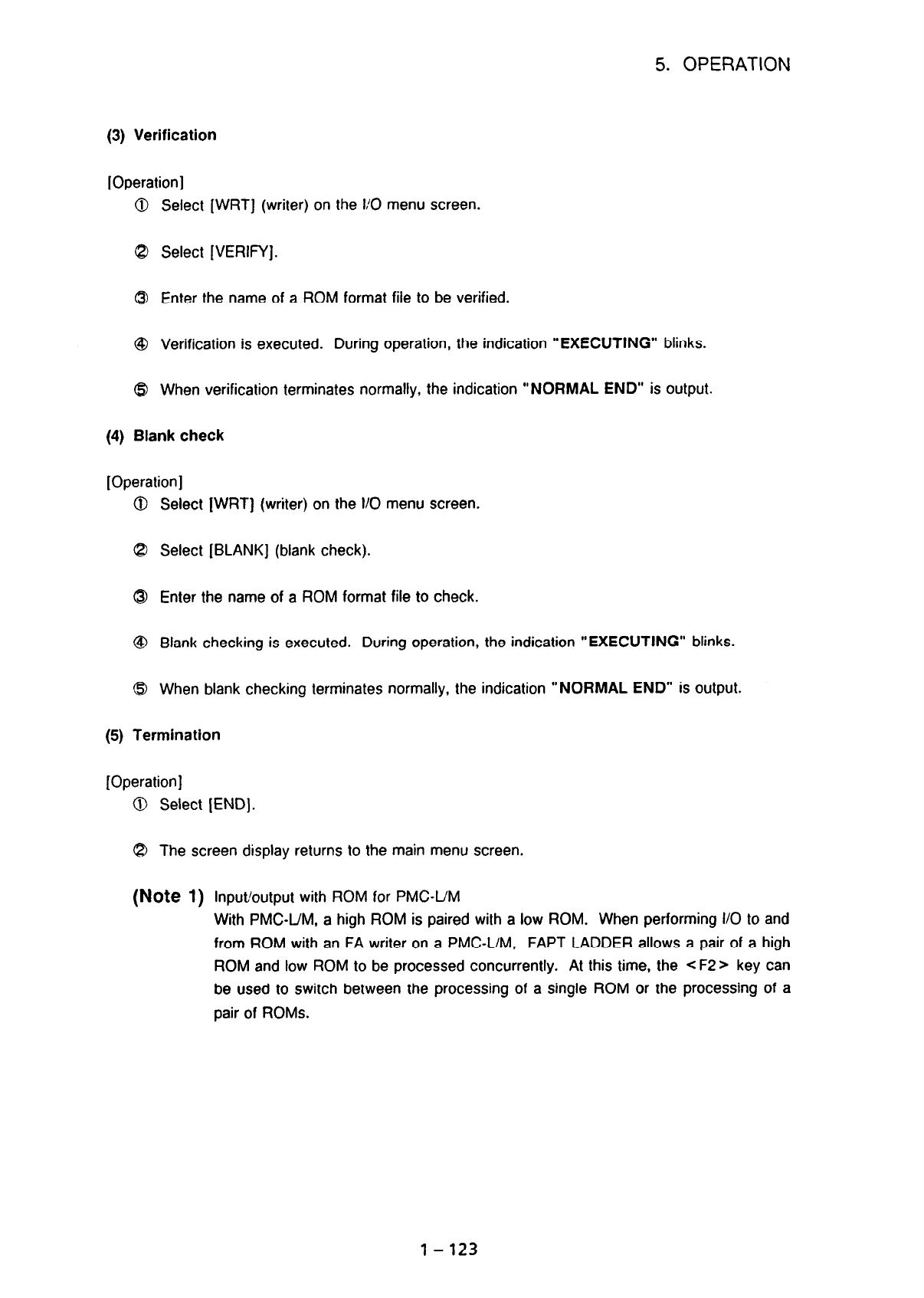

5. OPERATION

(3) Verification

[Operation]

0 Select [WRT] (writer) on the I/O menu screen.

8 Select [VERIFY].

@ Enter the name of a ROM format file to be verified.

@ Verification is executed. During operation, the indication “EXECUTING” blinks.

8 When verification terminates normally, the indication “NORMAL END” is output.

(4) Blank check

[Operation]

0 Select [WRT] (writer) on the I10 menu screen.

8 Select [BLANK] (blank check).

(3 Enter the name of a ROM format file to check.

@I Blank checking is executed. During operation, the indication “EXECUTING” blinks.

@ When blank checking terminates normally, the indication “NORMAL END” is output.

(5) Termination

[Operation]

0 Select [END].

8 The screen display returns to the main menu screen.

(Note 1) Input/output with ROM for PMC-UM

With PMC-UM, a high ROM is paired with a low ROM. When performing I/O to and

from ROM with an FA writer on a PMC-L/M, FAPT LADDER allows a pair of a high

ROM and low ROM to be processed concurrently. At this time, the < F2 > key can

be used to switch between the processing of a single ROM or the processing of a

pair of ROMs.

1 - 123
