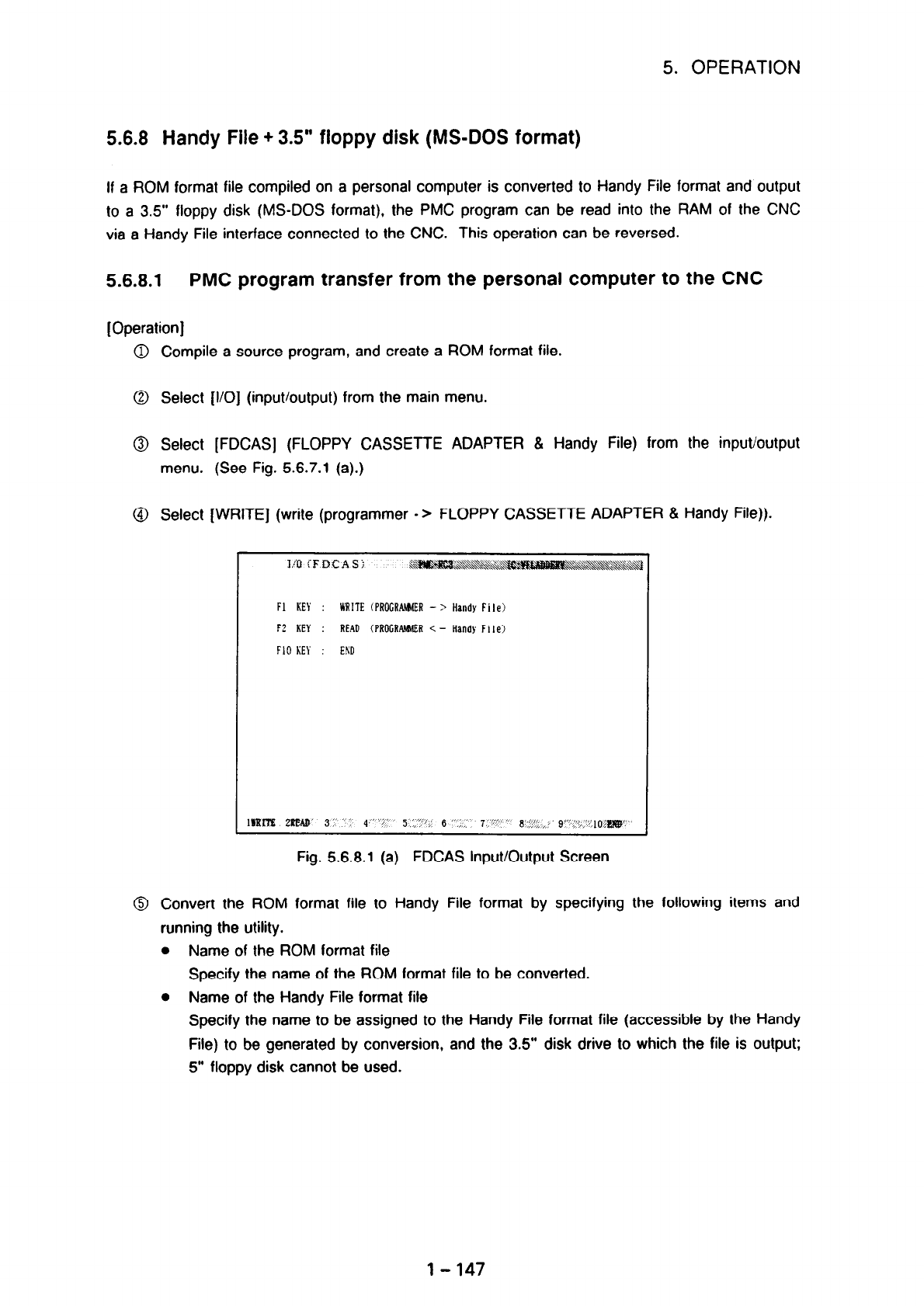

5. OPERATION

56.8 Handy File + 3.5” floppy disk (MS-DOS format)

If a ROM format file compiled on a personal computer is converted to Handy File format and output

to a 3.6” floppy disk (MS-DOS format), the PMC program can be read into the RAM of the CNC

via a Handy File interface connected to the CNC. This operation can be reversed.

5.6.8.1

PMC program transfer from the personal computer to

the CNC

[Operation]

Compile a source program, and create a ROM format file.

Select [l/O] (input/output) from the main menu.

Select [FDCAS] (FLOPPY CASSETTE ADAPTER & Handy File) from

menu. (See Fig. 5.6.7.1 (a).)

the input/output

Select [WRITE] (write (programmer -> FLOPPY CASSETTE ADAPTER & Handy File)).

IKI iFDCASi

\\\m-

Fl KEY : WRITE (PAOCRAhSA --> Handy File)

F2 KEY : READ (PROCRMMR < - Handy File)

FlO KEY : ESD

Fig. 5.6.8.1 (a) FDCAS Input/Output Screen

Convert the ROM format file to Handy File format by specifying the following items and

running the utility.

l Name of the ROM format file

Specify the name of the ROM format file to be converted.

l Name of the Handy File format file

Specify the name to be assigned to the Handy File format file (accessible by the Handy

File) to be generated by conversion, and the 3.5” disk drive to which the file is output;

5” floppy disk cannot be used.

l-147
