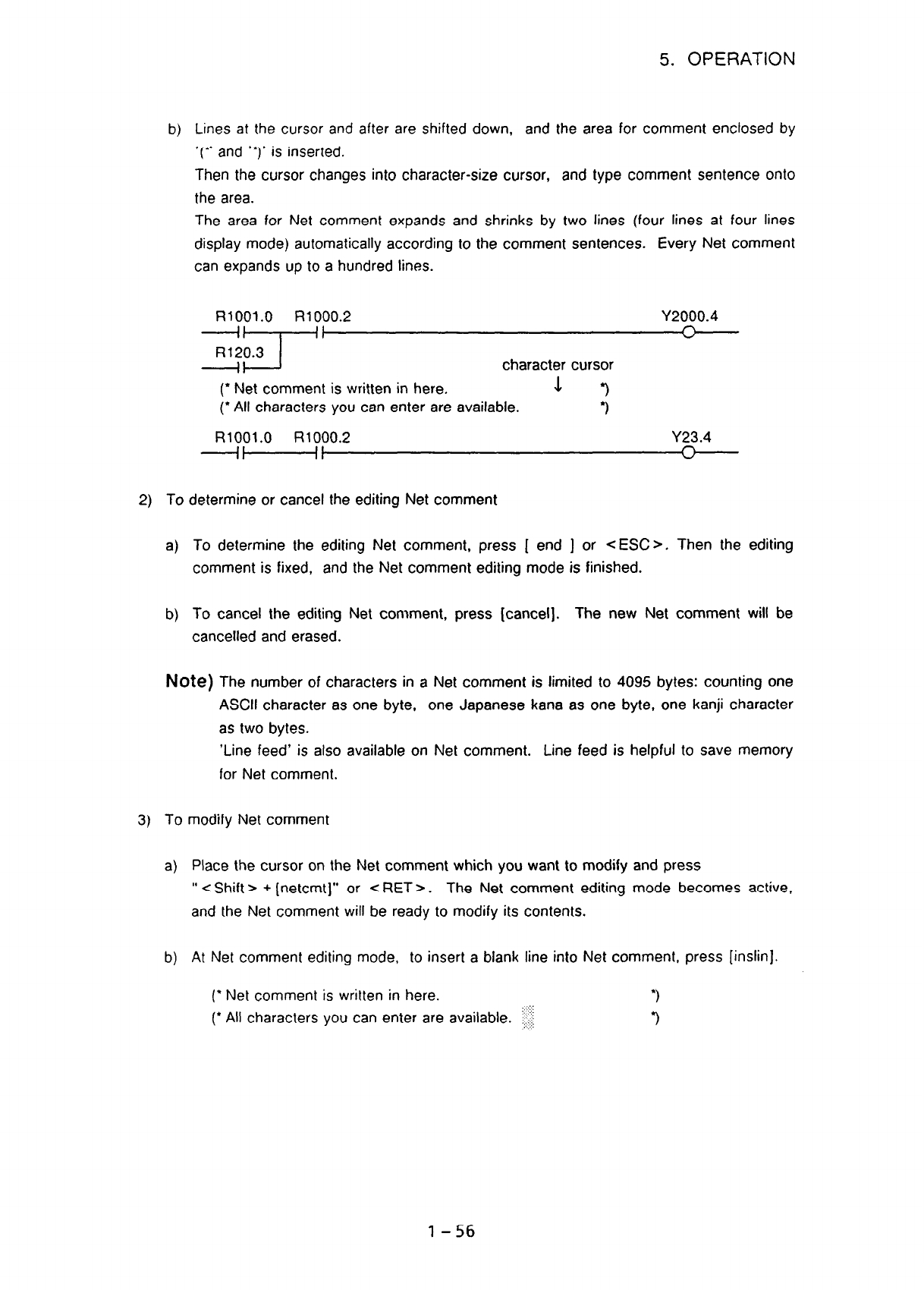

5. OPERATION

b) Lines at the cursor and after are shifted down,

and the area for comment enclosed by

‘(” and “)’ is inserted.

Then the cursor changes into character-size cursor, and type comment sentence onto

the area.

The area for Net comment expands and shrinks by two lines (four lines at four lines

display mode) automatically according to the comment sentences. Every Net comment

can expands up to a hundred lines.

R1OO1.O R1000.2

=Li”

R120.3

Y2000.4

”

character cursor

(’ Net comment is written in here.

4 9

(* All characters you can enter are available.

‘)

R1OO1.O R1000.2 Y23.4

+H-

2) To determine or cancel the editing Net comment

a) To determine the editing Net comment, press [ end ] or < ESC>. Then the editing

comment is fixed, and the Net comment editing mode is finished.

b) To cancel the editing Net comment, press [cancel]. The new Net comment will be

cancelled and erased.

Note) The number of characters in a Net comment is limited to 4095 bytes: counting one

ASCII character as one byte, one Japanese kana as one byte, one kanji character

as two bytes.

‘Line feed’ is also available on Net comment. Line feed is helpful to save memory

for Net comment.

3) To modify Net comment

Place the cursor on the Net comment which you want to modify and press

” <Shift > + [netcmt]” or < RET > . The Net comment editing mode becomes active,

and the Net comment will be ready to modify its contents.

At Net comment editing mode, to insert a blank line into Net comment, press [inslin].

(’ Net comment is written in here.

(’ All characters you can enter are available. I:::

‘)

1-56
