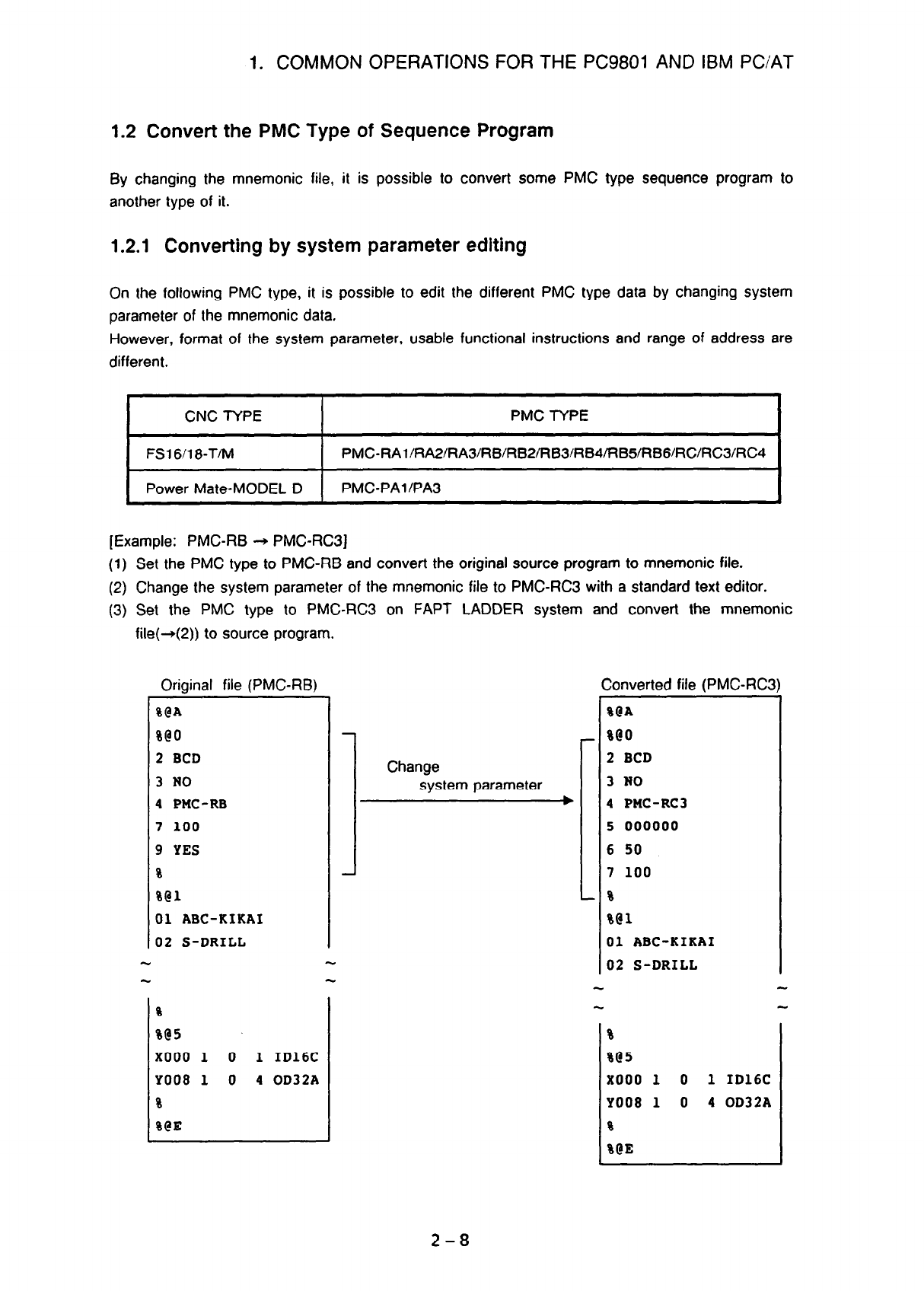

1. COMMON OPERATIONS FOR THE PC9801 AND IBM PCiAT

1.2 Convert the PMC Type of Sequence Program

By changing the mnemonic file, it is possible to convert some PMC type sequence program to

another type of it.

1.2.1 Converting by system parameter editing

On the following

parameter of the

However, format

different.

PMC type, it is possible to edit the different PMC type data by changing system

mnemonic data.

of the system parameter, usable functional instructions and range of address are

CNC TYPE

PMC TYPE

FS16f 18-T/M

PMCRAl/RA2/RA3/RB/RB2/RB3/RB4/RB!YRB6~RC/RC3/RC4

Power Mate-MODEL D

PMC-PA1 /PA3

(1)

(2)

(3)

[Example: PMC-RB + PMC-RC3]

Set the PMC type to PMC-RB and convert the original source program to mnemonic file.

Change the system parameter of the mnemonic fife to PMCRC3 with a standard text editor.

Set the PMC type to PMC-RC3 on FAPT LADDER system and convert the mnemonic

file(+(2)) to source program.

Original file (PMC-RB)

%@A

%@O

2 ECD

3 NO

4 PMC-RB

7 100

9 YES

%@l

01 ABC-KIKAI

02 S-DRILL

%@5

X000 1 0 1 ID16C

YO08 1 0 4 OD32A

%@E

Change

system parameter

Converted file (PMCRC3

%@A

%@O

2 BCD

3 NO

4 PMC-RC3

5 000000

6 50

7 100

%@l

01 ABC-KIKAI

02 S-DRILL

$65

X000 1 0 1 IDl6C

YO08 1 0 4 OD32A

%@E

2-8
