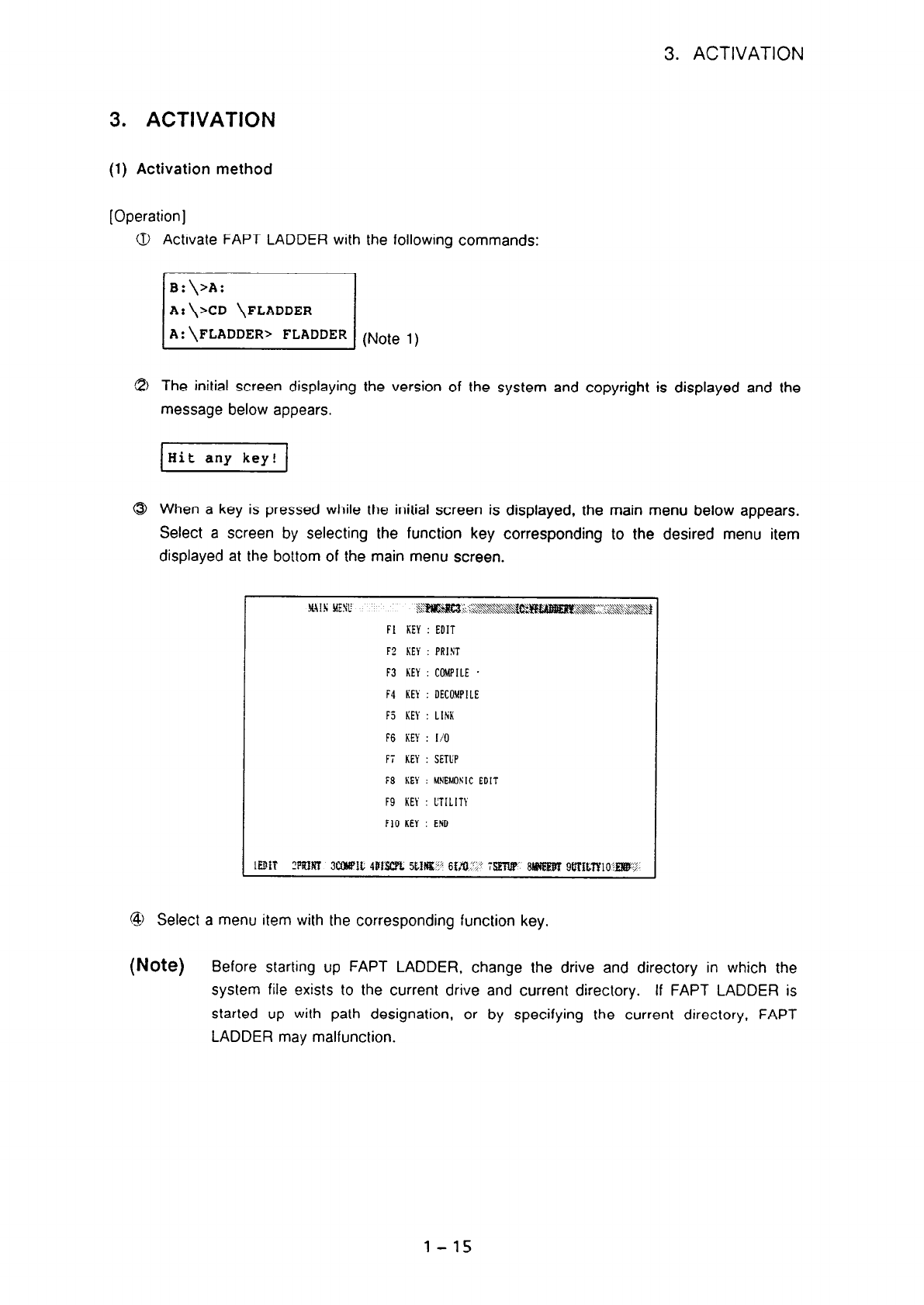

3. ACTIVATION

(1) Activation method

[Operation]

Activate FAPT LADDER with

the following commands:

B:\>A:

A:\xD \FLADDER

A: \FLADDER> FLADDER (Note 1)

The initial screen displaying the version of the system and copyright is displayed and the

message below appears.

When a key is pressed while the initial screen is displayed, the main menu below appears.

Select a screen by selecting the function key corresponding to the desired menu item

displayed at the bottom of the main menu screen.

Fi KEY : SETUP

F8 KEY : MNEMONIC EDIT

F9 KEY : UT[LlTt

FlO KEY : END

Select a menu item with the corresponding function key.

(Note) Before starting up FAPT LADDER, change the drive and directory in which the

system file exists to the current drive and current directory. If FAPT LADDER is

started up with path designation, or by specifying the current directory, FAPT

LADDER may malfunction.
