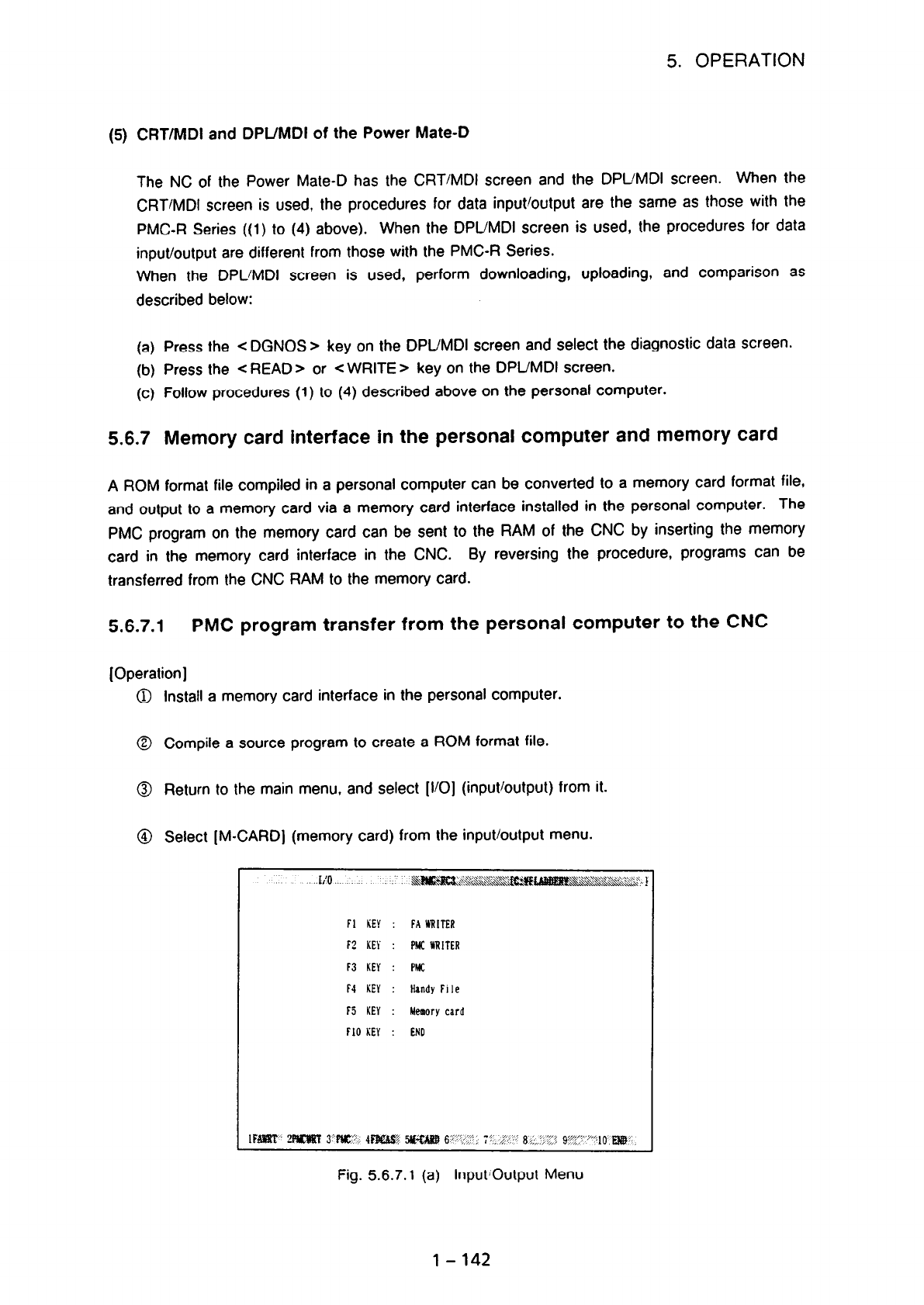

5. OPERATION

(5)

CRT/MD1 and DPUMDI of the Power Mate-D

The NC of the Power Mate-D has the CRT/MD1 screen and the DPUMDI screen. When the

CRTlMDl screen is used, the procedures for data input/output are the same as those with the

PMC-R Series ((1) to (4) above). When the DPUMDI screen is used, the procedures for data

input/output are different from those with the PMC-R Series.

When the DPL/MDI screen is used, perform downloading, uploading, and comparison as

described below:

(a)

Press the < DGNOS > key on the DPUMDI screen and select the diagnostic data screen.

Press the c READ> or c WRITE> key on the DPUMDI screen.

Follow procedures (1) to (4) described above on the personal computer.

5.6.7

Memory card interface in the personal computer and memory card

A ROM format file compiled in a personal computer can be converted to a memory card format file,

and output to a memory card via a memory card interface installed in the personal computer. The

PMC program on the memory card can be sent to the RAM of the CNC by inserting the memory

card in the memory card interface in the CNC.

By reversing the procedure, programs can be

transferred from the CNC RAM to the memory card.

5.6.7.1

PMC program transfer from the personal computer to the CNC

[Operation]

Install a memory card interface in the personal computer.

Compile a source program to create a ROM format file.

Return to the main menu, and select [l/O] (input/output) from

it.

Select [M-CARD] (memory card) from the input/output menu.

F4 KEY : Handy File

F5 KEY : Memory card

Fig. 5.6.7.1 (a) InputiOutput Menu

1-142
