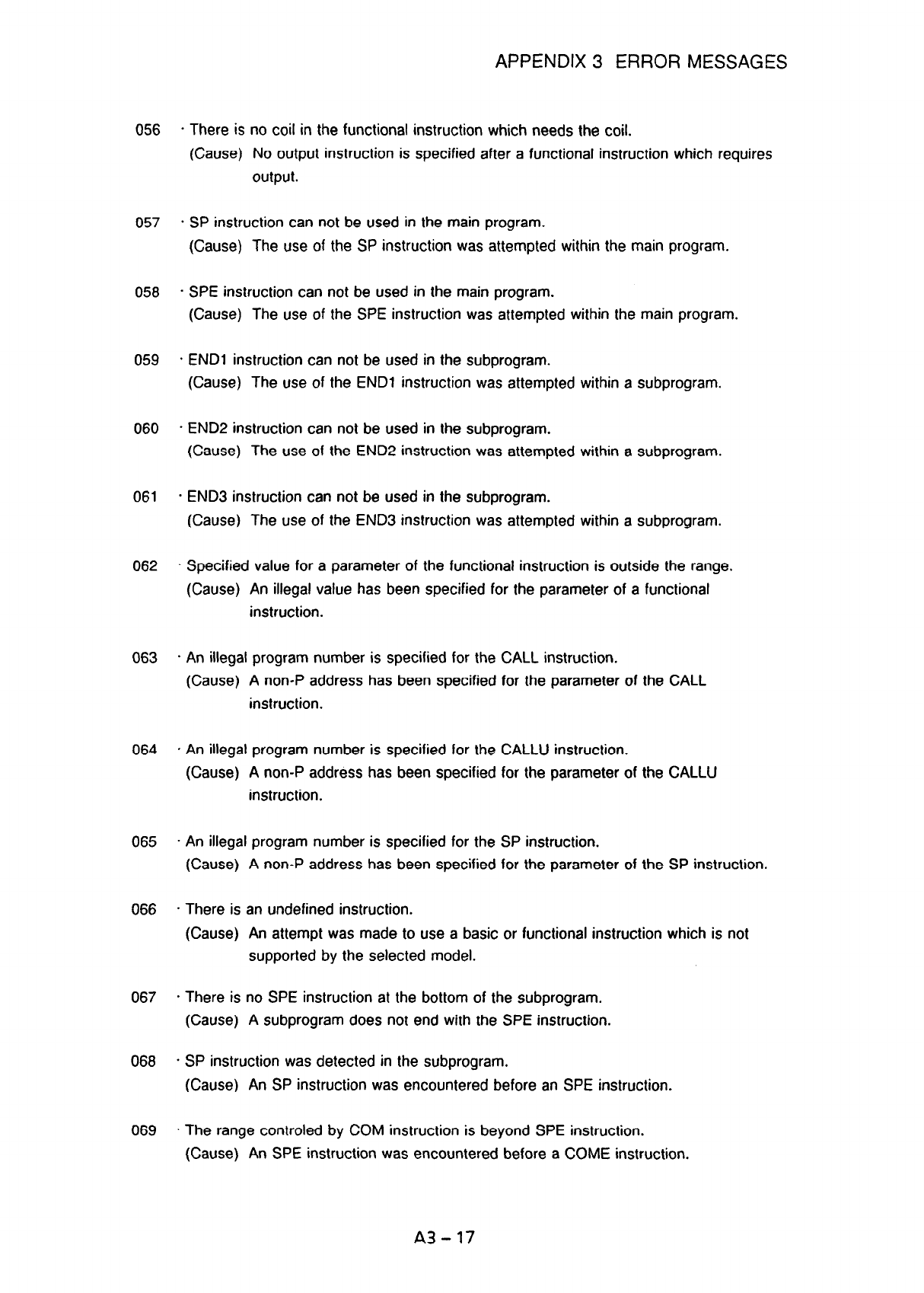

APPENDIX 3 ERROR MESSAGES

056

057

058

059

060

061

062

063

064

065

066

067

068

069

* There is no coil in the functional instruction which needs the coil.

(Cause) No output instruction is specified after a functional instruction which requires

output.

* SP instruction can not be used in the main program.

(Cause) The use of the SP instruction was attempted within the main program.

. SPE instruction can not be used in the main program.

(Cause) The use of the SPE instruction was attempted within the main program.

* END1 instruction can not be used in the subprogram.

(Cause) The use of the END1 instruction was attempted within a subprogram.

* END2 instruction can not be used in the subprogram.

(Cause) The use of the END2 instruction was attempted within a subprogram.

- END3 instruction can not be used in the subprogram.

(Cause) The use of the END3 instruction was attempted within a subprogram.

* Specified value for a parameter of the functional instruction is outside the range.

(Cause) An illegal value has been specified for the parameter of a functional

instruction.

* An illegal program number is specified for the CALL instruction.

(Cause) A non-P address has been specified for the parameter of the CALL

instruction.

’ An illegal program number is specified for the CALLU instruction.

(Cause) A non-P address has been specified for the parameter of the CALLU

instruction.

. An illegal program number is specified for the SP instruction.

(Cause) A non-P address has been specified for the parameter of the SP instruction.

. There is an undefined instruction.

(Cause) An attempt was made to use a basic or functional instruction which is not

supported by the selected model.

* There is no SPE instruction at the bottom of the subprogram.

(Cause) A subprogram does not end with the SPE instruction.

* SP instruction was detected in the subprogram.

(Cause) An SP instruction was encountered before an SPE instruction.

* The range controled by COM instruction is beyond SPE instruction.

(Cause) An SPE instruction was encountered before a COME instruction.

A3-17
