1. COMMON OPERATIONS FOR THE PC9801 AND IBM PC/AT

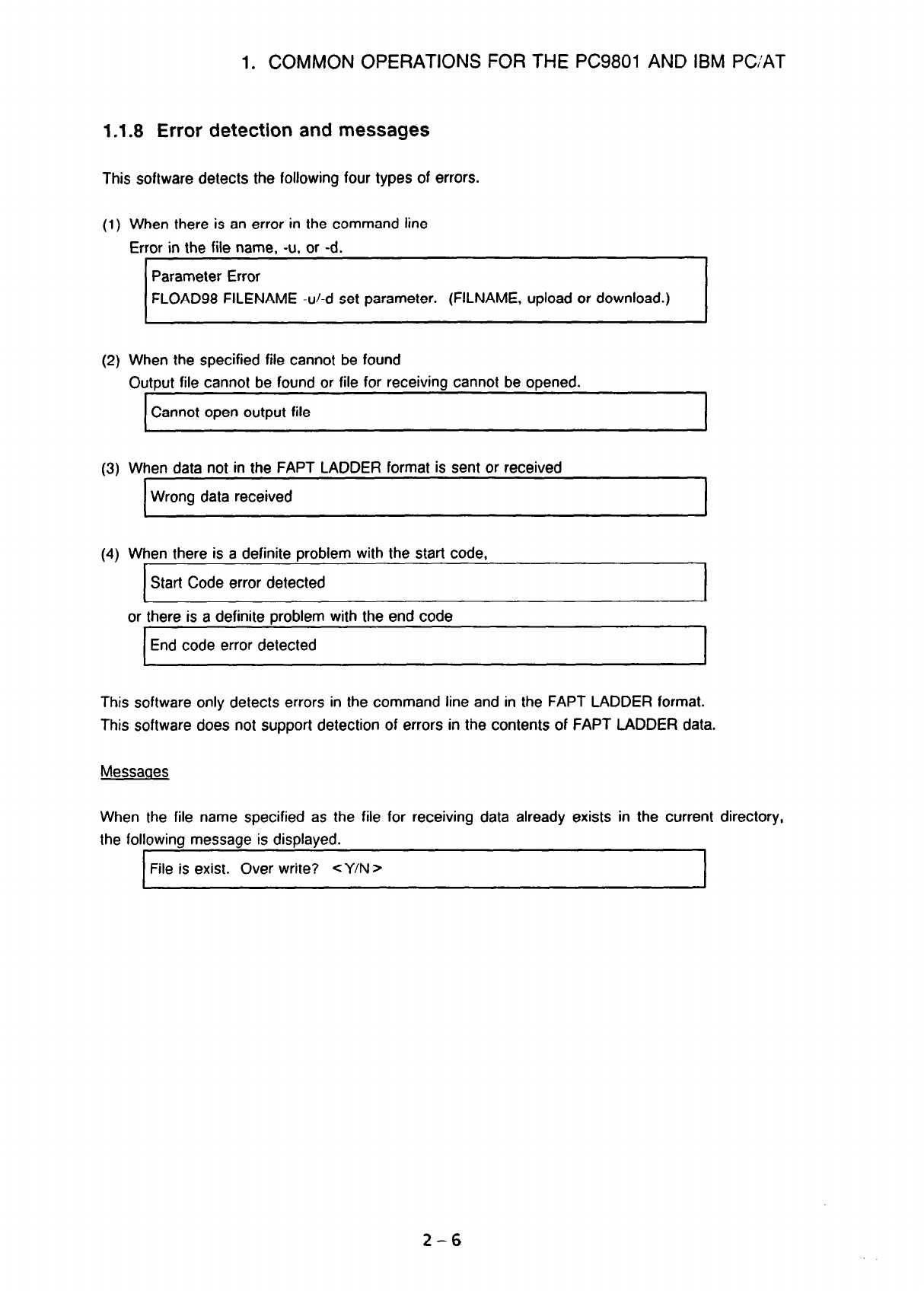

1 .1.8 Error detection and messages

This software detects the following four types of

errors.

(1)

(2)

(3)

(4)

When there is an error in the command line

Error in the file name, -u. or -d.

Parameter Error

FLOAD98 FILENAME -u/-d set parameter. (FILNAME, upload or download.)

When the specified file cannot be found

Output file cannot be found or file for receiving cannot be opened.

I~- ~~~

Cannot open output file

When data not in the FAPT LADDER format is sent or received

Wrong data received

When there is a definite problem with the start code,

Start Code error detected

or there is a definite oroblem with the end code

End code error detected

This software only detects errors in the command line and in the FAPT LADDER format.

This software does not support detection of errors in the contents of FAPT LADDER data.

Messaaes

When the file name specified as the file for receiving data already exists in the current directory,

the following message is displayed.

File is exist. Over write? <Y/N >

2-6
