FAPT Ladder for PC Operators manual Page 165

Operators manual

Page of 311

/ 311

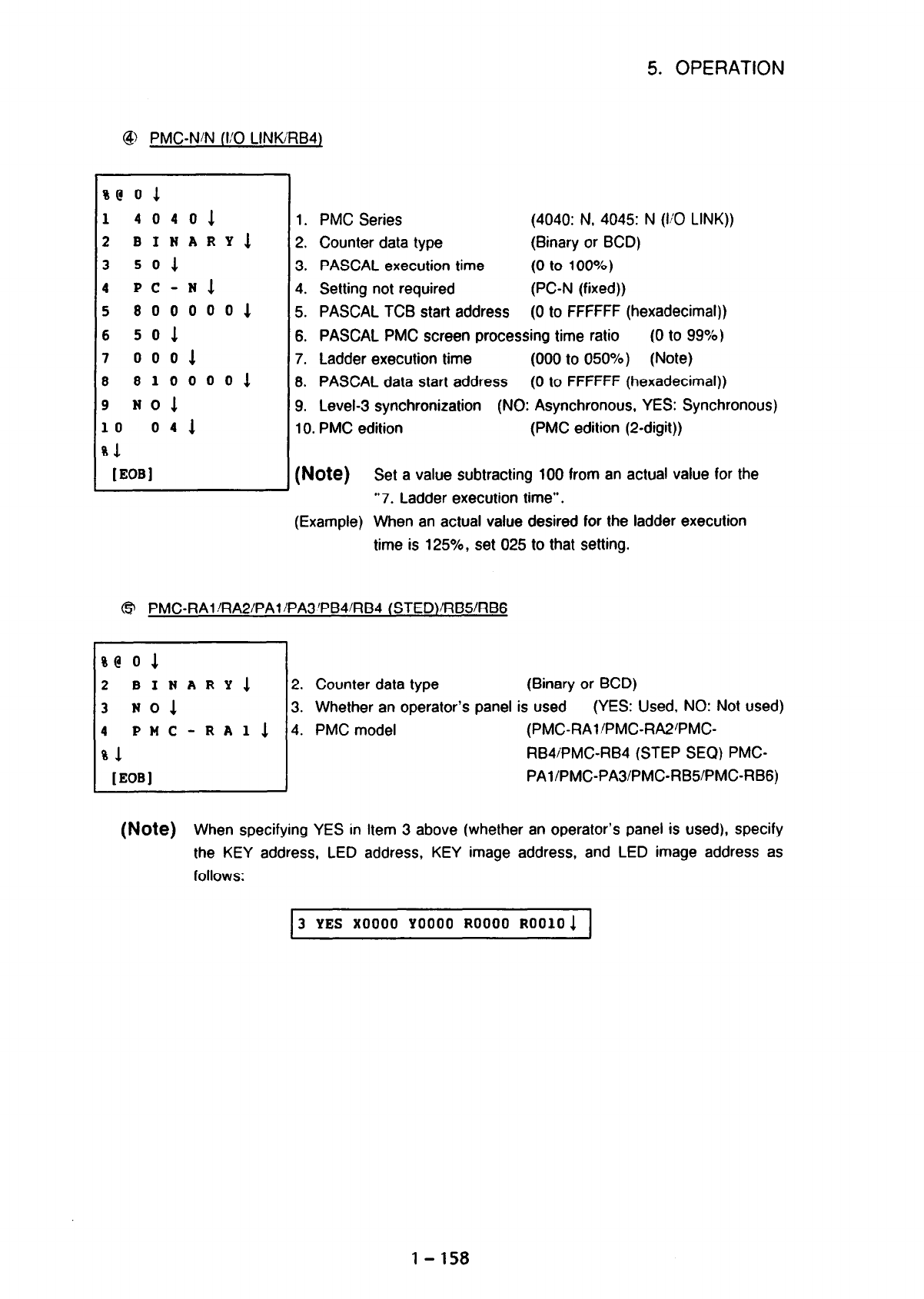

5. OPERATION

@ PMC-N/N (VO LINKRB4)

%@ 0 1

1 4040~

2 BINARY1

3 SOS-

4 PC-N1

5 8000001

6 581

7 0001

8 8100001

9 NOi

10 041

[EOBI

PMC Series

Counter data type

PASCAL execution time

Setting not required

PASCAL TCB start address

(4040: N, 4045: N (I!‘0 LINK))

(Binary or BCD)

(0 to 100%)

(PC-N (fixed))

(0 to FFFFFF (hexadecimal))

PASCAL PMC screen processing time ratio

(0 to 99%)

Ladder execution time (000 to 050%) (Note)

PASCAL data start address (0 to FFFFFF (hexadecimal))

Level-3 synchronization (NO: Asynchronous, YES: Synchronous)

10. PMC edition

(PMC edition (2-digit))

(Note) Set a value subtracting 100 from an actual value for the

"7. Ladder execution time”.

(Example) When an actual value desired for the ladder execution

time is 125%, set 025

to that setting.

PMC-RAl !RA2IPAl /PA3’PB4RB4 (STED)/RB5/RBG

%@ 0 1

2 BINARY1 2.

3 No1 3.

4 PMC- RAll 14.

[EOBI

(Note) When specifying

YES in Item 3 above (whether an operator’s panel is used), specify

the KEY address, LED address, KEY image address, and LED image address as

follows:

Counter data type

(Binary or BCD)

Whether an operator’s panel is used

(YES: Used, NO: Not used)

PMC model

(PMC-RAl/PMC-RA2’PMC

RB4iPMC-RB4 (STEP SEQ) PMC-

PAl/PMCPA3/PMCRB5/PMCRBG)

3 YES X0000 YOOOO ROOOO ROOlOl

1-158
