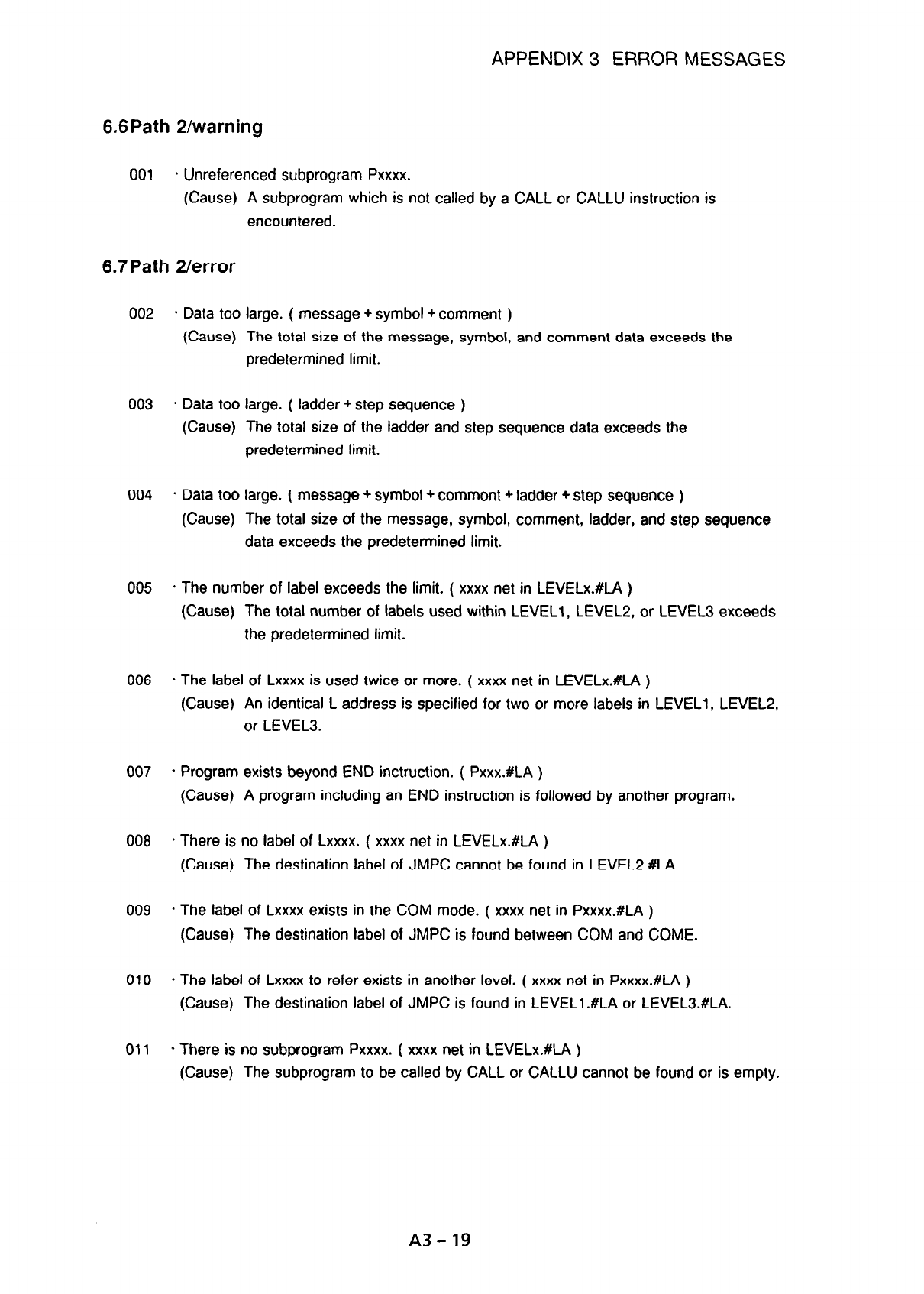

APPENDIX 3 ERROR MESSAGES

6.6Path 2/warning

001 * Unreferenced subprogram Pxxxx.

(Cause) A subprogram which is not called by a CALL or CALLU instruction is

encountered.

6.7 Path 2/error

002

003

004

005

006

007

008

009

010

011

* Data too large. ( message + symbol + comment )

(Cause) The total size of the message, symbol, and comment data exceeds the

predetermined limit.

* Data too large. ( ladder + step sequence )

(Cause) The total size of the ladder and step sequence data exceeds the

predetermined limit.

- Data too large. ( message + symbol + comment + ladder + step sequence )

(Cause) The total size of the message, symbol, comment, ladder, and step sequence

data exceeds the predetermined limit.

* The number of label exceeds the limit. ( xxxx net in LEVELx.#LA )

(Cause) The total number of labels used within LEVELl, LEVEL2, or LEVEL3 exceeds

the predetermined limit.

* The label of Lxxxx is used twice or more. ( xxxx net in LEVELx.#LA )

(Cause) An identical L address is specified for two or more labels in LEVELl, LEVEL2,

or LEVELB.

* Program exists beyond END inctruction. ( Pxxx.#LA )

(Cause) A program including an END instruction is followed by another program.

- There is no label of Lxxxx. ( xxxx net in LEVELx.#LA )

(Cause) The destination label of JMPC cannot be found in LEVEL2.#LA.

* The label of Lxxxx exists in the COM mode. ( xxxx net in Pxxxx.#LA )

(Cause) The destination label of JMPC is found between COM and COME.

- The label of Lxxxx to refer exists in another level. ( xxxx net in Pxxxx.#LA )

(Cause) The destination label of JMPC is found in LEVELl.#LA or LEVEL3.#LA.

- There is no subprogram Pxxxx. ( xxxx net in LEVELx.#LA )

(Cause) The subprogram to be called by CALL or CALLU cannot be found or is empty.

A3-19
