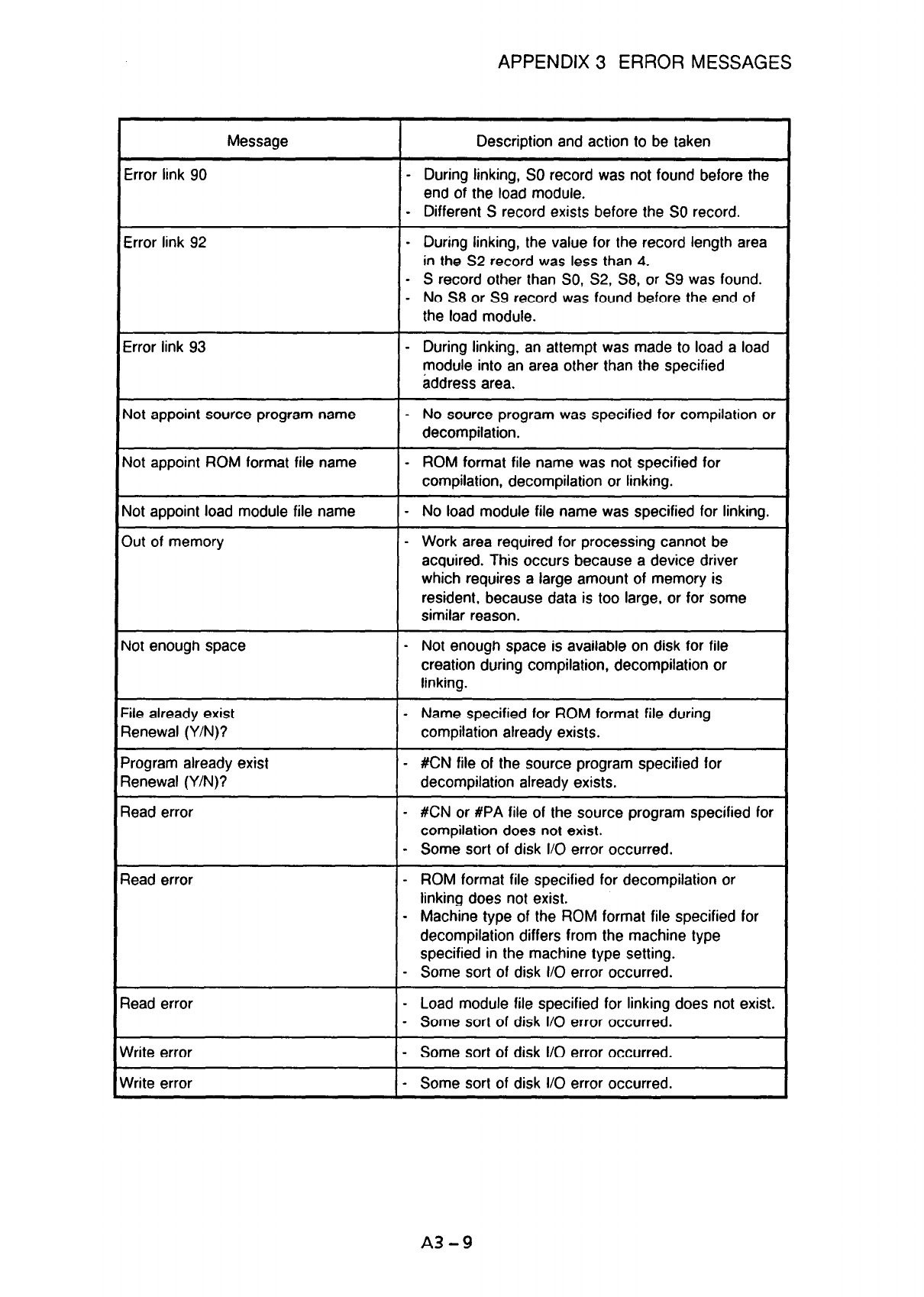

APPENDIX 3 ERROR MESSAGES

Message

Description and action to be taken

Error link 90 - During linking, SO record was not found before the

end of the load module.

- Different S record exists before the SO record.

Error link 92

- During linking, the value for the record length area

in the S2 record was less than 4.

- S record other than SO, S2, S8, or S9 was found.

- No S8 or S9 record was found before the end of

the load module.

irror link 93 - During linking, an attempt was made to load a load

module into an area other than the specified

address area.

\lot appoint source program name

- No source program was specified for compilation or

decompilation.

riot appoint ROM format file name

- ROM format file name was not specified for

compilation, decompilation or linking.

Jot appoint load module file name

Iut of memory

- No load module file name was specified for linking.

- Work area required for processing cannot be

acquired. This occurs because a device driver

which requires a large amount of memory is

resident, because data is too large, or for some

similar reason.

Jot enough space

- Not enough space is available on disk for file

creation during compilation, decompilation or

linking.

:ile already exist

?enewal (Y/N)?

‘rogram already exist

?enewal (Y/N)?

qead error

- Name specified for ROM format file during

compilation already exists.

- #CN file of the source program specified for

decompilation already exists.

- #CN or #PA file of the source program specified for

compilation does not exist.

- Some sort of disk l/O error occurred.

Iead error

lead error

Vrite error

- ROM format file specified for decompilation or

linking does not exist.

- Machine type of the ROM format file specified for

decompilation differs from the machine type

specified in the machine type setting.

- Some sort of disk I/O error occurred.

- Load module file specified for linking does not exist.

- Some sort of disk l/O error occurred.

- Some sort of disk I/O error occurred.

A3-9
