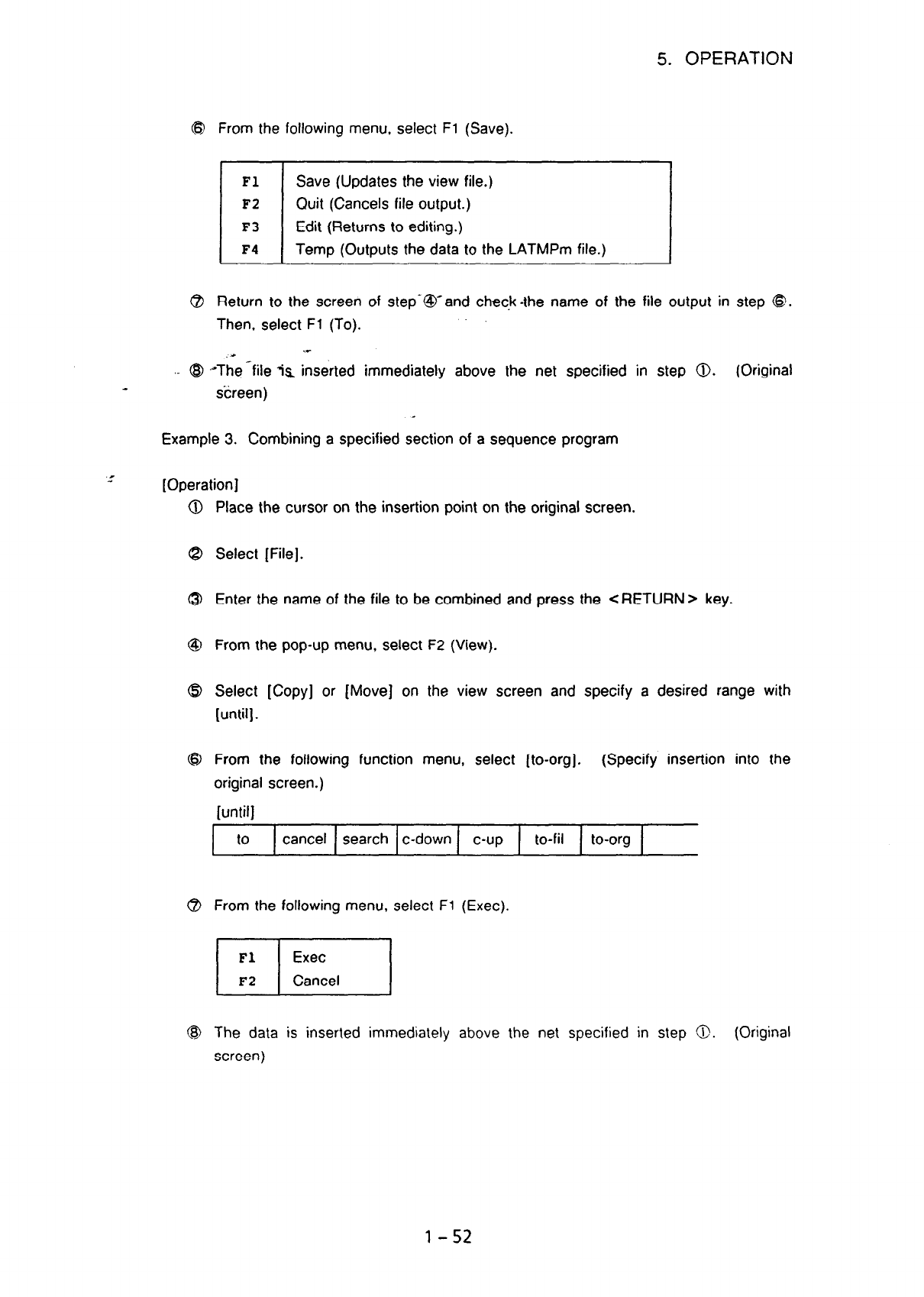

5. OPERATION

@I From the following menu, select Fl (Save).

Temp (Outputs the data to the LATMPm file.)

8 Return to the screen of step-@‘and check -the name of the file output in step @.

Then, select Fl (To).

.- @I -The-file is inserted immediately above the net specified in step 0.

(Original

screen)

Example 3. Combining a specified section of a sequence program

[Operation]

Place the cursor on the insertion point on the original screen.

Select [File].

Enter the name of the file to be combined and press the <RETURN> key.

From the pop-up menu, select F2 (View).

Select [Copy] or [Move] on the view screen and specify a desired range with

(until].

From the following function menu, select [to-org]. (Specify insertion into the

original screen.)

[until]

cancel search c-down c-up

to-fil to-org

From the following menu, select Fl (Exec).

The data is inserted immediately above the net specified in step 0. (Original

screen)
