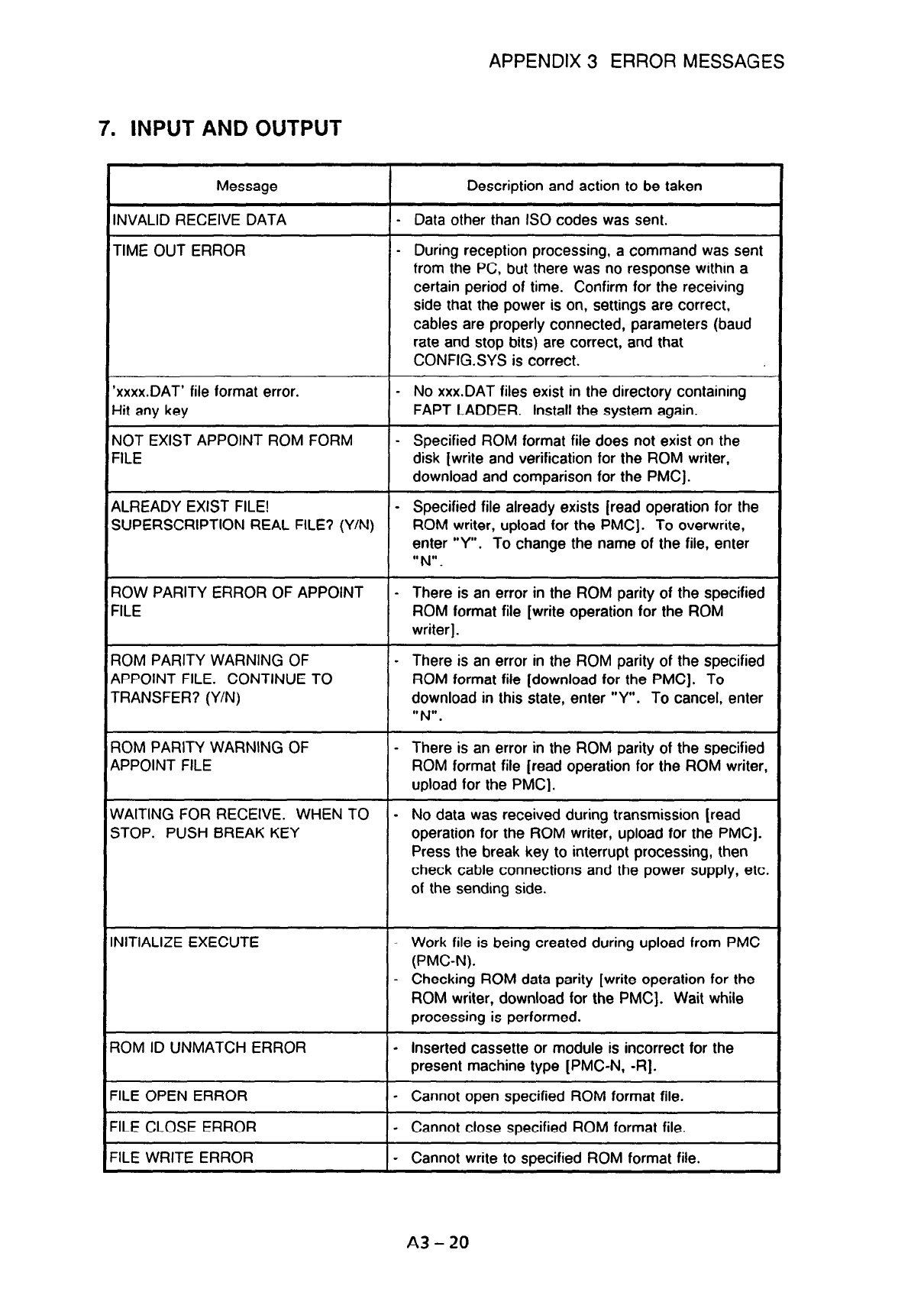

APPENDIX 3 ERROR MESSAGES

7. INPUT AND OUTPUT

Message

INVALID RECEIVE DATA

TIME OUT ERROR

Description and action to be taken

- Data other than IS0 codes was sent.

- During reception processing, a command was sent

from the PC, but there was no response within a

certain period of time. Confirm for the receiving

side that the power is on, settings are correct,

cables are properly connected, parameters (baud

rate and stop bits) are correct, and that

CONFIG.SYS is correct.

‘xxxx.DAT’ file format error.

4it any key

VOT EXIST APPOINT ROM FORM

=lLE

- No xxx.DAT files exist in the directory containing

FAPT LADDER. Install the system again.

- Specified ROM format file does not exist on the

disk [write and verification for the ROM writer,

download and comparison for the PMC].

ALREADY EXIST FILE!

- Specified file already exists [read operation for the

3JPERSCRlPTlON REAL FILE? (Y/N)

ROM writer, upload for the PMC]. To overwrite,

enter “Y”. To change the name of the file, enter

“N”.

3OW PARITY ERROR OF APPOINT

-ILE

- There is an error in the ROM parity of the specified

ROM format file [write operation for the ROM

writer].

3OM PARITY WARNING OF

4PPOINT FILE. CONTINUE TO

TRANSFER? (Y/N)

- There is an error in the ROM parity of the specified

ROM format file [download for the PMC]. To

download in this state, enter “Y”. To cancel, enter

“N”.

3OM PARITY WARNING OF

APPOINT FILE

- There is an error in the ROM parity of the specified

ROM format file [read operation for the ROM writer,

upload for the PMC).

NAITING FOR RECEIVE. WHEN TO

- No data was received during transmission [read

STOP. PUSH BREAK KEY

operation for the ROM writer, upload for the PMC].

Press the break key to interrupt processing, then

check cable connections and the power supply, etc.

of the sending side.

NITIALIZE EXECUTE - Work file is being created during upload from PMC

(PMC-N).

- Checking ROM data parity [write operation for the

ROM writer, download for the PMCJ. Wait while

processing is performed.

4OM ID UNMATCH ERROR

- Inserted cassette or module is incorrect for the

present machine type (PMC-N, 431.

:ILE OPEN ERROR

- Cannot open specified ROM format file.

:ILE CLOSE ERROR

- Cannot close specified ROM format file.

‘ILE WRITE ERROR

- Cannot write to specified ROM format file.

A3-20
