5. OPERATION

@I An error message is displayed if <RETURN > is pressed after conversion. The mnemonic

conversion screen appears when -z SPACE > is pressed after conversion.

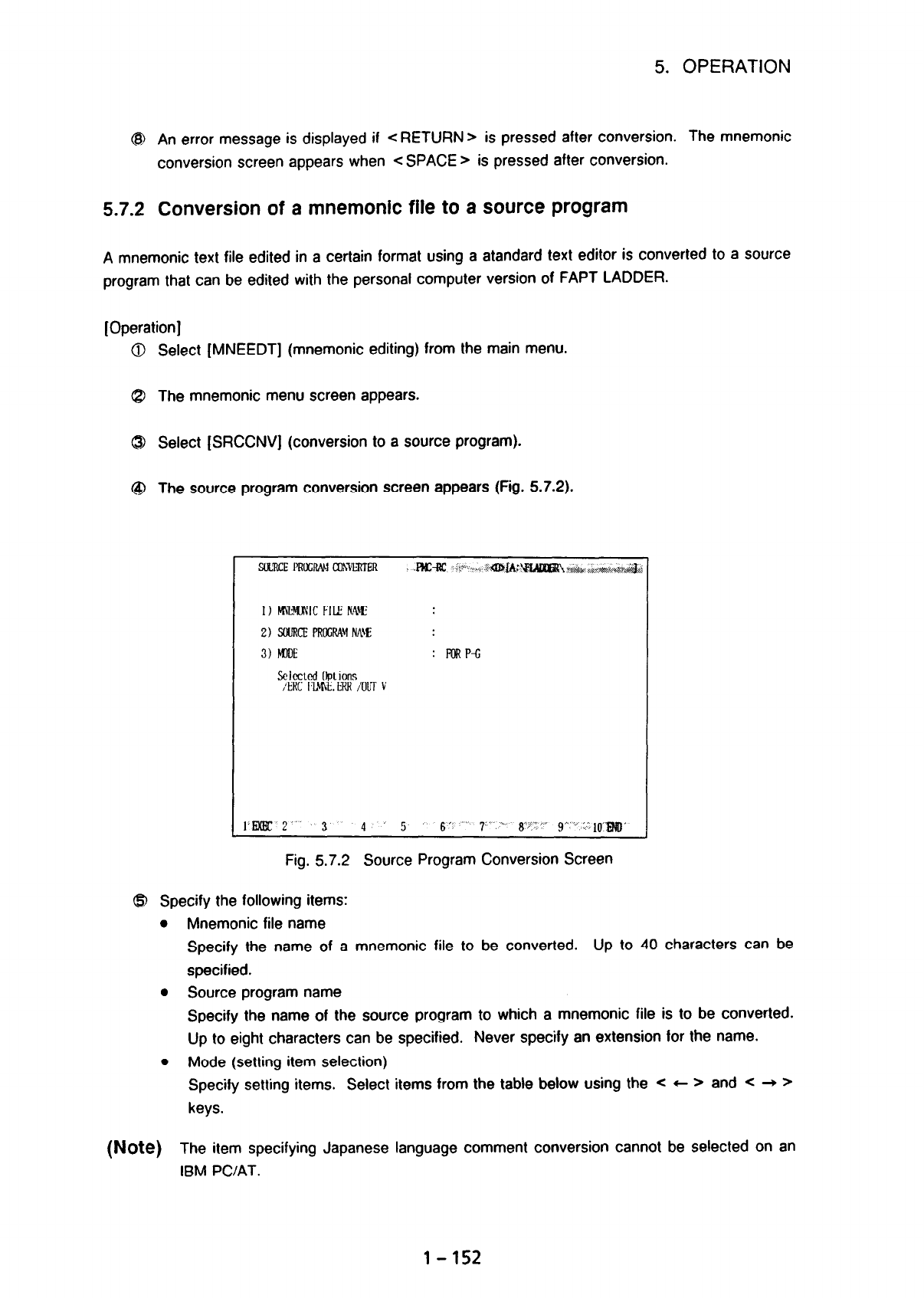

5.7.2 Conversion of a mnemonic file to a source program

A mnemonic text file edited in a certain format using a atandard text editor is converted to a source

program that can be edited with the personal computer version of FAPT LADDER.

[Operation]

0 Select [MNEEDT] (mnemonic editing) from the main menu.

0 The mnemonic menu screen appears.

@ Select (SRCCNV] (conversion to a source program).

@I The source program conversion screen appears (Fig. 5.7.2).

: FoRP4

Fig. 5.7.2 Source Program Conversion Screen

61 Specify the following items:

l Mnemonic file name

Specify the name of a mnemonic file to be converted. Up to 40 characters can be

specified.

0 Source program name

Specify the name of the source program to which a mnemonic file is to be converted.

Up to eight characters can be specified. Never specify an extension for the name.

l Mode (setting item selection)

Specify setting items. Select items from the table below using the < + > and < + >

keys.

(Note) The item specifying Japanese language comment conversion cannot be selected on an

IBM PC/AT.

1-152
